North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Origion:
Zhongshan,China
Package:
Static-Resisted Bag
Warranty:
24 Months
PCB Width:
10mm
Lumen:
1200lm/M
Beam Angle:
120°
Power:
14.4W/M
Emitting Color:
White,Warm White
Voltage:
12/24V
IP Rating:
20
Product Description

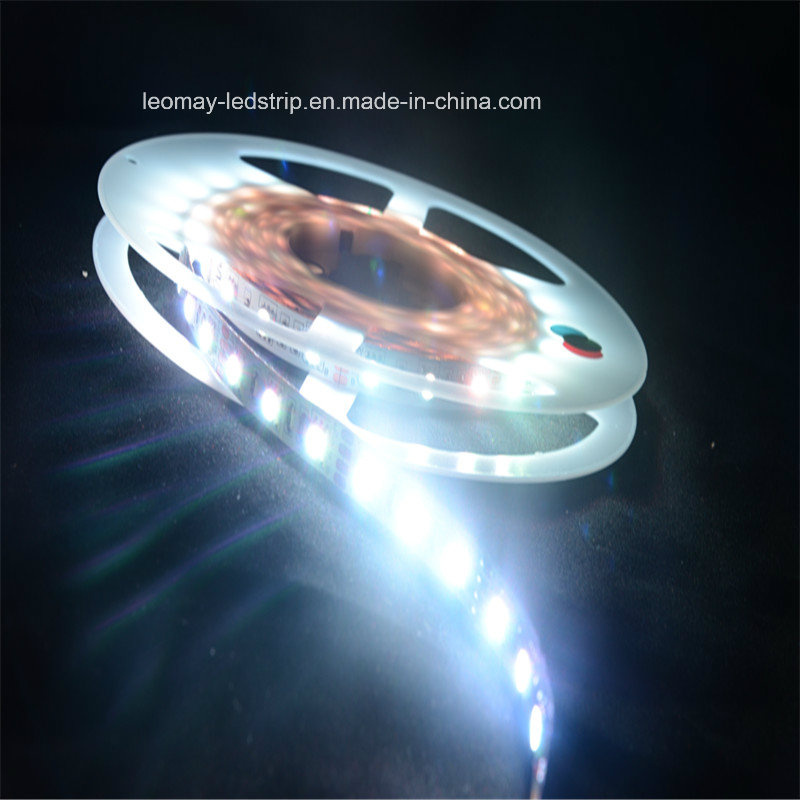

SMD5050 series
Model
LED Quantity
Voltage
Power
Lumen/m
CRI
PCB width
IP rate
color
LM5050-WN30
30leds/m
12/24V
7.2w/m
600lm/m
80
10mm
IP20/IP65/IP67/IP68
red,green,blue,yellow,white,orange
LM5050-WN48
48leds/m
12/24V
11.5w/m
960lm/m
80
10mm
IP20/IP65/IP67/IP68
red,green,blue,yellow,white,orange
LM5050-WN60
60leds/m
12/24V
14.4w/m
1200lm/m
80
10mm
IP20/IP65/IP67/IP68
red,green,blue,yellow,white,orange
LM5050-WN120
120leds/m
12/24V
28.8w/m
2400lm/m
80
18mm
IP20/IP65/IP67/IP68
red,green,blue,yellow,white,orange
LM5050-WN30-RGB
30leds/m
12/24V
7.2w/m
600lm/m
80
10mm
IP20/IP65/IP67/IP68
red,green,blue
LM5050-WN60-RGB
60leds/m
12/24V
14.4w/m
1200lm/m
80
10mm
IP20/IP65/IP67/IP68
red,green,blue
LM5050-WN60-RGBW
60leds/m
12/24V
14.4w/m
1200lm/m
80
12mm
IP20/IP65/IP67/IP68
red,green,blue,orange
LM5050-WN30-HL
30leds/m
12V
7.2w/m
600lm/m
80
10mm
IP20/IP65/IP67/IP68
red,yellow,blue,green,white,orange
LM5050-WN60-HL
60leds/m
12/24V
14.4w/m
1200lm/m
80
10mm
IP20/IP65/IP67/IP68
red,yellow,blue,green,white,orange
LM5050-WN36-CCT
36leds/m
12V
8.64w/m
720lm/m
80
10mm
IP20/IP65/IP67/IP68
white,warm white
Main features: 1CE,RoHS certified with high quality 2,3M tape at backside,easier to install 3, Epistar LED chips with super brightness 4,24 months longer warranty time 5,factory direct sale with most competitive price and shortest delivery lead time 6,CRI is above 85 with best light effect
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.
Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.
Meanwhile, Leomay has advanced LED luminaire manufacturing and test facilities such as Imported Panasonic Auto Soldering and SMD Machines, Programmable Constant Temp and Humidity Testing Machine, IP65 and IP68 Waterproof Production Lines, High and Low Temperature Test Chamber, Optical Testing Devices such as Everfine Integrating Spheres and Distribution Photometer.
Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.
Leomay products are highly recognized and sold very well more that 30 countries and regions, such as Germany, Austria, Swiss, Italy, Hungary, Slovakia, Croatia, Slovakia, Slovenia, Finland, Denmark, Spain, UK, Russia, Canada, US, Costa Rica, Brazil, Argentina, Singapore, Hong Kong, Taiwan etc.
As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
