Brightness:
1, 500nits
Panel Weight:
6kg
Panel Material:
PVC
Mounting System:
Hanging
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Certification:
ETL
Display Function:
Video Display
Application:
Advertising
Scanning Mode:
1/8 Scan
Pixel Configuration:
3in1 SMD
Pixel Pitch:
40mm
Pixel Density:
625DOT/M&Sup2
Average Power Consumption:
90W/M&Sup2
Product Description

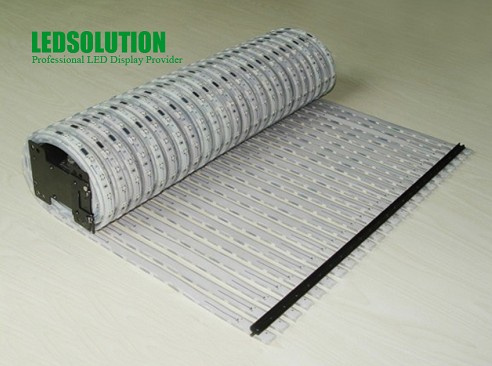

The Flexible Curtain LED Display is LEDSolution's new product, adopt state-of-art outdoor 3in1 SMD, designed for outdoor & indoor event in the day time or in the night.
Flexible LED Display
Features of the flexible curtain LED Display: 1. Light weight: Less than 3.5kg per sqm. 2. Easy remove: More than 20sqm can be packing by only one flight case. 3. Easy install: Just hang panel like you hang curtain. You can install 100sqm within 2hours, and remove It within 2hours. 4. High protection grade: IP 65, can be use for both indoor and outdoor. 5. Application flexible: Assembly to different stage background modeling as you can image, give fresh, amazing feelings to your audience.
LEDSolution LED Display:
Parameter
Unit
Value
Pitch
mm
40
Brightness
nits
1, 500
Color temperature
deg. K
6, 500
Viewing angle Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle Vertical (50% brightness)
deg.
140(-70 ~ +70)
Panel weight
kg
6
Panel width
mm
480
Panel height
mm
3, 200
Panel depth
mm
10
Panel area
sq. m.
1.536
Panel material
PVC
Ingress protection
IP
IP65
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
3in1 SMD
Resolution per panel
12x80
Dot per panel
960
Dot per sq. meter
625
LED per sq. meter
625
Recommended minimum viewing distance
m
30
Recommended best viewing distance
m
40~120
Colors
1, 073.7 millions
Grey scale (linear)
Levels
1, 024 levels per color
Brightness control
Levels
100
Contrast ratio
1, 000: 1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3, 000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts/Panel
192
Input power (typical)
Watts/Panel
76.8
Lifetime (50% brightness)
Hours
≥ 100, 000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
525~530
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI, MPG, AVI, WMV, RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging
