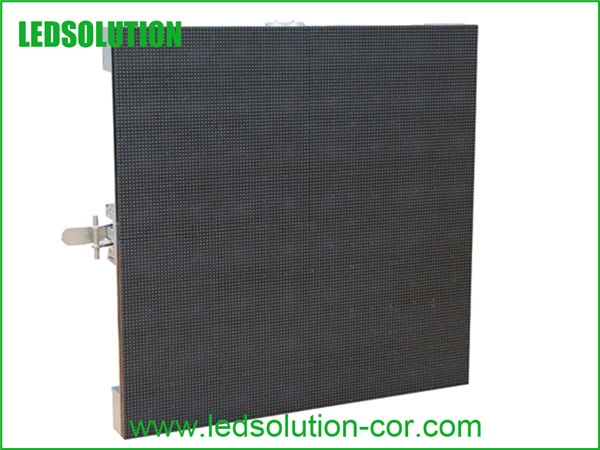

Die-Cast Aluminum LED Display (LS-DI-P4)
Price: |
Negotiable/Square Meter |
Trade Terms: |
FOB |
Min Order: |
1/Square Meter |
Pay Type: |
T/T |
Prod Model: |
LS-DI-P4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brightness: |
1, 600nits |
Color Temperature: |
6500k |
Viewing Angle: |
140/140 |
Panel Weight: |
9kg |
Panel Size: |
480X480mm |
Panel Material: |
Die-Cast Aluminum |
Mounting System: |
Hanging |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Pitch: |
4mm |
Application: |
Stage Performance |
IP Rating: |
IP40 |
Certification: |
CE |
Pixel Configuration: |
3in1 SMD |
Pixel Density: |
62500 Dots/Sqm |
Scanning Mode: |
1/12 Scan |
System Operating Platform: |
Windows7, Vista, XP, 2000, 98 |
Product Description
Die-cast LED display, Die-cast Aluminum LED display, Indoor LED display, LED display, LED Screen, LED Sign:
Features:
Different pitch, same size: 480x480mm
Light Weight: 9kg/panel
Easy assembly & disassembly by hands, without tools
Super smart flatness
Sharp Brightness for outdoor use
Seamless tiled display Up to 1, 073.7 million colors
Long Durability and High Reliability
Low Maintenance Cost
Energy Efficient
Superb Picture Quality
Parameter | LS-DI-P4 | LS-DI-P5 | LS-DI-P6 | LS-DO-P10 | LS-DO-P16 |
Application | Indoor | Indoor | Indoor | Outdoor | Outdoor |
Pitch | 4mm | 5mm | 6mm | 10mm | 16mm |
Brightness | 1, 600 | 1, 600 | 1, 600 | 5, 500 | 6, 000 |
Color temperature | 6500K |
Viewing angle | 140/140 | 130/60 |
Panel weight | 9kg |
Panel Size | 480x480mm |
Panel material | Die-cast Aluminum |
Operating temperature | -30 to +60 |
Humidity operating | 10% ~ 90% |
Pixel configuration | 3in1 SMD | 1R1G1B |
Resolution per panel | 120x120 | 96x96 | 80x80 | 48x48 | 30x30 |
Min viewing distance | 3m | 3.8m | 4.6m | 7.6m | 12m |
Best viewing distance | 4~12m | 5~15m | 6~18m | 10~30m | 16~48m |
Colors | 1, 073.7 million |
Grey scale | 1, 024 levels per color |
Brightness control | 100 levels |
Contrast ratio | 1, 000: 1 |
Processing depth | 16bit |
Video frame rate | 60HZ |
Display refresh rate | 180~3, 000HZ |
Input voltage | 110 to 240V |
Input power frequency | 50 to 60HZ |
Input power (max) | 300W |
Input power (typical) | 120W |
Lifetime | ≥ 100, 000 |
Red wavelength | 620~625 |
Green wavelength | 520~525 |
Blue wavelength | 470~475 |
Multimedia data format | DVI, MPG, AVI, WMV, RM etc. |
Data interconnection | UTP Cat 5/Optical Fiber |
Mounting system | Hanging |
