Prod Model: |
EW-Led wall washer-RGB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
L1120*W130*H82mm |
Power Supply: |
18*3W(3 in 1) |
LED Chip: |
Edison |
Base Material: |
Aluminum Alloy |
Control Mode: |
Independent, DMX, Master/Slave Mode |
Usage: |
Building, Hotel, |
Emitting Color: |
RGB |
Power: |
30W |
IP Rating: |
IP68 |
Diffuser: |
Tempered Glass |
Lifespan: |
50000 hours |
Warranty: |
2 Years |
Certification: |
UL |
Electric Current Type: |
DC |
Beam Angle: |
15,25,30,45,60,90,30*60 Degree |
Input Voltage: |
100-256V AC |
Product Description
Product Description

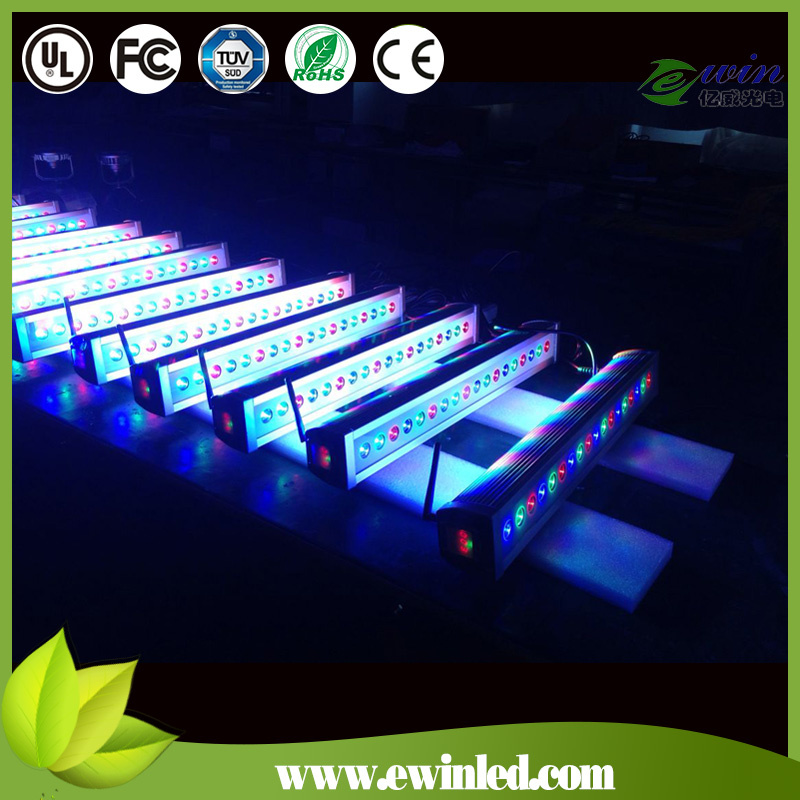

Wireless DMX512 54W 1120mm LED Wall Washer with 2 Years Warranty
Features:
1. No need controller ,build-in DMX512 decoder
2. Simple installation , plug to AC220V only , no need wire to connect to DMX512 controller
3.Three working mode: independent, DMX, Master/Slave mode
4. Can be connect external DMX512 controller
5.High brightness, projecting up to 65 feet
6.Suitable for heavy duty (more than 12 hours per day)
7.High quality lens with 150°rotary angle, flexible to install
Description:
This product is mainly used for decorating and highliging in building frame, garden, etc. It can work in independent mode and DMX mode, which can generate various color changing effects, such as flashig, fading, steady, seven color jumping synchronously etc. DMX256 class gray degree dimmer, DMX programable (thousands of effects available if many lights being connected together).
Physical Specifications | (OEM/ODM: Available) |
Dimension | L580*W130*H82mm |
Housing | Aluminum Alloy + Tempered Glass |
Net weight | 3 kg |
Rotary Angle | 150° |
IP Rating | IP65(suitable for dry, wet, and damp environment) |
Electrical Specifications | |
Lighting Source | 3W LED |
LED Quantity | 18 |
Operation Temperature | -20°C~40°C(-4°F~104°F) |
Input Voltage | 100-256V AC |
Power Consumption | 54W |
Optical Specification | |
Chip type | Edison |
Beam Angle | 15 ° ,25 ° ,30°,45°,60°,90°,30 °*60 ° |
Color | RGB |
1 | 30 meters |
Packaging Details: | 54w LED Wall Washer is packed as follows 1pc in a inner box with foam (size: 895*145*170mm) 4 inner boxes in a master carton(size: 915*310*375mm) 300 boxes (1200 pcs) in a 20 feet container 600 boxes (2400 pcs) in a 40 feet contanier |
---|
Delivery Detail: | 3 days for samples; 7-15 days for our 18w LED Wall Washer |
---|
Control System:
1. Independent mode
1) Build-in 12 programs optional
2) 1-9 class gray degree dimmer
2. DMX mode
1) Support the international standard DMX 512 signal
2) (R, G, B) 3 channels are available
3) DMX 256 class gray degree dimmer.
4) DMX programmable
3. Master-Slave mode
Set any fixture's DMX address of master as 001, others are set as slave
(address can be anyone except 001), change function on 001, all the lights will work synchronously.
Application:
This product is mainly used for decorating and highlighting in building frame, garden, ect, which can generate various of color changing effects, such as flashing, fading, steady, seven color jumping synchronously ect.
1. Individual, historical buildings exterior lighting
2. Outside building and indoor local lighting
3. Landscape lighting, advertising lighting.
4. Health, culture and other specialized facilities lighting
5. Bars, dance halls and other entertainment atmosphere lighting
