North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size:
0.96mx0.32m
Brightness:
7000nit
Resolution:
192X64
Tube Chip Color:
Full Color
IP Rating:
IP65
Display Function:
Video Display
Scanning Mode:
Static Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
RoHS
Pixel Pitch:
5mm
Pixel Configuration:
3in1 SMD
Average Power Consumption:
480W
Pixel Density:
40000 Pixels/Sqm
Product Description

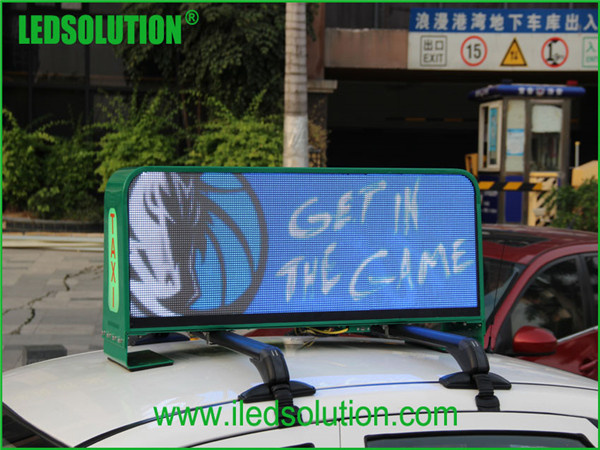

Features of LEDSOLUTION Taxi top led displays:
1. Highly waterproof, IP65/65
2. Wide viewing angle: 140/140 degree
3. Stable working performance
4. Easy and Flexible installation
5. Effecient advertising tool for taxi
Parameter
Value
Pitch
5mm
Brightness
7000nits
Color temperature
6,500 deg. K
Viewing angle – Horizontal (50% brightness)
140(-70 ~ +70) deg.
Viewing angle –Vertical (50% brightness)
140(-70 ~ +70) deg.
Panel weight
19kg
Panel size
W960mm*H320mm
Housing size
W990mm*H450mm*D250
Panel design
Double face
Panel material
Aluminum
Panel color
Silver/yellow/cutomized
Weather protection
IP65/65
Operating temperature range
-30 to +60 deg. C
Humidity operating
RH 10% ~ 90%
Pixel type and configuration
3in1 SMD
Resolution per panel
192*64pixel
Dot per panel
12,288
Dot per sq. meter
40,000
LED per sq. meter
40,000
Recommended minimum viewing distance
3.8m
Recommended best viewing distance
4~12m
Colors
281 trillion
Grey scale (linear)
65,536 levels per color
Contrast ratio
1,000:1
Processing depth
16 bit
Video frame rate
60 Hertz
Display refresh rate
180~3,000 Hertz
Input voltage (nominal)
9~36V
Input power frequency
50 to 60 Hertz
Input power (max)
1,200W
Input power (typical)
480W
Lifetime (50% brightness)
≥100,000
Red wavelength (dominant)
620~625 nm
Green wavelength (dominant)
520~525 nm
Blue wavelength (dominant)
470~475 nm
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Controller
Asynchronous
Data interconnection
USB/3G wireless
Mounting system
Fixed with bolts
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
