North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
180W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
CCC
Pixel Pitch:
6.67mm
Pixel Density:
22500DOT/
Product Description

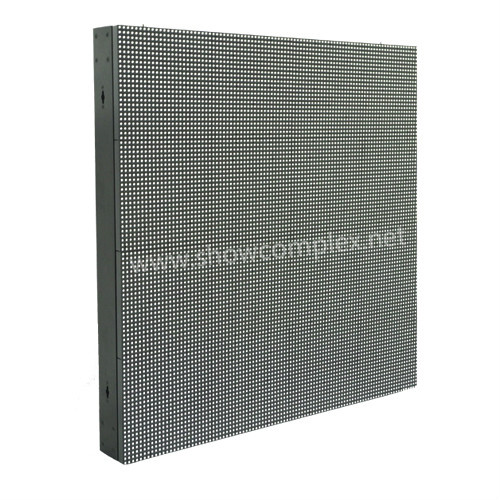

Showcomplex SC-BOF P6.67 Outdoor Fixed LED DisplayDie-CastingAluminum Cabinet Full Color High Refresh
1.Broad viewing angle; 2. Frame-free installation; 3. Front and rear side maintenance. 4. High brightness, visible even with direct sunshine; 5. High waterproof and dustproof, IP65 both front and rear side 6. Having good lightening accordance and no mosaic; 7. Having large viewing angle: Getting vivid effect within any position of the viewing range; 8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
Features: Low power consumption and fine heat release,Safe and reliable operation ensured by stable signal and power supply Uniform color and high contrast ratio,bringing up fresh and natural image Super wide viewing angle increasing its value by covering more audience High protection grade of IP65 achieved by patented mask desin wit waterproof and dustproof function Parameters:
Model
SC-BOF 6.67 Outdoor Rental LED Display
Pixel pitch
6.67mm
LED Encapsulation
3535
Pitch Composing
SMD 3 IN 1
Module Size
320mm*160mm
Module Resolution
48dot*24dot
Cabinet Size
640mm * 640mm
Cabinet Resolution
96dot*96dot
Density
22500dot/
Brightness
≥7000nits
Brightness Adjustment
Auto 256 level
Viewing Distance
>6M
View Angle(H)
160°
View Angle(V)
140°
Max Consumption
800W/
Brightness Adjustment
Manual/Auto/Programmable
Shenzhen Showcomplex Technology Co. Ltd, specializes in LED products R & D, manufacturing, sales and services. The company headquarters is located in the national semiconductor lighting industry R & D base - Shenzhen. Company dedicated to provide customers with high quality products and services, the application of LED high performance.
Shenzhen Showcomplex Technology Co. Ltd offers: LED Curtain Solution, Rental LED Screen Solution, Perimeter LED Screen Solution, Fixed Installation LED Screen Solution.
Shenzhen Showcomplex Technology Co. Ltd the main products are: A full range of LED indoor and outdoor full-color, fixed screen, LED screen, full-color indoor outside rental. The display has a pixel such as 1.6, 3.9, 6.25, 10mm different spacing, widely used in finance, sports, weather, military, transportation, advertising, radio and television, communications and other indoor, outside the media release.
Shenzhen Showcomplex Technology Co. Ltd "product oriented", to adhere to the independent research and development of the characteristic line of products, depending on the product quality of life for the enterprise, a series of reliability test company from the beginning of each link control in the production process to the final product, these tests will cover: Reliability test evenness, temperature, power, the brightness, color, shockproof performance, protection of all the important performance, company system management at the ISO 9001: 2000 international quality, has passed the UL, CE, ROSH, FCC, CCC certification, the company products are exported to Britain, France, USA, Germany, Iran, Singapore, Malaysia, Mexico and other 40 countries and area.
