North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
CCC
Pixel Pitch:
1.9mm
Pixel Density:
360000
Product Description
1.High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments. 2. No mosaic due to excellent flatness and nice uniformity of light-emitting. 3.Wide viewing angles and the horizontal angle can reach 120° , The images effect will not change largely in the range. 4. High density make the images softer and vivider. 5. Single-lamp maintenance with low cost. 6.Good heat dissipation capability because of the unique design of vent fan (liking shutter). 7. Environmental-friendly and energy-saving.
Features:
High Precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display Color uniformity, high contrast, clear picture Ultra thin body, easy to transport and loading and unloading High stability, high reliability, long service life Support for both front and back maintenance, easy installation Parameters:
Model

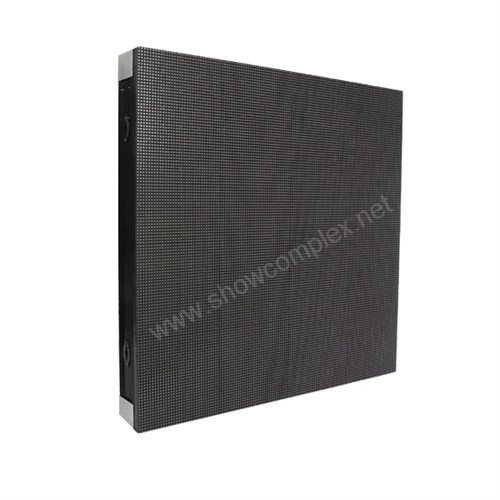

SC-AIF1.9 Indoor Fixed LED Display
Pixel pitch
1.9mm
LED Encapsulation
1515
Pitch Composing
1R1G1B
Module Size
200mm*150mm
Module Resolution
120dot*90dot
Cabinet Size
400mm * 300mm * 65mm
Cabinet Resolution
240dot*180dot
Density
360000dot/
Brightness
800nits
Brightness Adjustment
Auto 256 level
Viewing Distance
2.5m-10m
View Angle(H)
150°
View Angle(V)
140°
Max Consumption
360W/
Driving Method
Constant Driving
Brightness Adjustment
Manual/Auto/Programmable
Scan Mode
1/16 Scan
MTBF
10000hours
Lifespan
100000hours
Frame Frequency
60Hz
Working Temperature
-20ºC+50ºC
Humidity Range
10% ~ 90%
Voltage
110 ~ 240V
IP Ranking
Indoor use
Blind Spotrate
<0.0003
Signal Type
AV,S-Video,VGA,DVI,HDMI,SDI,DP
Tranmission Distance
UTP:100 meters; single-mode fiber: 10 km
Shenzhen Showcomplex Technology Co. Ltd, specializes in LED products R & D, manufacturing, sales and services. The company headquarters is located in the national semiconductor lighting industry R & D base - Shenzhen. Company dedicated to provide customers with high quality products and services, the application of LED high performance.
Shenzhen Showcomplex Technology Co. Ltd offers: LED Curtain Solution, Rental LED Screen Solution, Perimeter LED Screen Solution, Fixed Installation LED Screen Solution.
Shenzhen Showcomplex Technology Co. Ltd the main products are: A full range of LED indoor and outdoor full-color, fixed screen, LED screen, full-color indoor outside rental. The display has a pixel such as 1.6, 3.9, 6.25, 10mm different spacing, widely used in finance, sports, weather, military, transportation, advertising, radio and television, communications and other indoor, outside the media release.
Shenzhen Showcomplex Technology Co. Ltd "product oriented", to adhere to the independent research and development of the characteristic line of products, depending on the product quality of life for the enterprise, a series of reliability test company from the beginning of each link control in the production process to the final product, these tests will cover: Reliability test evenness, temperature, power, the brightness, color, shockproof performance, protection of all the important performance, company system management at the ISO 9001: 2000 international quality, has passed the UL, CE, ROSH, FCC, CCC certification, the company products are exported to Britain, France, USA, Germany, Iran, Singapore, Malaysia, Mexico and other 40 countries and area.
