Tube Chip Color:
Full Color
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Display Type:
LED Video Display
Application:
Stage Performance
Certification:
CCC
IP Rating:
IP31
Pixel Pitch:
2.5mm
Pixel Density:
160000
Scanning Mode:
1/32
Product Description
1.Clear picture without flicker and distortion 2.Low Consumption , Stable Performance ,Highly Durable 3.Within one year after consignment from factory. 4.Wide Viewing Angle, Seamless Splicing ,High-definition ,Mute Design ,High Contrast
Features:
High Precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display Color uniformity, high contrast, clear picture Ultra thin body, easy to transport and loading and unloading High stability, high reliability, long service life Support for both front and back maintenance, easy installation Parameters:
Model

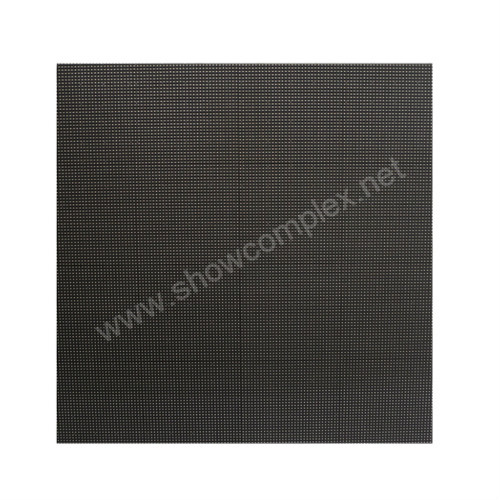

SC-AIR 2.5 Indoor Rental LED Display
Pixel pitch
2.5mm
LED Encapsulation
2121
Pitch Composing
SMD 3 In 1
Module Size
240mm*240mm
Module Resolution
96dot*96dot
Cabinet Size
480mm * 480mm * 65mm
Cabinet Resolution
192dot*192dot
Density
160000dot/
Brightness
≥1200nits
Brightness Adjustment
Auto 256 level
Viewing Distance
2.5m-10m
View Angle(H)
150°
View Angle(V)
140°
Max Consumption
300W/
Brightness Adjustment
Manual/Auto/Programmable
Driving Method
1/32 Scan Constant Driving
MTBF
50000hours
Lifespan
100000hours
Frame Frequency
60Hz
Working Temperature
-20ºC+50ºC
Humidity Range
10% ~ 90%
Voltage
110 ~ 240V
IP Ranking
IP31
Blind Spotrate
<0.0003
Signal Type
AV,S-Video,VGA,DVI,HDMI,SDI,DP
Tranmission Distance
UTP:100 meters; single-mode fiber: 10 km
Shenzhen Showcomplex Technology Co. Ltd, specializes in LED products R & D, manufacturing, sales and services. The company headquarters is located in the national semiconductor lighting industry R & D base - Shenzhen. Company dedicated to provide customers with high quality products and services, the application of LED high performance.
Shenzhen Showcomplex Technology Co. Ltd offers: LED Curtain Solution, Rental LED Screen Solution, Perimeter LED Screen Solution, Fixed Installation LED Screen Solution.
Shenzhen Showcomplex Technology Co. Ltd the main products are: A full range of LED indoor and outdoor full-color, fixed screen, LED screen, full-color indoor outside rental. The display has a pixel such as 1.6, 3.9, 6.25, 10mm different spacing, widely used in finance, sports, weather, military, transportation, advertising, radio and television, communications and other indoor, outside the media release.
Shenzhen Showcomplex Technology Co. Ltd "product oriented", to adhere to the independent research and development of the characteristic line of products, depending on the product quality of life for the enterprise, a series of reliability test company from the beginning of each link control in the production process to the final product, these tests will cover: Reliability test evenness, temperature, power, the brightness, color, shockproof performance, protection of all the important performance, company system management at the ISO 9001: 2000 international quality, has passed the UL, CE, ROSH, FCC, CCC certification, the company products are exported to Britain, France, USA, Germany, Iran, Singapore, Malaysia, Mexico and other 40 countries and area.
