Cabinet Siez : 640 Mm X 640mm:
Die Cast Rental Cabinet
Easy Installtion Lock:
15 Kg/ Cabinet
6500 CD:
IP Grade:IP65/IP54
Compliant Standardccc(CE)Rosh:
Lifetime(H):More Than 50000
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
CCC
Pixel Pitch:
10mm
Display Function:
Video Display
Application:
Stage Performance
Scanning Mode:
Static Scan
Pixel Density:
10000 dot / m²
Average Power Consumption:
220W / m²
Product Description
P10 mm 640 MM X 640MM Die cast Alumium rental / fix cabinet
LED Display Application

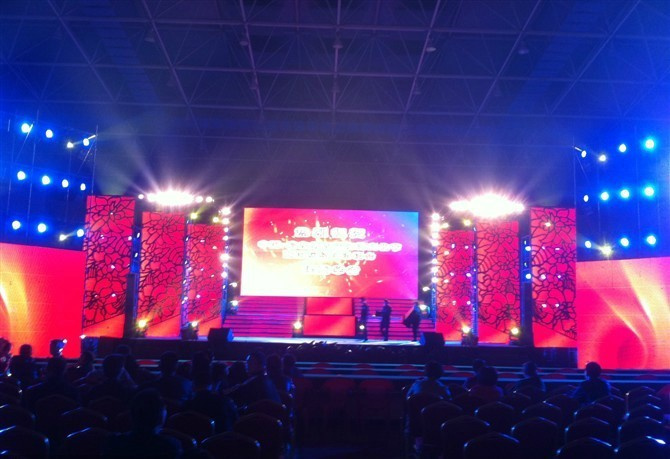

Artistic performance,exhibition,wedding ceremony and other activities occasions
P16 / P8 / P10 LED display Detail specification
Parameters
Outdoor Die-casting LED Display Series ( 640 MM X 640MM )
Pixel Pitch (mm)
16mm
8mm
10mm
Pixel density(pix/m2)
4906
15625
10000
LED Type
Dip346
3535
3535
Viewing Angle
X,Y140°
X,Y140°
X,Y140°
Brightness(nits)
≥6500
≥5000
≥5000
Drive Method
constant static
1/5
1/2
Color Depth
65536
Refresh Rate(Hz)
1920
1920
1920
Module Size (mm)
320×160×16
Cabinet Size(mm)
640×640×80
Cabinet Material
aluminum
Cabinet weight(kg)
12
17
17
Voltage
200-240V
Average.power(W/m2)
230
230
230
Max.power (W/m2)
700
700
700
IP Grade
IP65/IP54
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/ humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CCC(CE)Rosh

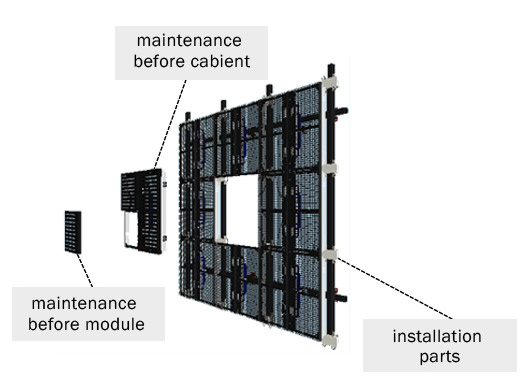

LED Display Assemble back view
