| Prod Model: |
P1803 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
Product Description

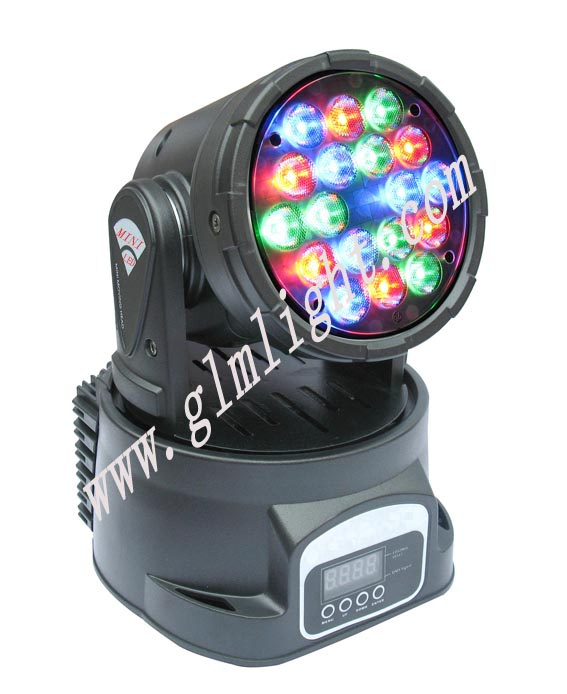

4 or 12 channel DMX-512 LED moving yoke color wash;
RGB color mixing;
Variable electronic strobe;
Variable electronic dimmer (0_100%);
Vector speed channel for pan/tilt, RGB color mixing and color macros;
Built-in movement macros via DMX;
Built-in automated programs via master/slave(fast and slow);
Built-in sound activated programs via master/slave;
User-selectable basic or advanced operating modes;
User-selectable pan/tilt ranges;
Pan: 540° , 360° , 180°
Tilt: 180° , 180° , 90° ;
Reset to factory settings option;
Pan/tilt invert option;
Light Source: 3W*6R/ 3W*6G/ 3W*6B 50, 000hrs;
1W*6R/ 1W*6G/ 1W*6B 50, 000hrs;
AC Power: Switchable 100_240V, 50_60Hz;
N. W: 8.3lbs (3.8Kg);
Size: 180× 170× 260mm
|
Channels |
|
Channel |
Function |
|
1 |
Pan |
|
2 |
Pan Fine |
|
3 |
Tilt |
|
4 |
Tilt Fine |
|
5 |
Vector Speed: (Pan/Tilt) |
|
6 |
Dimmer/Strobe |
|
7 |
Red |
|
8 |
Green |
|
9 |
Blue |
|
10 |
Color Macros |
|
11 |
Vector Speed(Color) |
|
12 |
Movement Macros |
GLM Stage Light & Sound Co., Ltd is a professional manufacturer of LED STAGE LIGHTING(moving head), eg: 60W Spot, 108W Wash, 54W Wash, 15W Spot, 30W Spot, 56W Wash, RGBW, RGB etc. All of products approved by CE and RoHS certification.
