| Prod Model: |
G0410 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Certification: |
RoHS |
| Light Source: |
LED |
| Control Channel: |
12CH |
Product Description
Function

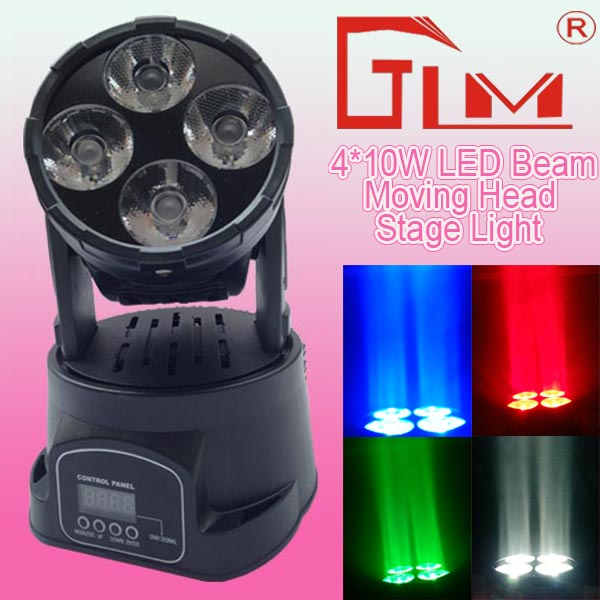

4or12 Channels DMX-512 LED moving yoke color wash
RGBW color mixing
Variable electronic strobe
Variable electronic dimmer (0 100%)
Vector speed channel for pan/tilt, RGBW color mixing and color macros
Built-in movements via DMX
Built-in automated programs via master/slave (fast and slow)
Built-in sound activated programs via master/slave
User-selectable basic or advanced operating modes
Ser-selectable pan/tilt ranges
Pan: 540° , 360° , 180°
Tilt: 180° , 180° , 90°
Reset to factory settings option
Specification:
. AC power: 100V-240V 50-60Hz
. Beam Angle: 7.5°
Product Size: 180*170*260mm N. W: 3.8KG
Packing Size: 50*31*26 cm (2pcs in one outer box) G. W: 8KG
Warranty: 1-year Limited Warranty
|
DMX CHANNEL |
|
Channel Function |
|
1 pan |
|
2 pan fine |
|
3 Tilt |
|
4 Tilt |
|
5 X/Y speed |
|
6 Dimmer strobe |
|
7 Red |
|
8 Green |
|
9 Blue |
|
10 White |
|
11 Color Macros |
|
12 Movement Macros |
GLM Stage Light & Sound Co., Ltd is a professional manufacturer of LED STAGE LIGHTING(moving head), eg: 60W Spot, 108W Wash, 54W Wash, 15W Spot, 30W Spot, 56W Wash, RGBW, RGB etc. All of products approved by CE and RoHS certification.
