Pixel Pitch:
4mm
Moddule Size:
256mm X 128mm
LED Type:
SMD2020
Driver Method:
1/16
IP Grade:
IP43
Warranty Time:
3 Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Certification:
CCC
Pixel Configuration:
1R,1G,1B
Application:
Shopping Guide
IP Rating:
IP43
System Operating Platform:
WIN XP
Pixel Density:
62500
Product Description
Fix installation Indoor LED Display cabinet Indoor LED Display detail specification
Item
Indoor Fixed LED display Series
Pixel Pitch(mm)
4mm
5mm
6mm
7.62mm
10mm
Pixel density(pix/m2)
62500
40000
27777
17223
17223
LED Type
2020
3528
3528
3528
3528
Viewing Angle
H:140°,V:140°
Color Depth(nits)
1500
1500
1500
1500
1500
Drive Method
1/16
1/16
1/16
1/16
1/16
Color Depth
16384
Refresh Rate(Hz)
1200
1600
1600
1600
1600
Module Size(mm)
256X128x13
160X160x13
192X192x13
244X122x13
244X122x13

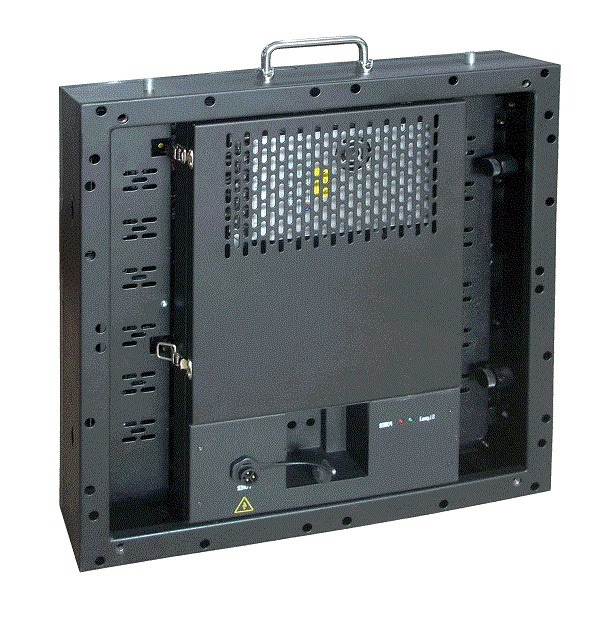

Cabinet Size(mm)
512X512X93
640X640X93
768X768X93
732X732X93
732X732X93
Cabinet Material
Iron
Iron
Iron
Iron
Iron
Cabinet weight(kg)
14.5
23
32
30
30
Voltage
110/220V
Average.power(W/m2)
270
160
130
120
120
Max.power(W/m2)
800
480
380
350
350
IP Grade
IP43
Operating temperature/humidity
temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity
temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)
≥50000
Compliant Standard
CE,FCC,RoHS ,CCC

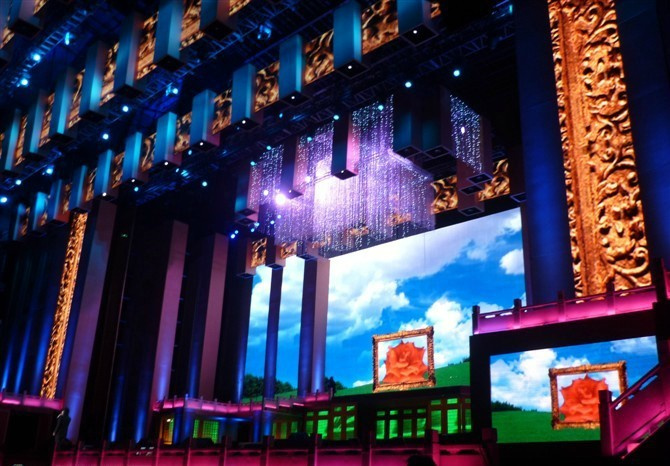

LED Display application :
Bar, playhouse theatre, multifunctional exhibition hall, cafe shop, hotel, stage performances, concert halls, commercial buildings, airports, railway stations, shopping malls and other places.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
