| Prod Model: |
LC-L001A-1-45 led street light |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
LED Street Light 45W |
| LED Chip: |
COB Bridgelux Chip |
| Luminous Efficiency: |
>95% |
| LED Luminous Efficiency: |
110lm/W |
| Size: |
L442*W340*H115mm |
| Driver: |
Meanwell |
| Lifespan: |
50,000hours |
| Warranty: |
3years |
| Property: |
Modular Design |
| Certificate: |
CE RoHS SAA |
| IP Rating: |
IP67 |
| Certification: |
UL |
| Color Temperature: |
Pure White |
| LED Chips Brand: |
Bridgelux |
| Lamp Body Material: |
Aluminum |
| With Light Source: |
With Light Source |
| Application: |
Garden |
| Input Voltage: |
AC85-265V; |
| Power: |
45W |
| Power Supply: |
AC or DC |
Product Description

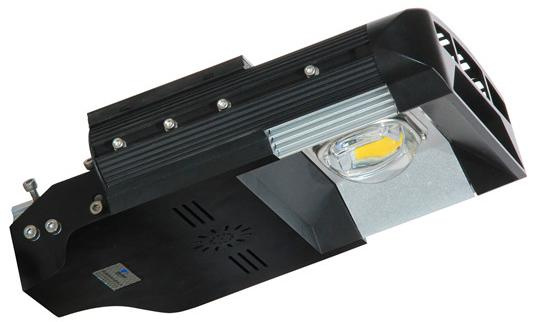

The Newest Modular Design 45W High Lumen led street light with good quality and competitive price
Basic Specifications1.Light Source: 45w bridgelux
2.Power: 45W
3.Working Voltage: AC110V/AC220V
4.Lumens WW:4500lm
CW:4450lm
5.Beam Angle: 130°
6.Ra>80
7.Power Factory(PF): 0.9
8.Light Efficiency: 100lm/W
9.Gross Weight: 7kg
10.Dimension:442*340*115mm
11.Shell material:Magnesium&Aluminum alloy material
12.Cover material:PC cover
Advantage of 45w led street light1.Small size,light weight,save more freight cost.
2. New cooling plastic surface ring,low temperature,good performance.
3. Internal driver led round dimmable downlight to replace traditional lightings with different size.
4. Magnesium&Aluminum alloy material dissipate heat faster than aluminum material
5.Color Temperature (CCT)2800-3200K,3800-4200K,5750-6150K
Applications of 45w led street light
1. Landscape 45w led street light
2. Architectural Lighting
3. Display Case Accent
4. Artwork lighting
5. Mood Lighting/General Lighting
6. Amusement Park Accent
7. Commercial Lighting, house lighting
8.Hotels
Trade terms:
1. Payment term: T/T in advance, Western Union,L/C.
2. EXW/FOB
3. Production time: 3-15days
4. MOQ: 100pc
5.Package & Delivery:
6.Package Detailes: 520*215*425mm 50pcs/ctn 8kgs
Model | LC-L001A-1-45 | LC-L001A-1-55 | LC-L001A-1-65 |
| Power | 45W | 55W | 65W |
| LED Module quantity | 1 | 1 | 1 |
| Whole light efficiency | 110lm/W |
| Lumen | 4950lm | 6050lm | 7150lm |
| Color temperature | 2500K-6500K |
| Power efficiency | 92% |
| Power factor | 0.98 |
| Total harmonic distortion | <15% |
| Working temperature | -40~50 degree |
| Humidity | 10%-95% |
| IP rating | IP67 |
| Net weight | 7kg |
| Chip | Bridgelux |
| Driver | Meanwell |
| Material | Aluminum alloy |
| Color | Black or silver |
| Guarantee time | 1-3 years |
| Product size | L442*W340*H115mm |
| Packing size | L500*W390*H185mm |
