Input Voltage:
AC100~240V, 50~60Hz
LED Source:
10W High Power LED
Color:
Red, Green, Blue, White 4 in 1 Full Colors
Color Effect:
Real Aura LED Changing Effect
Zoom Angle:
10°- 60° (Standard Angle);
Channel:
12 Channel Simple Mode, 16 Channels Standard Mode;
Display:
Friendly LCD Display
IP:
IP20
Shell Material:
Aluminum Alloy Composites Plastic
Net Weight:
9kg
Light Source:
LED
Material:
Aluminum Alloy
Control Channel:
16CH
Strobe:
Adjustable Speed Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP20
Certification:
RoHS
Voltage:
220V
Emitting Color:
RGBW
Product Description

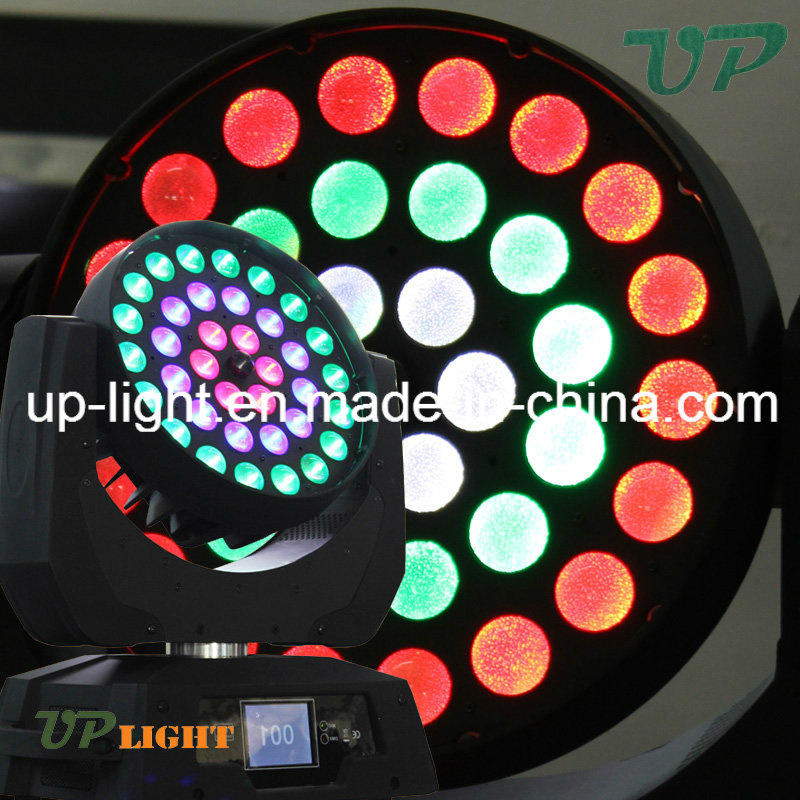

New 36PCS*10W 4in1 Aura LED Moving Head Light
Aura Function
Color Effect Input voltage: AC100~240V , 50~60Hz; Rated Power: 400W; LED lamp: 10W high power LED with long life 80000-100000 hours, high luminous efficiency, no radiation and low power consumption etc; LED Qty: 36 LEDS with Red, Green, Blue, White 4 in 1; LED Lamp powr supply: Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection; LED drive mode: Adopt static constant current drive mode with high precision and non-flicker (400HZ); Control Mode: DMX512 signal 3-pins connection control, master-salve control or sound control with self-programming mode, self-running mode, extral control mode; Channel: 12ch, 16ch two channel modes; Color: Red, Green, Blue, White 4 in 1 full colors which is the most favorite color mixing way for lighting technician; Lens: High optical transmission acrylic lens; Zoom angle: 10°- 60° (standard angle); Dimmer: 0~100% linear dimmer; Strobe: Multi-function strobe effects from 1 to 25 times per second with the soft light function; Material: Aluminum alloy plus plastic; Maximum working terperature: 45°C Maximum surface temperature: 60 °C Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert, DJ effect, disco effect, club effect, party effect etc; Package size: 425×295×395mm Gross weight: 9.5kg
Production
20 Channels
36 Channels
Function
CH 1
CH 1
Pan
CH 2
Pan fine
CH 2
CH 3
Tilt
CH 4
Tilt fine
CH 3
CH 5
Pan/filt speed
CH 4
CH 6
Marco function
CH 5
CH 7
Red 1
CH 8
Red 1 fine
CH6
CH 9
Green 1
CH 10
Green 1 fine
CH7
CH 11
Blue 1
CH 12
Blue 1 fine
CH8
CH 13
White 1
CH 14
White 1 fine
CH9
CH 15
Red 2
CH 16
Red 2 fine
CH10
CH 17
Green 2
CH 18
Green 2 fine
CH11
CH 19
Blue 2
CH 20
Blue 2 fine
CH12
CH 21
White 2
CH 22
White 2 fine
CH13
CH 23
Red 3
CH 24
Red 3 fine
CH14
CH 25
Green 3
CH 26
Green 3 fine
CH15
CH 27
Blue 3
CH 28
Blue 3 fine
CH16
CH 29
White 3
CH 30
White 3 fine
CH 31
Color temperature 3200~10000k
CH17
CH 32
Color free integration
CH18
CH 33
Zoom
CH 34
Zoom fine
CH19
CH 35
Strobe
CH20
CH 36
RGBW Dimming
