Brightness:
6500nits
Viewing Angle:
140/140
Diameter:
1,000nits
Panel Area:
0.4096sq. M.
Material:
Steel
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
10mm
Display Type:
LED Video Display
Application:
Hotels
Certification:
UL
Pixel Configuration:
3528SMD
IP Rating:
IP23
Product Description
Company Introduction LEDSOLUTION is a professional manufacturer of LED Display. We dedicate to supply high quality products with competitive prices. Our products and services are well-received around the world. It's our mission to satisfy evevry customer's expectation to the greatest extend.
To choose LEDSOLUTION is to choose perfect LED solutions!

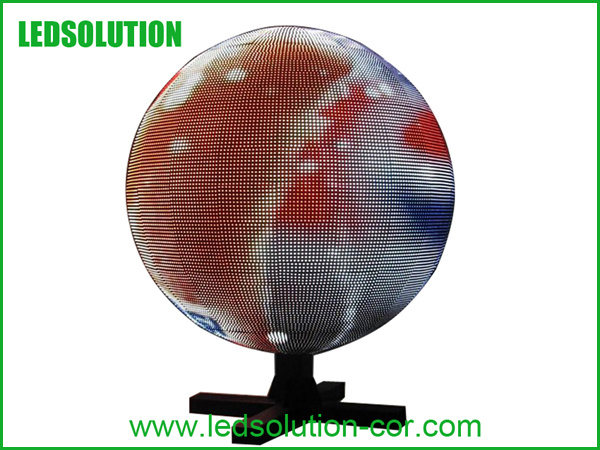

Product Description LED screen market is changing greatly, from traditional advertising display to irregular shape display. Expect the traditional function of showing information, LED display also updated the requirements on outside looking, which made it be more suitable for various occasion. P10 indoor LED ball display is born for stage rental use. It has 360 degree viewing angle, perfect playing effect, precise workmanship. You are worth it!
Features 1. Viewing angle: 360 degree 2. Frame structure: Light, convenient, firm 3. Ball's diameter: Customized as requested 4. Good heat dissipation
Parameter
Unit
Value
Pitch
mm
10
Brightness
nits
1,800
Color temperature
deg. K
6,500
Viewing angle – Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle – Vertical (50% brightness)
deg.
140(-70 ~ +70)
Net Weight
kg
70
Diameter
mm
1,000
Panel area
sq. m.
0.4096
Operating temperature range
deg. C
-30 to +60
Material
Steel
Ingress protection (front/rear)
IP23
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
3528 SMD
Dot per sq. meter
10,000
LED per sq. meter
10,000
Recommended minimum viewing distance
m
7.6
Recommended best viewing distance
m
10~30
Colors
281 trillion
Grey scale (linear)
Levels
65,536 levels per color
Brightness control
Levels
100
Contrast ratio
1,000:1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
600
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts/panel
2,000
Input power (typical)
Watts/panel
800
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
525~530
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Controller
DB Star
Control way
Asynchronous & Synchronous
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging & Stand on ground
Package
Flight case
Flight case size
m
1.09*1.09*1.49
Gross weight
kg
310
Volume Weight
kg
370
