| Prod Model: |
UP-PAL3603 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lamp Brand: |
Edison |
| Color: |
RGB |
| Channel: |
6 Channel |
| Power Supply: |
E-Gore |
| Waterproof: |
Not Waterproof |
| Shell Material: |
Aluminium Alloy |
| Electric Current Type: |
AC |
| IP Rating: |
IP20 |
| Life: |
80000h |
| Emitting Color: |
RGB |
| Certification: |
RoHS |
| Power: |
3W |
| Type: |
LED PAR Light |
| Input Voltage: |
90~250 |
| LED Chips: |
Edison |

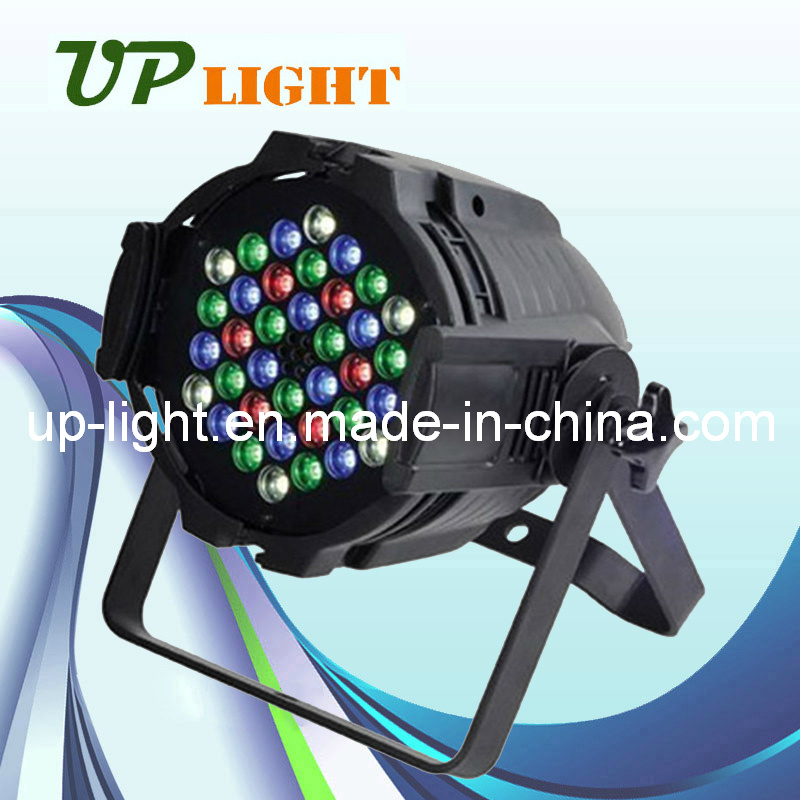

Product Description
Input voltage: 90V~250VAC (50/60Hz);
Rated power: 120W;
Light source: 36pcs 3watt Edison led lamp (12 Red +12 Green +12 Blue);
Color temperature: Cool white;
Average life: 50000~100000 hours;
Color systemRGBW color mixing can make more than 16000 colors with strobe effects and soft light effect;
Lens: High optical transmission of the acrylic lens;
Emitting angle: 25 ° Or 35 ° Optional;
Control mode: DMX512 signal control / master-slave control / sound control and auto running;
Channel: 3CH or 7 CH;
Features:
1. LED adopts high-power 3WLED with long life 50000-100000 hours, high luminous efficiency, no radiation and low power consumption etc;
2. LED adpots static constant current driving way with high precision, non-flicker (400HZ);
3. LED power supply adopts power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection;
Environment temperature: -15° C ~45° C;
IP rating: IP20, unwaterproof;
Projection distance: 20M;
Shell material: Casting aluminum alloy;
Carton Size: 30*30*37cm
G. W.: 9.5kg
|
3CH |
7CH |
function |
|
|
Ch 1 |
Dimming |
|
Ch 1 |
Ch 2 |
RED |
|
Ch 2 |
Ch 3 |
GREEN |
|
Ch 3 |
Ch 4 |
BLUE |
|
|
Ch 5 |
Strobe |
|
|
Ch 6 |
RGB macro function speed |
|
|
Ch 7 |
RGB macro function |
