Light Luminous Efficiency:
80-120 Im/W
Height:
3-12m
Light Luminous:
3000k
Light Source:
LED Lamp
Lamp Body Material:
Aluminum
Light Type:
Solar
Color Temperature:
Pure Wihte
Technics:
Electroplating
Illumination Time:
8h
Charging Time (',H):
6
Usage:
Street
IP Rating:
IP65
Certification:
CCC,ISO9001
Voltage:
12/24V
With Light Source:
With Light Source
Power:
60W
Cell Type:
Lead-Acid Battery
Product Description
Additional Info.
Trademark:Jinshang solar
Packing:Good for Exporting, Carton, Pallets
Standard:BRT-L1A Model 60W LED Solar PV Street Lights
Origin:China
HS Code:94054090
Production Capacity:5000PC/Month for 60W LED Solar PV Street Lights

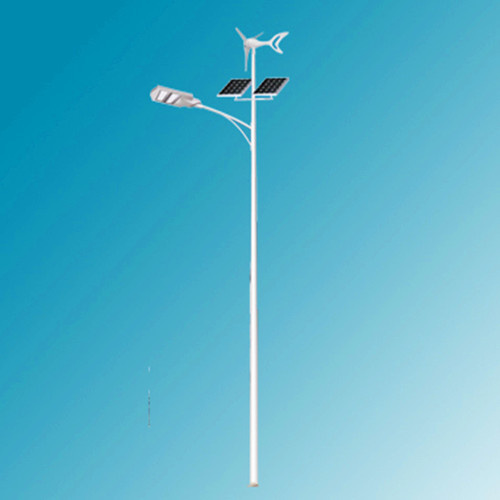

Product Description
Brief Specification for 8M pole 60W LED Solar PV Street Lights design based on average solar radiation condition 5.0KWH,Lighting hours: 11-12 Hrs/Day*3-4 days
1. Pole Height: 8M, Diameter: 80*180mm, Thickness: 4.0mm Plastic coated on HDG pole, resistant to wind: 150KM/H 2. Applicable light source: 60W LED, 8400LM,Lifespan:>80000Hrs. 3. PV Module: High efficient 140W*2PCs 4. Gelled battery: 150Ah*2PCs, Fee Maintence, Deep Cycle, Sealed Type. 5.Battery Box: Engineer Steel, On Top of Pole 6. Controller: 15A/24V Automatic control by microcomputer More Details:
Detailed Specification for 8M pole 60W Solar Street Light
Part Name and Lifespan
Technical Specification
Solar Panel:
Lifespan:20-25 years
140W*2PCPolycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass.
Gelled Battery
Lifespan:5-8 years
150Ah/12V*2PC, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free
Intelligent Solar Controller
Lifespan:5-10 years
15A/24V,IP68. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed Hours later.(11-12 Hrs)
Light source: High Power LED
Lifespan: More than 50000-100000Hrs
60W LED, White Color, 8400LM/PC,6500K,IP65,
High Power, High Brightness.
Lamp Housing:
Lifespan: More than 20 years
Die-casted Aluminum, IP65
High transmittance & Density toughened glass,
Battery Box:
Engineer Steel, hang on the pole.
GI Pole System:
Lifespan: More than 20 years
8M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H
Working Principle: 1. LED solar street light relies on solar energy, which is clean, endless and environment-friendly. 2. The system is mainly composed of solar panel, light source, controller and free-maintenance battery. 3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting. 4. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.
After-sales Service of JS SOLAR Marked Solar Street Lights: 1. LED solar street lights should be used under normal condition. The warranty of the quality is based on correct preservation, installation, usage and maintenance. 2. It's not included in the warranty scope if the products damage is due to improper installation, product regulations violation or damaged by human. 3. For the quality problems during the warranty period, our company will choose the best methods of repair exchange (parts) or replace the products and etc. 4.Some material cost, labor cost may be charged properly for extended service.
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.
Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances
We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.
Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.
In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
