| Price: | US $ 150-250/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | UP-PF1812 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: | LED Display |
| Channel: | 11CH |
| Power Supply: | Meanwell Taiwan |
| Color: | RGBWA UV |
| Zoom: | 10-60degree |
| LED: | 12W |
| LED Qty: | 36PCS |
| Power: | 10W |
| Waterproof: | Waterproof |
| IP Rating: | IP66 |
| Life: | 80000h |
| Electric Current Type: | AC |
| Shell Material: | Aluminium Alloy |
| LED Chips: | CREE |
| Certification: | RoHS |
| Type: | PAR18 |
| Emitting Color: | RGBWA+UV |
| Input Voltage: | AC100V-220V, 50/60Hz |
| Tech Spec | |
| Input voltage | AC100V-220V, 50/60HZ; |
| Rated power | 240W; |
| Light source | 18pcs 12W RGBWAUV 6in1 led chips; |
| LED luminance: More than 5,000 lux; | |
| Average life: 80000~100000 hours; | |
| LED Lamp powr supply | Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection; |
| LED drive mode | Adopt static constant current drive mode with high precision and non-flicker (400HZ); |

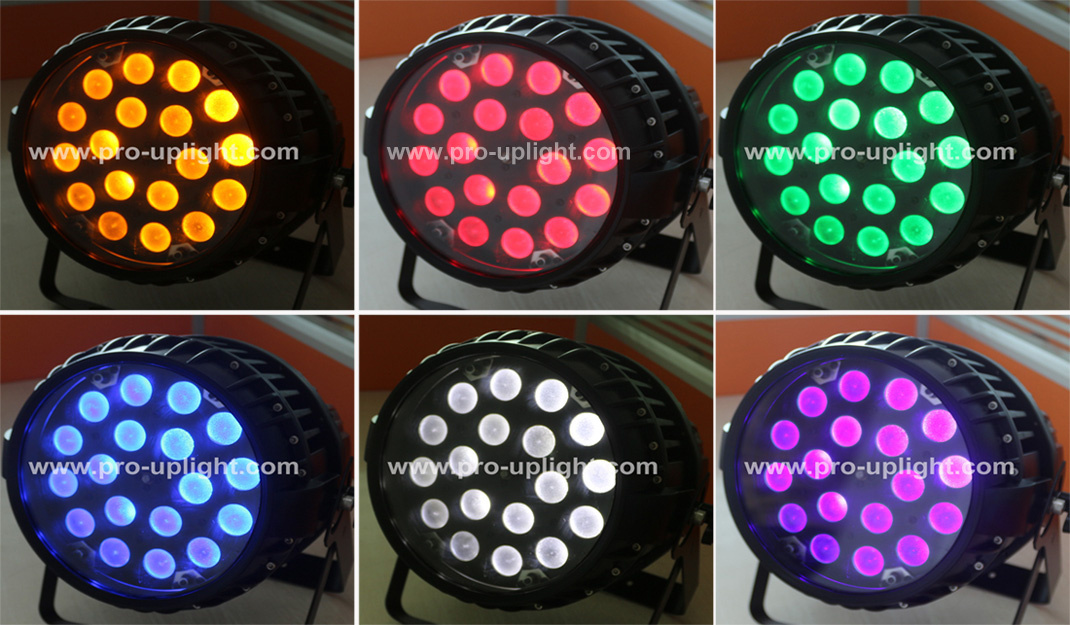

| Color system | Purple (Ultraviolet), Amber, Red, Green, Blue, White 6in1 Color mixing system with color rainbow which is reaching high colour rendering index |
| Color effect | Uniform color washing effect with no colour shadows, rich saturated and more pastel lighting; |
| Zoom | Linear zooming; |
| Lens | 18pcs high efficiency and transmission large lens; |
| Emitting angle | 10°~60°; |
| Waterproof grade | IP64; |
| Strobe | 1~10 strobes/seconds; |
| Dimmer | 0~100% linear dimmer; |
| Control mode | DMX512 signal 3-pins connection control, master-salve control, multiple connection in series control with self-programming mode, self-running mode, external control mode; |
| Channel | 11 Channel; |
| Other function | DMX address can be adjusted; DMX address extension function; IP address extension function; |
| Working temperature | -15° C ~45° C; |
| Shell material | Aluminum alloy; |
| Application | TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert, DJ effect, disco effect, club effect, party effect etc; |
| Packing size | 300×300×380mm; |
| Gross weight | 10Kg; |
| 10 channles | Function |
| CH 1 | Dimming |
| CH 2 | RED |
| CH 3 | GREEN |
| CH 4 | BLUE |
| CH 5 | WHITE |
| CH 6 | ULTRAVIOLET |
| CH 7 | AMBER |
| CH 8 | Strobe |
| CH 9 | Speed |
| CH 10 | Auto Running & Sound Control |
| CH 11 | Zoom |
