| Prod Model: |
UP-PL1810 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
240W |
| LED: |
10W CREE |
| LED Qty: |
18PCS RGBW 4in1 LED |
| LED Luminance: |
More Than 5, 000 Lux |
| Color Effect: |
Uniform Color Washing |
| Zoom: |
Linear Zooming |
| Emitting Angle: |
10~60 Degree |
| Display: |
LED Display |
| Power: |
10W |
| Waterproof: |
Waterproof |
| IP Rating: |
IP66 |
| Life: |
80000h |
| Electric Current Type: |
AC |
| Shell Material: |
Aluminium Alloy |
| LED Chips: |
CREE |
| Certification: |
RoHS |
| Type: |
PAR18 |
| Emitting Color: |
RGBW |
| Input Voltage: |
AC100V-220V, 50/60Hz |
Product Description

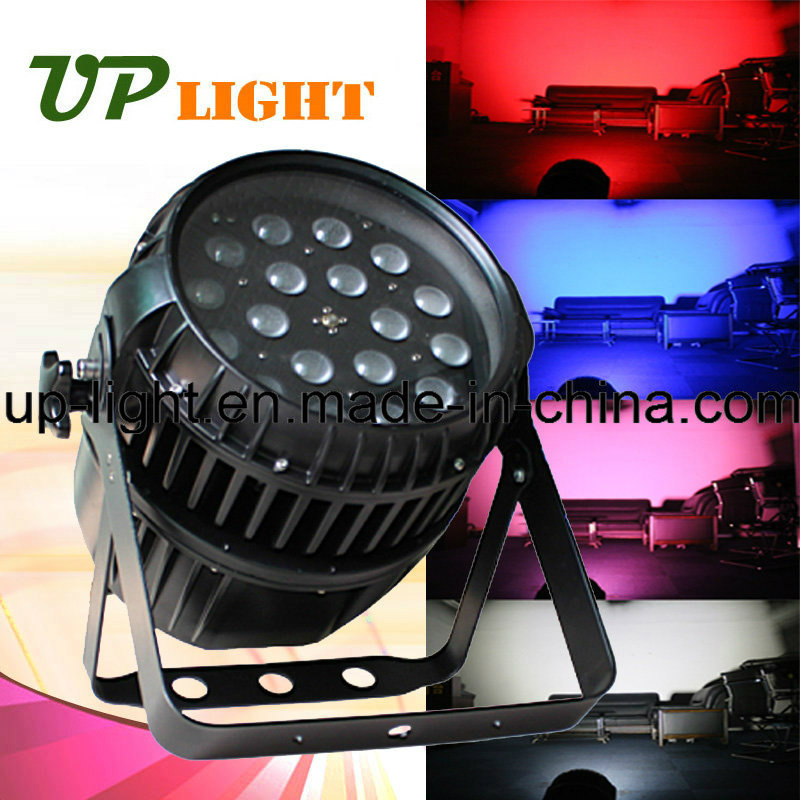

18*10W RGBW 4in1 LED PAR with zoom
(Item#: UP-PLC1810)
Tech Spec:
Input voltage: AC100~240V 50~60Hz
Power: 240W
Light source: Power 10watt
Quantity 18pcs led chip(RGBW 4in1)
Rated life 80000~100000 hours
High luminous efficiency, no radiation, low power consumption, no flicker
Color: RGB linear color mixing, build-in multi-function
Lens angle: 150 standard (80, 250, 300, 450, 600 optional)
Dimmer: 0~100% linear dimmer
Strobe: 1~10 times / sec
Control mode: International standard DMX512 signal, 3-pin connect
5channels/6channels/7channels/8channels/13channels DMX512 signal / master-slave / sound control, DMX address optional
Self-programming mode, Self-running mode, External control mode
Other function: IP address code extension, DMX address code extension, Build-in program
Environment temperature: -200 C ~400 C
Waterproof rating: Casting Aluminum shell, IP64
Display: LED display
Carton Size: 300*300*380mm
Net weight: 10 kg
5 channles | 6 channles | 7 channles | 8 channles | 13 channles |
| CH 1 | CH 1 | CH 1 | CH 1 |
| CH 1 | CH 2 | CH 2 | CH 2 | CH 2 |
| CH 2 | CH 3 | CH 3 | CH 3 | CH 3 |
| CH 3 | CH 4 | CH 4 | CH 4 | CH 4 |
|
| CH 5 | CH 5 | CH 5 |
|
|
| CH 6 | CH 6 |
|
|
|
| CH 7 |
|
|
|
| CH 8 |
|
|
|
| CH 9 |
|
|
|
| CH 10 |
|
|
|
| CH 11 |
| CH4 | CH5 | CH6 | CH 7 | CH 12 |
| CH5 | CH6 | CH7 | CH 8 | CH 13 |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
