Brightness:
6000nits
Panel Weight:
45kg
Panel Material:
Epoxy Paint Coated Aluminum
Mounting System:
Fixed with 4PCS M10 Bolts
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
2R, 1G, 1B
Certification:
ETL
Pixel Pitch:
16mm
Display Function:
Video Display
Application:
Advertising
Scanning Mode:
1/2 Scan
Average Power Consumption:
350W / m²
Pixel Density:
3906DOT/M&Sup2
Product Description

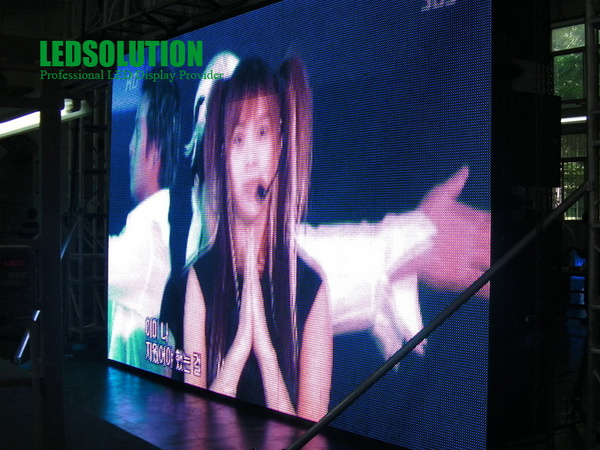

Led Display, Rental Led Display, led display screen, Led display sign, P16 Rental LED Screen, P16 outdoor Led display, P16 advertising outdoor LED Display, Led display billboard, P16 Led display screen, Rental Advertising led Display, Led Screen Solution for Sport Rental:
Features of the rental LED Display: *Quick assembly model, 2 persons are able to assemble 20sqm within one hour *Light weight, for indoor application, only 38kg/sqm, for outdoor application, only 45kg/sqm *Weatherproof to IP65 standards *High resolution images *Easily configured for various size and aspect ratios *Wide viewing angle
Parameter
Unit
Value
Pitch
mm
16 / 8
Brightness
nits
6, 000
Color temperature
deg. K
6, 500
Viewing angle -Horizontal (50% brightness)
deg.
130 (+65/-65)
Viewing angle - Vertical (50% brightness)
deg.
60(+30/-30)
Panel weight
kg
45
Panel width
mm
1, 024
Panel height
mm
768
Panel depth
mm
170
Panel area
sq. m.
0.7864
Panel material
Epoxy paint coated Aluminum
Panel Mode
Quick Assembly Cabinet
Ingress protection (front/rear)
IP
IP65/IP43
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
2, 1, 1
Resolution per panel
64x48
Dot per panel
3, 072
Dot per sq. meter
3, 906
LED per sq. meter
15, 624
Recommended minimum viewing distance
m
16
Recommended best viewing distance
m
22~53
Colors
1, 073.7 million
Grey scale (linear)
Levels
1, 024 levels per color
Brightness control
Levels
100
Contrast ratio
1, 000: 1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3, 000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts /sq. m.
976
Input power (typical)
Watts /sq. m.
390
Lifetime (50% brightness)
Hours
≥ 100, 000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
520~525
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI, MPG, AVI, WMV, RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Fixed with 4pcs M10 bolts
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
