Total Rated Lamp Lumens:
20250lm
CRI:
>70
Lumen Maintenance:
>50, 000hours
Overall Dimensions:
728mm X 346mm X 107mm
Power Factor:
>0.95
Power Supply:
AC
Lamp Body Material:
Aluminum Alloy
Application:
Expressway, Major Roadway, Local Roadway.
IP Rating:
IP66
Certification:
UL
With Light Source:
Without Light Source
LED Chips Brand:
Bridgelux
Color Temperature:
Pure White, Warm White, Cool White
Power:
150W
Input Voltage:
AC90-305V, 50-60Hz
Product Description

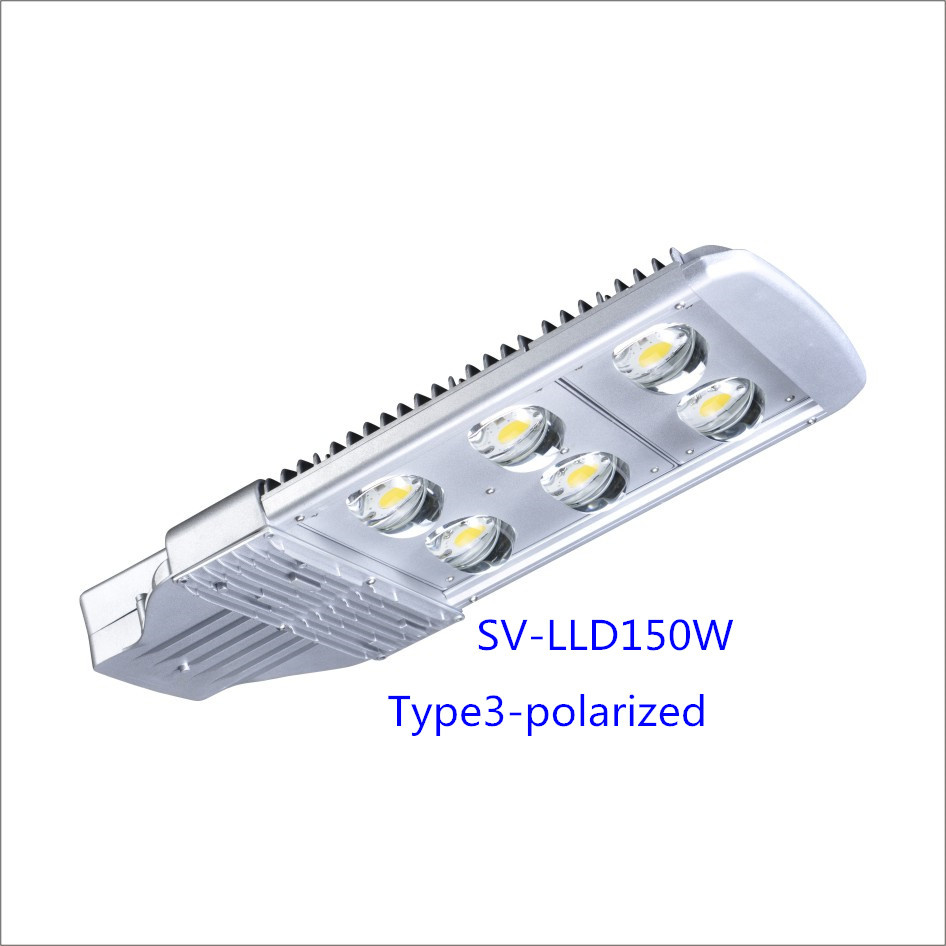

Model SV-LLD150W
Electrical Characteristics No. of LED 6pcs. Bridgelux® Vero 18 LED Current 860mA Input Voltage & Frequency AC90-305V, 50-60Hz AC Input Current ≤1.30A @110V | ≤0.738A @220V System Power 150W±10% Power Factor ≥0.9 (0.95 ) % THD ≤20
Photometrics & Chromaticity Total Rated Lamp Lumens 20250lm CCT 3000~6400K±300K CRI ≥70 Light Distribution Pattern Type 3,Polarized Field Angle H144.7 V87.5 Lumen Maintenance >50,000hours
Environmental Characteristics IP Rating IP66 Operating Temperature -40°C to +55°C Operating Humidity 10-95%RH Storage Temperature -40°C to +70°C Storage Humidity 10-95%RH
Mechanical Characteristics Overall Dimensions 727mm x 346mm x 107mm Weight 12.3 kg Installation Accessories: +5° Inclination Adjustment Kit 10KV independent Thunder-proof component(Optional)
OPTION:
model
120W
150W
180W
240W
LED chip
Bridgelux® Vero 18
Bridgelux® Vero 18
Bridgelux® Vero 18
Bridgelux® Vero 18
Lamp Lumens
17040lm
22200lm
25560lm
34800lm
Input Voltage & Frequency
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
CCT
5000K±300K
5000K±300K
5000K±300K
5000K±300K
System Power
120W±10%
150W±10%
180W±10%
240W±10%
Power Factor
≥0.9 (0.95 )
≥0.9 (0.95 )
≥0.9 (0.95 )
≥0.9 (0.95 )
Operating Temperature
-40°C to +55°C
-40°C to +55°C
-40°C to +55°C
-40°C to +55°C
Weight
9.3 kg
12.3 kg
12.3 kg
14.6 kg
Overall Dimensions
585mm x 346mm x 107mm
728mm x 346mm x 107mm
728mm x 346mm x 107mm
890mm x 400mm x 180mm
According with North America, Europe, Asia, China and other city street light standards of professional LED lights, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different street light needs, makes it suitable perfectly for any street light environment, energy saving, enhance the use value of street light.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
Features: 1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
2. Adopted original Bridgelux® LED array .low glare, street light lamps efficiency more than 125lm/W ;
3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, street light power efficiency high;
4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;
5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;
6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
7. IP66 protection rating against dust and water performance stability, extend street light life;
8. Safety and Environmental standards recognition, 5 years quality warranty;
Test Report:
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
Work Flow:
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.
We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
You are welcome to contact us for more information.
Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
