Overall Dimensions:
585mm X 346mm X 107mm
Operating Temperature:
-40°c to +55°c
Total Rated Lamp Lumens:
17040lm
Power Factor:
≥ 0.9 (0.95 )
CRI:
>70
Power Supply:
AC
Lamp Body Material:
Aluminum Alloy
Application:
Freeway,Expressway,Major Roadway.
IP Rating:
IP66
Certification:
UL
With Light Source:
With Light Source
LED Chips Brand:
Bridgelux
Color Temperature:
3000~6700k
Power:
120W
Input Voltage:
AC90-305V, 50-60Hz
Product Description

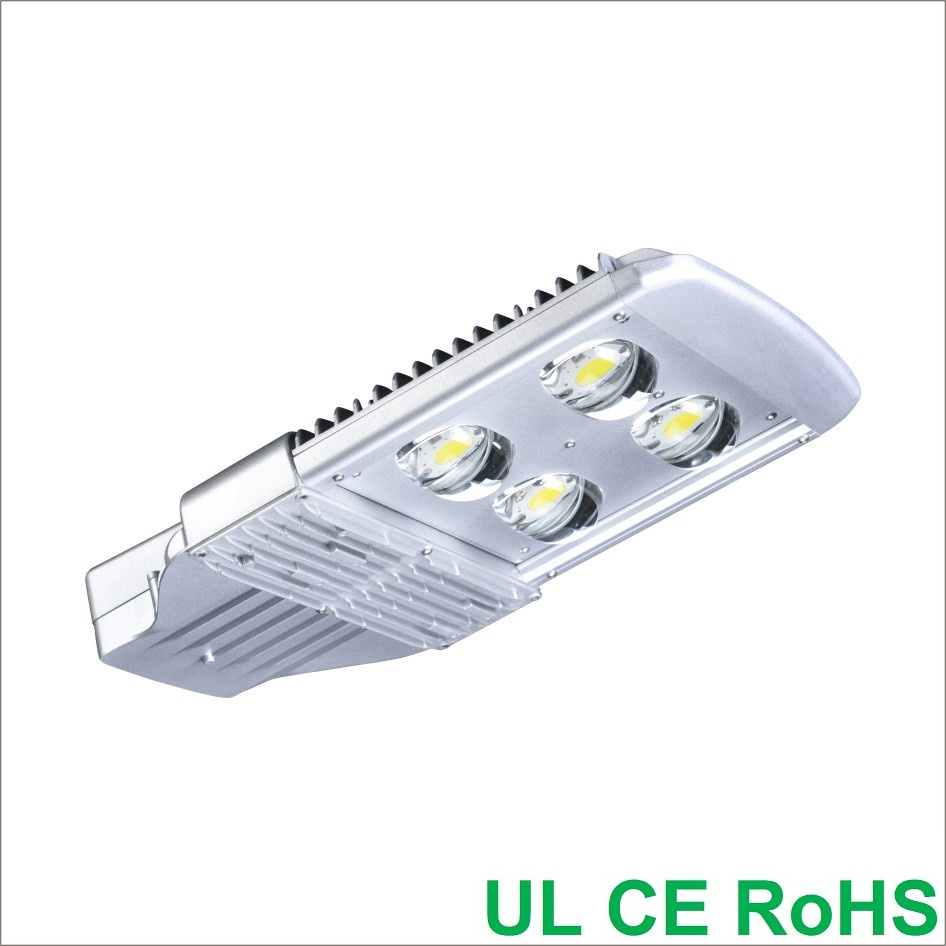

Model SV-LLD120W
Electrical Characteristics No. of LED: 4pcs. Bridgelux® Vero 18 LED Current: 1050mA Input Voltage & Frequency: AC90-305V, 50-60Hz AC Input Current ≤1.30A @110V | ≤0.615A @220V System Power 120W±10% Power Factor ≥0.9 (0.95 ) % THD ≤20
Photometrics & Chromaticity Total Rated Lamp Lumens 17040lm CCT: 3000~6400K±300K CRI ≥70 Light Distribution Pattern Type 2, Semi-cutoff Field Angle: H155.5 V122.9 Lumen Maintenance >50,000hours
Environmental Characteristics IP Rating IP66 Operating Temperature -40°C to +55°C Operating Humidity 10-95%RH Storage Temperature -40°C to +70°C Storage Humidity 10-95%RH
Mechanical Characteristics Overall Dimensions 588mm x 346mm x 107mm Weight : 9.3 kg Installation Accessories: +5° Inclination Adjustment Kit 10KV independent Thunder-proof component(Optional)
OPTIONS:
model
120W
150W
180W
240W
LED chip
Bridgelux® Vero 18
Bridgelux® Vero 18
Bridgelux® Vero 18
Bridgelux® Vero 18
Lamp Lumens
17040lm
22200lm
25560lm
34800lm
Input Voltage & Frequency
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
CCT
5000K±300K
5000K±300K
5000K±300K
5000K±300K
System Power
120W±10%
150W±10%
180W±10%
240W±10%
Power Factor
≥0.9 (0.95 )
≥0.9 (0.95 )
≥0.9 (0.95 )
≥0.9 (0.95 )
Operating Temperature
-40°C to +55°C
-40°C to +55°C
-40°C to +55°C
-40°C to +55°C
Weight
9.3 kg
12.3 kg
12.3 kg
14.6 kg
Overall Dimensions
585mm x 346mm x 107mm
728mm x 346mm x 107mm
728mm x 346mm x 107mm
890mm x 400mm x 180mm
According with North America, Europe, Asia, China and other city led street light standards of professional LED lights, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different led street light needs, makes it suitable perfectly for any road light environment, energy saving, enhance the use value of led street lights.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
Features: 1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;
3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;
4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;
5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;
6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
7. IP66 protection rating against dust and water performance stability, extend led street lights life;
8. Safety and Environmental standards recognition, 5 years quality warranty;
Test Report:

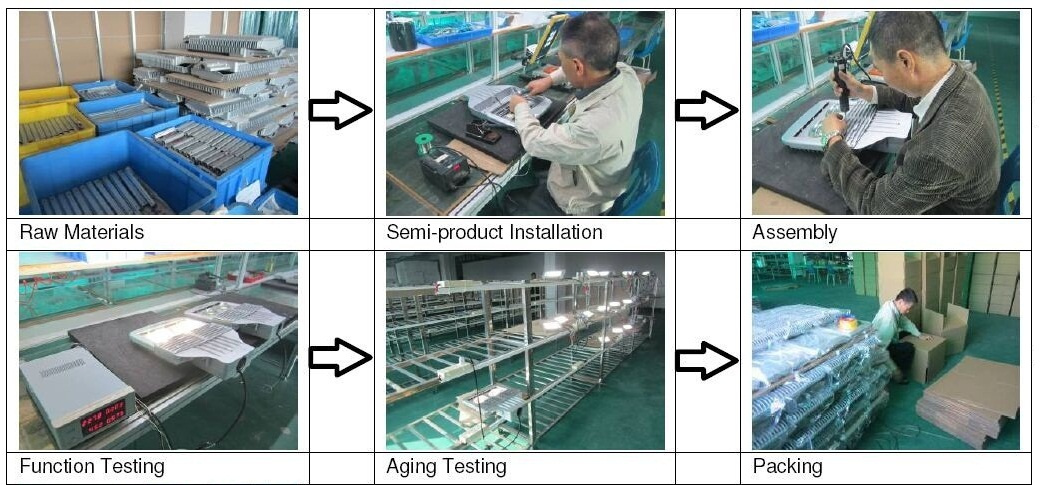

Work Flow:
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.
We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
