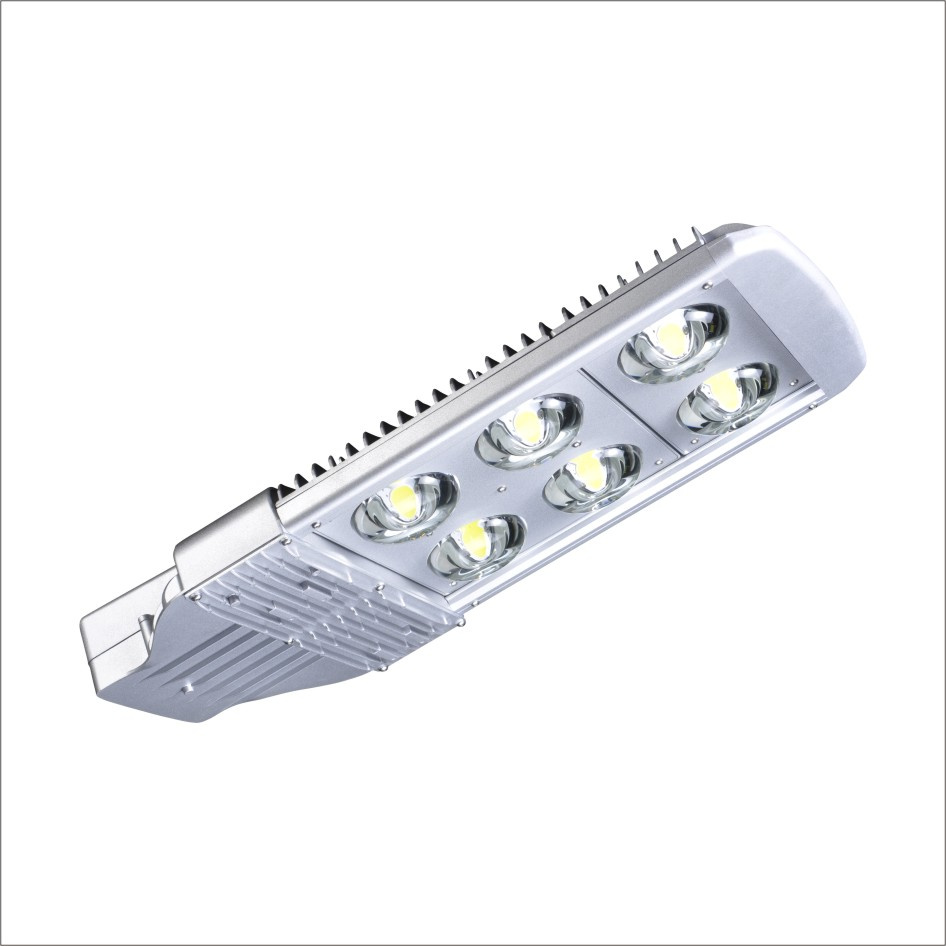

Model SV-LLD150W
Electrical Characteristics Photometrics & Chromaticity
No. of LED 6pcs. Bridgelux® Vero 18 Total Rated Lamp Lumens 22200lm
LED Current 860mA CCT 5000K±300K
Input Voltage & Frequency AC90-305V, 50-60Hz CRI ≥70
AC Input Current ≤1.30A @110V | ≤0.737A @220V Light Distribution Pattern Type 5
System Power 150W±10% Field Angle H150.5 V150.0
Power Factor ≥0.9 (0.95 ) Lumen Maintenance >50,000hours
% THD ≤20
Environmental Characteristics Mechanical Characteristics
IP Rating IP66 Overall Dimensions 728 x 346 x 107mm
Operating Temperature -40°C to +55°C Weight 12.3 kg
Operating Humidity 10-95%RH Installation Accessories +5° Inclination Adjustment Kit
Storage Temperature -40°C to +70°C 10KV independent Thunder-proof component
Storage Humidity 10-95%RH (Optional)
model | 40W | 60W | 80W | 100W |
LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
Lamp Lumens | 6120lm | 8520lm | 12240lm | 14500lm |
Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
System Power | 40W±10% | 60W±10% | 80W±10% | 100W±10% |
Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
Weight | 7.1 kg | 7.1 kg | 9.3 kg | 9.3 kg |
Overall Dimensions | 462mm x 346mm x 107mm | 462mm x 346mm x 107mm | 585mm x 346mm x 107mm | 585mm x 346mm x 107mm |
According with North America, Europe, Asia, China and other city street light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different street light needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of light.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;
3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;
4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;
5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;
6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
7. IP66 protection rating against dust and water performance stability, extend street light life;
8. Safety and Environmental standards recognition, 5 years quality warranty;
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
