Overall Dimensions:
585mm X 346mm X 107mm
Operating Temperature:
-40°c to +55°c
Power Supply:
AC
Color Temperature:
Cool White
Lamp Body Material:
Aluminum Alloy
Application:
Freeway,Expressway,Major Roadway.
IP Rating:
IP65
Certification:
UL
With Light Source:
Without Light Source
LED Chips Brand:
Epistar
Power:
120W
Input Voltage:
AC90-305V, 50-60Hz

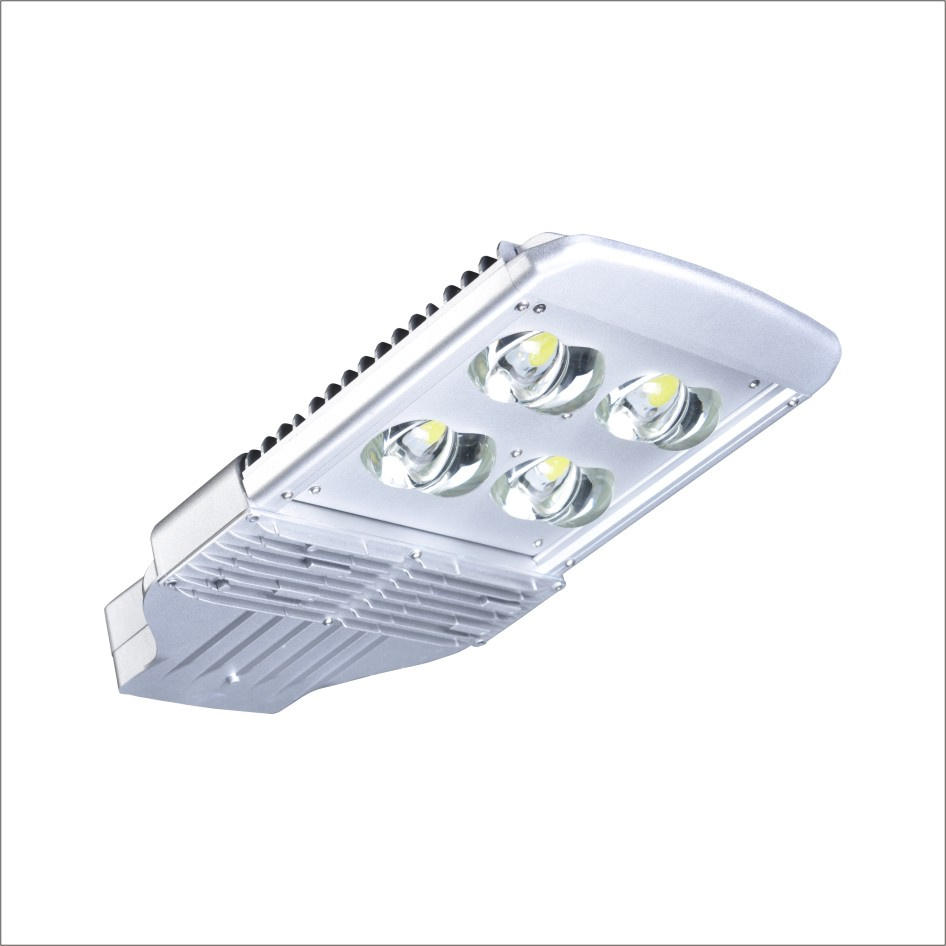

Product Description
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.

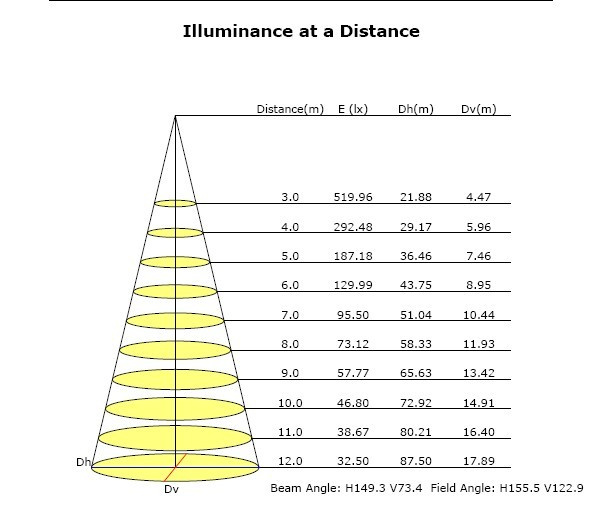

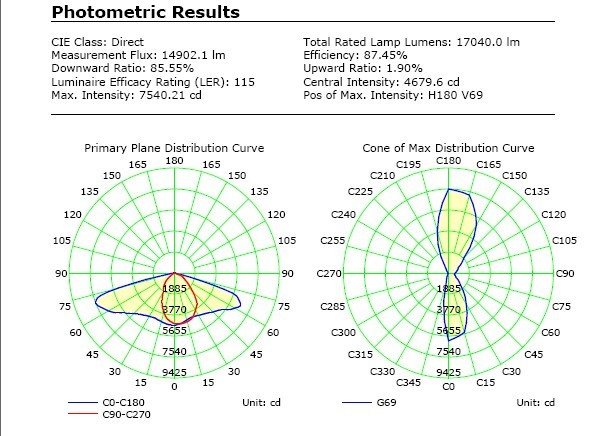

Model SV-LLD120W Electrical Characteristics Photometrics & Chromaticity No. Of LED 4pcs. Bridgelux® Vero 18 Total Rated Lamp Lumens 17040lm LED Current 1050mA CCT 5000K± 300K Input Voltage & Frequency AC90-305V, 50-60Hz CRI ≥ 70 AC Input Current ≤ 1.30A @110V ≤ 0.615A @220V Light Distribution Pattern Type 2, Semi-Cutoff System Power 120W± 10% Field Angle H155.5 V122.9 Power Factor ≥ 0.9 (0.95 ) Lumen Maintenance >50, 000hours % THD ≤ 20
Environmental Characteristics Mechanical Characteristics IP Rating IP66 Overall Dimensions 585mm x 346mm x 107mm Operating Temperature -40° C to +55° C Weight 9.3 kg Operating Humidity 10-95%RH Installation Accessories +5° Inclination Adjustment Kit Storage Temperature -40° C to +70° C 10KV independent Thunder-proof component(Optional) Storage Humidity 10-95%RH
model
40W
60W
80W
100W
120W
150W
LED chip
Bridgelux® Vero 18
Bridgelux® Vero 18
Bridgelux® Vero 18
Bridgelux® Vero 18
Bridgelux® Vero 18
Bridgelux® Vero 18
Lamp Lumens
6120lm
8520lm
12240lm
14500lm
17040lm
22200lm
Input Voltage & Frequency
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
AC90-305V, 50-60Hz
CCT
5000K±300K
5000K±300K
5000K±300K
5000K±300K
5000K±300K
5000K±300K
System Power
40W±10%
60W±10%
80W±10%
100W±10%
120W±10%
150W±10%
Power Factor
≥0.9 (0.95 )
≥0.9 (0.95 )
≥0.9 (0.95 )
≥0.9 (0.95 )
≥0.9 (0.95 )
≥0.9 (0.95 )
Operating Temperature
-40°C to +55°C
-40°C to +55°C
-40°C to +55°C
-40°C to +55°C
-40°C to +55°C
-40°C to +55°C
Weight
7.1 kg
7.1 kg
9.3 kg
9.3 kg
9.3 kg
12.3 kg
Overall Dimensions
462mm x 346mm x 107mm
462mm x 346mm x 107mm
585mm x 346mm x 107mm
585mm x 346mm x 107mm
585mm x 346mm x 107mm
728mm x 346mm x 107mm
According with North America, Europe, Asia, China and other city street lamp standards of professional LED lights,, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different street lamp needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of light.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.

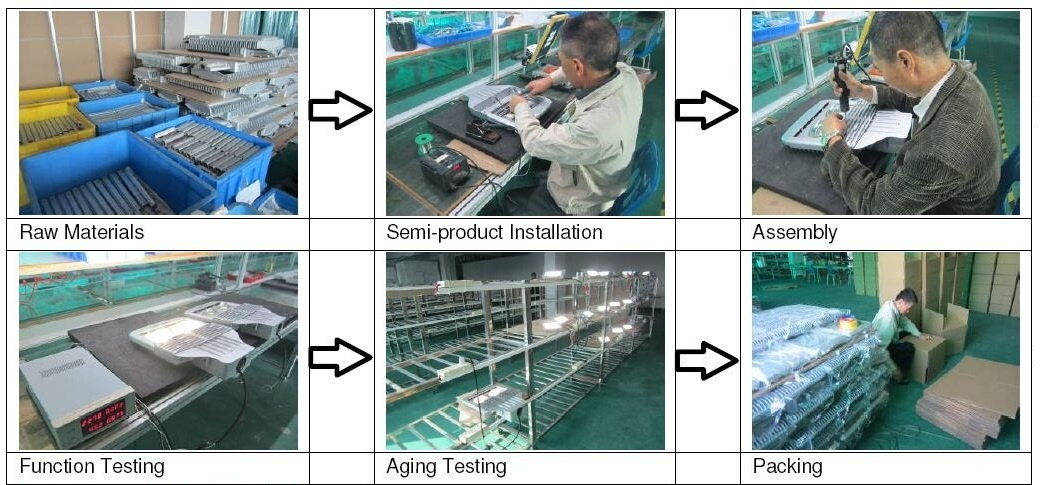

We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
You are welcome to contact us for more information.
Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
