Prod Model: |
LBHY04 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
CRI: |
>80 |
Tc: |
2700k-7000k |
Size: |
270*290 |
Lumen: |
13200lm |
LED Type: |
Samsung 3535 |
LED Qty: |
49PCS |
Base Tape: |
E40 |
Angle: |
120 Degree |
Life Time: |
>50,000h |
Driver: |
External Driver Meanwell or Normal Driver |
IP Rating: |
IP65 |
Certification: |
UL |
Color Temperature: |
2700k-7000k |
Color: |
Warm White, Pure White, Cool White |
Lamp Body Material: |
Aluminum+PC |
Product Description

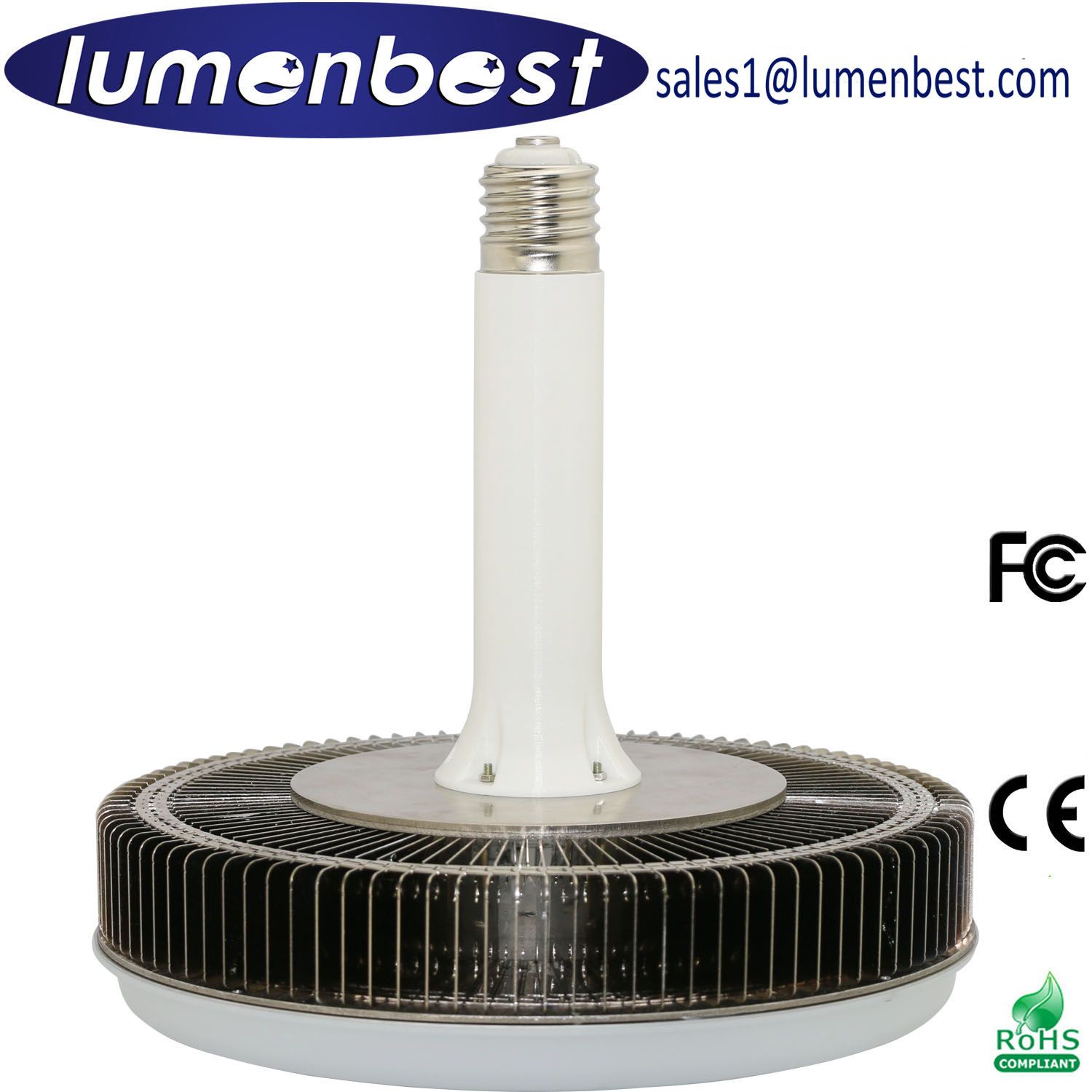

120W ERP UL TUV Aluminum LED high Bay Light
1.led high bay for supermarket, emporium, hotel
2.good quality, best price
3.warranty: 5 years
4.CE Rohs certificated
No mercury, No radiation, No Uv, No infrared.
Uing Nano technical, light smooth and bright.
Suitable for supermarket, emporium, hotel, can directly replace the HPS lamps.
ITEM NO. | View angle | LED Qty. | LED type | Power | Voltage | Lumens | Base | Color Temperature | Life |
(V) | (Lm) | (hours) |
LBHY04 | 270*Φ290 Internal driver | 220 degree With clear cover or milky cover or without cover | 49 SMD | Samsung 3535 | 120W | AC100-277V OR AC 120-347V | 13200LM | E27 E40 | 2700K-7000K | >50,000 hrs |
Quick Details
Light Source: LED
Item Type: LED high bay light
LED Light Source: Samsung or Seoul 5630
Input Voltage(V): AC100-277V OR AC 120-347V
Lamp Power(W): 120W
Lamp Luminous Flux(lm): 13200Lm
CRI (Ra>): 80
Color Temperature(CCT): 2700-7000K
Working Temperature(ºC): -35/+50
Working Lifetime(Hour): >50000
Lamp Body Material: Aluminum+PC
Certification: CCC, CE, EMC, ETL, FCC, LVD, PSE, RoHS,CETLUS,Retrofit
Base Type:E26/E27/E39/E40
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Lumenbest
Model Number: LBHY04
Input voltage: AC 100-277V,50/60HZ
LED Brand: Samsung3535
Beam Angle: 120
Color Temp: 2700K-7000K
CRI: CRI>80
FC: >0.95, IP 65
Life span: >50000 hours
Features of the Products:
1.High brightness,small volume, light weight, replace conventional CFL,incandescent lamp.
2.80% more energy saving compared with conventional lights
3.Special surface design for heat dissipation
4.Certificate: CE,RoHS,ETL,CETLUS,Retrofit
5.Beam Angle:120 degree
Applications:
1.Warehouse, indoor lighting, street landscape.
2.Conference / Meeting rooms/ Commercial Complexes
3.Residential / Institution Buildings/ Schools, Colleges / Universities
4.Places where need energy saving and high color rendering index lighting
Item Technical Data |
|
|
|
|
Series | LBHY01 | LBHY02 | LBHY03 | LBHY04 | LBHY05 |
Voltage | AC100-300V/ DC12-24V | AC100-300V/ DC12-24V | AC100-300V/ DC12-24V | AC100-300V/ DC12-24V | AC100-300V/ AC120-347V |
Lumen | 6960 Lm | 9280Lm | 11600 Lm | 13200 Lm | 16500lm |
Watt | 60W | 80W | 100W | 120W | 150W |
Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
CRI | >80 | >80 | >80 | >80 | >80 |
LED type | Samsung 5630 SEOUL 5630 | Samsung 5630 SEOUL 5630 | Samsung 5630 SEOUL 5630 | Samsung 3535 | Samsung 3535 |
LED QTY. | 162SMD | 240SMD | 336SMD | 49SMD | 63SMD |
Color | WW/NW/CW 2700K-7000K | WW/NW/CW 2700K-7000K | WW/NW/CW 2700K-7000K | WW/NW/CW 2700K-7000K | WW/NW/CW 2700K-7000K |
Dia.[φ]*H | 270*Φ290 | 270*Φ290 | 270*Φ290 | 270*Φ290 | 270*Φ290 |
Angle | 120° | 120° | 120° | 120° | 120° |
Base | E27 E40 | E27 E40 | E27 E40 | E27 E40 | E27 E40 |
