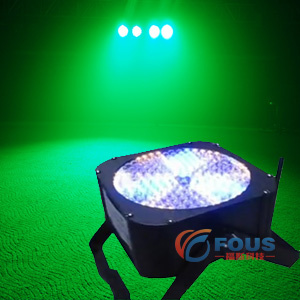

198-10mm Wireless Battery LED Flat PAR / LED Slim PAR / Stage Lighting
Battery powered wireless DMX PAR stage light
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
RF Remote controller for optional
TECHNICAL INFO
144 RGB
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 20W
Light source: 144PCS 10mm high brightness LEDs(R48, G48, B48)
Lamp life: 6-10 ten thousand hrs
LED angle: 30(± 5) degree
Color: 16.7 million kinds of color change
Lux: 2.000@1m
Control channels: 3/6chs
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model(by function button): Color change, color strobe, color dimmer, color gradual change/color jump change
Operation menu: 4 digit digital LED display
Packing size: 240*130*250mm
N. W: 3kg
G. W: 3.5kg
144 RGBW
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 20W
Light source: 144PCS 10mm high brightness LEDs(R36, G36, B36, A36)
Lamp life: 6-10 ten thousand hrs
LED angle: 30(± 5) degree
Color: 16.7 million kinds of color change
Lux: 2.000@1m
Control channels: 3/7chs
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model(by function button): Color change, color strobe, color dimmer, color gradual change/color jump change
Operation menu: 4 digit digital LED display
Packing size: 240*130*250mm
N. W: 3kg
G. W: 3.5kg
198 RGBWA
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 25W
Light source: 198PCS 10mm high brightness LEDs(R45, G39, B39, A45, W30)
Lamp life: 6-10 ten thousand hrs
LED angle: 30(± 5) degree
Color: 16.7 million kinds of color change
Lux: 2.000@1m
Control channels: 3/5/12chs
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model(by function button): Color change, color strobe, color dimmer, color gradual change/color jump change
Operation menu: 4 digit digital LED display
Packing size: 240*130*250mm
N. W: 3kg
G. W: 3.5kg
Add new function: Battery powered (rechargeable), With Battery indicator, 4 show grids on the light, RF control range can reach 300m. To have the portable light connected to house power by the power cord, it can be charged fully after continuously charging for 4 hours Once fully charged, the battery supports continuous up to 8-10 hours with full color, about 10-22 hours if single color or AUTO mode combination of colors
|
CH1 |
0-15 |
Blackout |
|
16-255 |
From dark to brightest |
|
CH2 |
0-15 |
Blackout |
|
16-255 |
Strobe from slow to fast |
|
CH3 |
0 |
Blackout |
|
1-120 |
Choose color |
|
121-255 |
Color mixing and auto-run |
DMX 5 Channel Mode:
|
CH1 |
0 |
Blackout |
|
1-255 |
Red color dimming |
|
CH2 |
0 |
Blackout |
|
1-255 |
Green color dimming |
|
CH3 |
0 |
Blackout |
|
1-255 |
Blue color dimming |
|
CH4 |
0 |
Blackout |
|
1-255 |
Amber color dimming |
|
CH5 |
0 |
Blackout |
|
1-255 |
White color dimming |
|
CH1 |
0-15 |
Blackout |
|
16-255 |
From dark to brightest |
|
CH2 |
0-15 |
Blackout |
|
16-255 |
Strobe from slow to fast |
|
CH3 |
0 |
Blackout |
|
1-255 |
Red color dimming |
|
CH4 |
0 |
Blackout |
|
1-255 |
Green color dimming |
|
CH5 |
0 |
Blackout |
|
1-255 |
Blue color dimming |
|
CH6 |
0 |
Blackout |
|
1-255 |
Amber color dimming |
|
CH7 |
0 |
Blackout |
|
1-255 |
White color dimming |
|
CH8 |
0-15 |
Blackout |
|
16-255 |
Color mixing selection |
|
CH9 |
0-15 |
Blackout |
|
16-255 |
Speed of color mixing |
|
CH10 |
0-15 |
Blackout |
|
16-255 |
Color mixing gradually change |
|
CH11 |
0-15 |
Blackout |
|
16-255 |
Speed of color mixing change gradually |
|
CH12 |
0-127 |
Blackout |
|
128-255 |
DMX512 switch to sound control |
