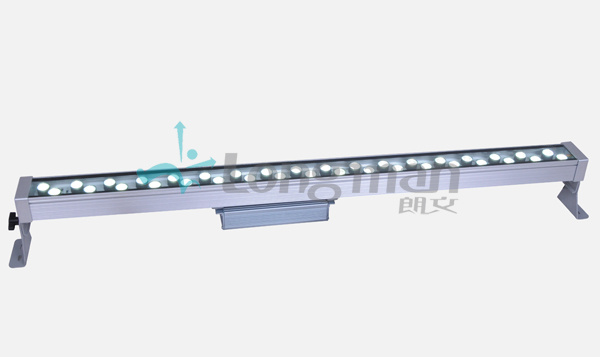

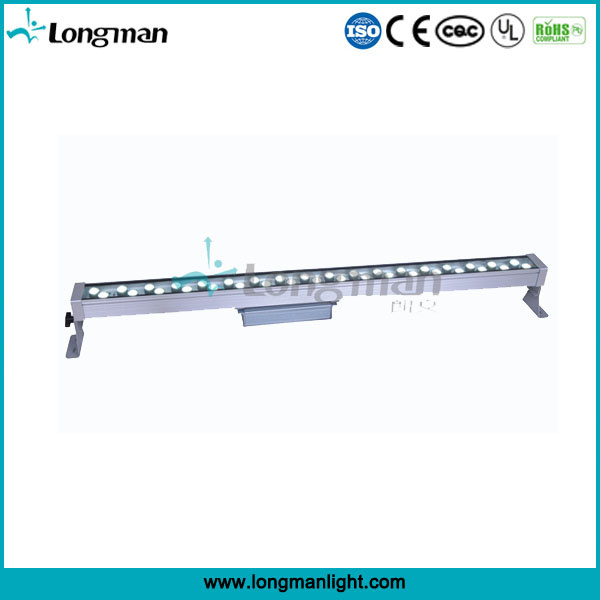

White waterproof led wall washer light for Outdoor(Excelsior363AC)Feature:1)Sivewave dimming, no affect to Grid net when dimming.
2)SMPS inout and output with both Male/Female waterproof connector,easy replace,could connect 30 PCS fixture as daisy train.
3)DC cable connect with power supply through side cover, by 2 chips Male/Female waterproof connector
4)Could choose sidecover bracket or slide bracket for installation
5)5140Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle.
6)Stable color performance, Ra>85.
7)Cree XPE/XPG LED,less comsume, longer longevity, precise optical design
8)Independent circuit driving, each 1000mA,even ampere distribute.
9)Field Angle standard 30°,could choose other angle, and also frosted piece and 60*1° third optical piece.
10)Lampbody enough for LED heatsink, heat-seperated driving part design make sure more than 10000 Hours Longevity for SMPS and Main board.
11)Side cover With waterproof air valve to balance pressure,get rid of mosuisture on glass innerface.

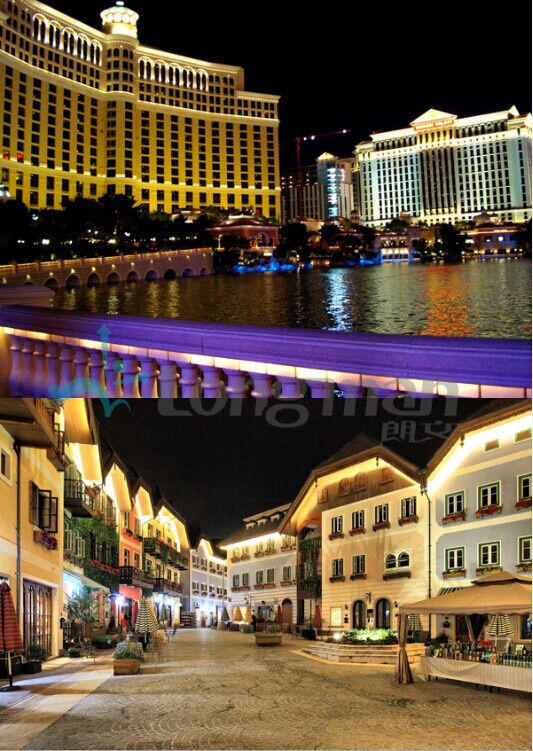

Project:

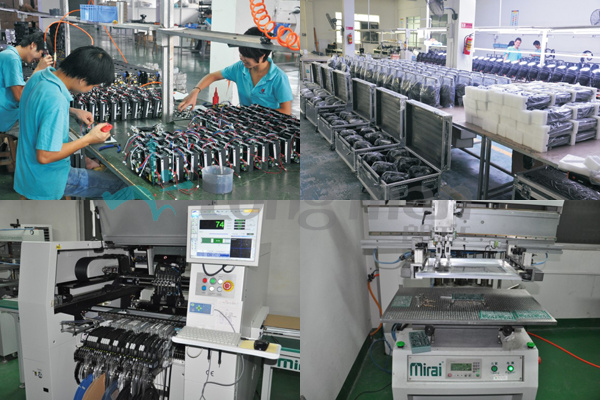

Factory and Equipments
FAQ:
1. Are you a factory or trading company?
Yes , We are a factory.
2. Where is your factory located? How can I visit there?
Our factory address is : A3,Yagang Industrial Zone ,Yagang Road, Baiyun District,
Guangzhou, China ,about 10 minutes away from Bai yun Airport by metro, then
we will go to pick you up from metro station, only 25minutes. All our clients, no
matter where you are from, all are most welcome to visit us !
3. Which products we have?
We produce different kinds of LED Light .
Our product:
A. LED Moving Spot and Wash Light ;
B. Studio Light;
C. Indoor Parcan Light ;
D. Professional Wash Light ;
E. Audience and DJ Light ;
F. Outdoor Parcan Light ;
G. Outdoor Washer Light ;
H. Black Light;
J. Control System;
K. Dramatic architectural and landscape lighting.
4. How to get the latest price?
If you want the latest price, Please Email or call us with the items names or NO.
What are you interested in ,together with your details(name,details address,telephone,etc),we will send to you as soon as possible.
5. Does the products have any certificate?
Yes, our products have CE,ROHS,UL, CCC and SGS certificate .
6. What's the Payment method?
All methods can be discussed.
7. How to Place an order?
Please kindly send us you order by email ,we will confirm the PI with you .we
wish to know the below:Delivery information,company name, address details,
phone/fax number,destination,transportation way ;Product information:item
number,size,quantity,logo,etc.Led wall washer light from China professional led wall washer light manufacturer.
If you have specific parameters and requirements for our led wall washer light,customization is available.| Technical Parameter |
1)Voltage input: AC 40-240V 47-63Hz, PF> 0.9
2)Volatage Output: DC64V, 1000mA driving, Sivewave dimming.
3)Rated Power: 64W(@220V 50Hz)
4)Luminaire Efficiency: > 0.9, Light Effiacy > 80lm/W.
5)LED Lumens: 36pcs*3W Cree XPE, total 5140 Lumens.
6)LED CCT: 28000K-8000K optional, standard 3200K
7)Field Angle(10%): standard 30 ° (61680Cd on axis)\8° \15° \45° \60° \60*1° Etc optional.
8)Control mode: Sivewave dimming, DimmerPack DSP1220 controlled by DMX
9)PWM frequency: PWM> 7.8KHz, video flcker free
10)Housing material: Extrusion 6063, anodized Matte balck, customized other color and barndoor.
11)Safty: Class II, 3C 2.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP65.
12)Operate temperature: -20~+45Celsius, Light board peak temperature rise 25Celsius
13)Cerficated: Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
14)Weight: 5KG, with double yokes or slide bracket.
15)Size: 1045*122*71mm
|
Guangzhou longman PRO light factory co. Ltd. (hereinafter the "company") is a professional manufacturing enterprise, we're collection of R&D, producing, and marketing. Since the company was founded in 2005 in guangzhou, China, we're focused on the independent research development and production of LED lighting product and equipment.
Three brands under the company: Longman brand oriented stage lighting; Ledmewish oriented landscape architectural lighting; And reichy oriented truss and the other equipment for stage lighting.
The main product range of lighting in this company was included: LED stage and entertainment lighting; LED architectural and landscape lighting; Stage truss, and some customer preconcert development for the commercial lighting product.
All the kinds of products with superior quality, novel style, precision technology and cost performance are widely accepted by the industry. At present, the company products have been exported to Europe, America, Australia, Middle East, and Africa and so on, which was more than 120 countries and regions.
Longman lighting dedicated itself to stage light industry with years of experience. We introduced advanced technic and talents in this industry and created featured design and manufacturing concept as well as set up scientific and effective management system and strict quality control system based on our strong technical accumulation and complete management system and good after-sales service. We have obtained multinomial international product certification including CE, RoHS, SGS, PSE, UL, CCC, TUV, Energy Star and so on.
Our company was on behalf of the advanced level in this industry on appearance, optical, electrical, thermal, and command etc., it accumulate the intellectual property, individua areas was made a major breakthrough, now we are further to "professionalization, internationalization, standardization, and branding".
Longman has had authorised distributors in Germany, Britain, Canada, America, France, Brazil, Mexico, Australia, Singapore, South Africa and other countries since established. Our company is based in guangzhou, and has regional offices in Shanghai, xi'an, chengdu in domestic.
We should strive unceasingly with one heart and one mind together based on mutual benefit to make the construction of China more splendent!
