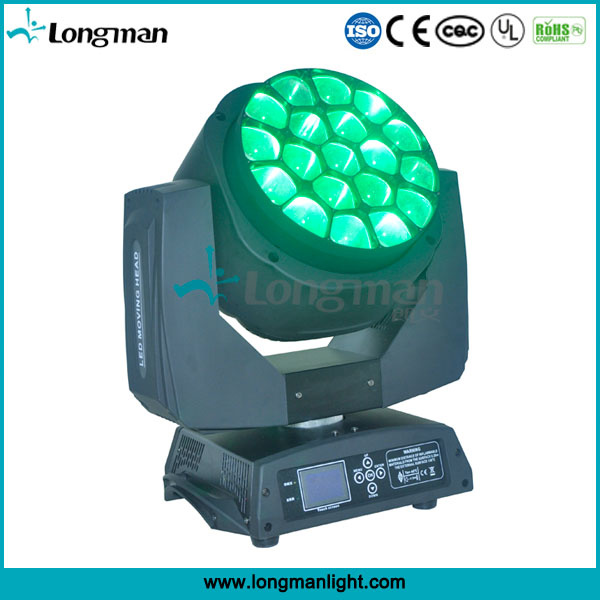

RoHS 19*15w RGBW DMX beam LED moving head light for djFeatures of moving head light:19 light Beam by 15W Ostar RGBW
light beam shape between hexagon and round,but even color mixing,SDC<0.005.
Linear Mechanical Focus,8-56 degree zoomable, could also be blossom beam.
Field angle 8 Degree,8660Lux@10 meter,widely zoomable angle available
Linear dimming for 0-100%, PWM>1500Hz,flicker free.
LCD Display could be set upside down for hanging easy view angle.
Worldwide AC input, with Powcon Blue/white soucket.
NTC function reduce the power output when LED working temperature is too high;
Reset precisely to right position, multi fixtures bite same steps.
Max8980Lumens output, to replace common LED render light.
Third generation optical desgin to have SMS technology and concaved lens zooming and still mix even.
An eye-popping beam,equal to 1/3 of 5R BEAM 200 3.8Deg.
One this baby is equal to 1 infinite bloosom effect light and 1 zoomable wash moving head.
Wide zoom range,qualified for all stages rendering and rental service.
Specifications of moving head light:Input voltage | AC 100-240V 47-63Hz,PF>0.7 |
Output voltage | DC24V,longevity 15000Hours |
Rated Power | 350 w(316@220V 50Hz) |
Luminaire Efficiency | >0.7,Light Effiacy >32.3lm/WLED |
LED Lumens | 19pcs*15W Ostar LED,1A driving,19 pixels,Full on 8980Lumens. |
LED Color | R=625nm,G=525nm,B=460nm,W=6500K,good Color mixing,Standard Deveation of Chromaticity<0.005. |
Light Beam(1%) | 8~56°mechanical zoomable,light beam shape between hexagon and round. |
Typical Intensity | 8°(866053Cd),30°(60570Cd),56°(22790Cd) |
Control signal | Meet E1.11 - 2004 USITT DMX512-A,32 bit precise dimming, smooth in low DMX Value dimming,no vision shock |
DMX Chanel | tandard 21CH,35/78/92/97 optional on menu. |
XY Moto | Pan 540°,Pan fine 2.1/255;Tilt 270°Tilt fine 1.0/255 |
Zoom Moto | Designed with SMS technology and concaved lens,mechanical Linear zoom |
Infinite Moto | blossom light effect depend on infinite rotate Moto to have 19 PCS independent light beam. |
Dimming | with linear dimming curves,PWM>1500Hz,video flicker free |
Strobe ability | ould be 0-20 F.P.S with asynchronous stroboscopic effect |
Display | LCD could be set upside down,turn off back light after 2 minutes no operation |
Heat sink | Use fins to conduct heat and vonvect to air by fans |
Housing material | ABS and QR235,standard Matte balck, with install bracket and fastdo screw. |
Soldering technology | 180ºCReflow Soldering,15000 hours Longevity for MCU mainboard,Moto board |
Conectors | Powercon blue soucket and 10A fuse,3XLR/5XLR. |
Safty | Class II, Endure 5ms 1.5KV shock,Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP20. |
Operate temperature | -20~+45ºC,Light board peak temperature 80ºC with NTC protection |
Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
Size | 42*26*49CM |
Weight | 15KG |

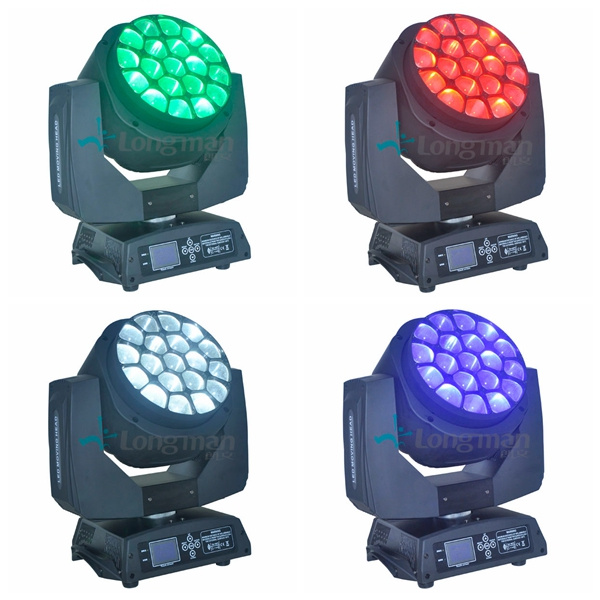

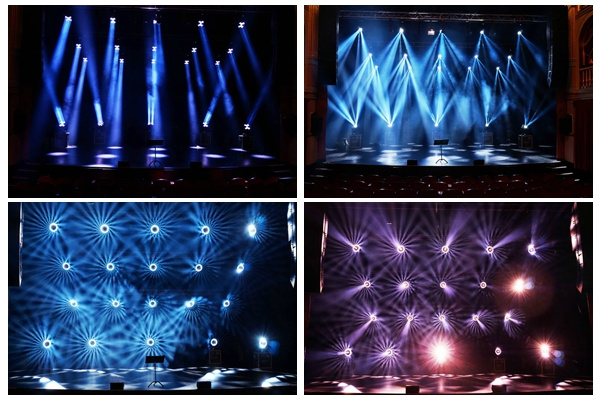

Producing pictures of moving head light:Effect picture of moving head light:Application of moving head light:FAQ:
1. Are you a factory or trading company? Yes , We are a factory. |
2. Where is your factory located? How can I visit there? Our factory address is : No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro. All our clients, no matter where you are from, all are most welcome to visit us ! |
3. Which products we have? We produce different kinds of LED Light . Our product: A. LED Moving Spot and Wash; B. Studio Light; C. Indoor Parcan; D. Professional Wash; E. Audience and DJ; F. Outdoor Parcan; G. Outdoor Washer; H. Black Light; J. Control System; K. Dramatic architectural and landscape lighting. |
4. How to get the latest price? If you want the latest price, Please Email or call us with the items names or NO. What are you interested in ,together with your details(name,details address,telephone,etc),we will send to you as soon as possible. |
5. Does the products have any certificate? Yes, our products have CE,ROHS ,UL and SGS certificate . |
6. What's the Payment method? All methods can be discussed. |
7. How to Place an order? Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details,phone/fax number,destination,transportation way ;Product information:item number,size,quantity,logo,etc. |
moving head light from China professional moving head light manufacturer.
If you have specific parameters and requirements for our moving head light , customization is available.
