LED Strip / LED Strip Light/Flexible LED Strip Light/RGB Flexible LED Strip Light
Description

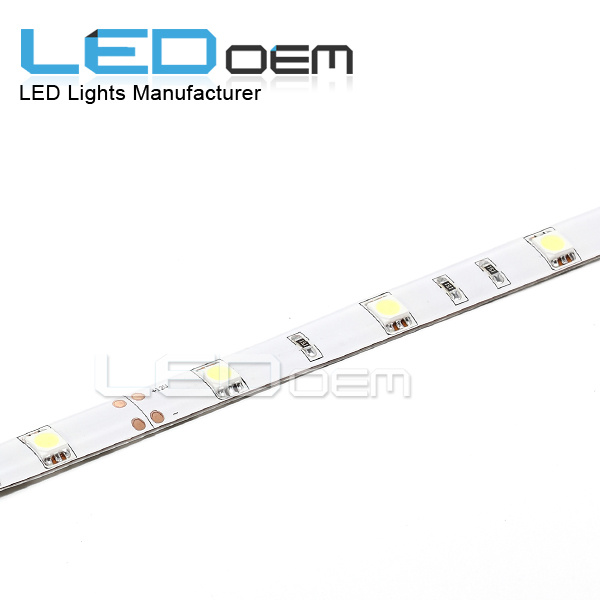

This waterproof flexible LED Strip Lighting 60PCS/m is a flexible, slim, high brightness, single color strip ideal for all interior applications. This LED light Strip is cuttable by 3PCS LED. You can DIY for your decoration projects.
Features:
1. Flexible LED strip easy for installation, with 3M adhesive on the back.
2. Runs on 12-voltage systems like solar cell charged batteries
3. Major reduction in power costs
4. 120-degree wide angle illumination
5. Long life: 50, 000hors
6. 5 meters/reel, cuttable every 3 LED
7. Better performance and more reliable quality
Specification:
Model No.: SZ-FS5050RGB-60-A
1. Type: SMD5050 Flexible LED strip
2. Dimension: 5000mm (L) x 10mm (W) x 3.0mm (Thickness) (5 meters/reel, 3-LEDs Cuttable)
Width of Flexible PCB board: 10mm
3. LED Quantity: 300PCS SMD5050 LED per reel
4. Color Range: RGB
5. Wavelength: R: 620-630nm, G: 510-525nm, B: 455-470nm, Y: 585-595nm
6. Energy Consumption: 72W per reel
7. Working Voltage: DC 12V
8. Current Consumption: 3A per reel
9. Beam Angle: 120 Degree
10. International Protection: IP20 (non-waterproof), IP65 (Crystal Epoxy Waterproof), IP66 (Solid Cover Tube Waterproof), IP67 (PVC+ Crystal Epoxy Waterproof)
LED Strip Application
The Flexible Light Strip is widely used to architectural decorative lighting, amusement park, theater & aircraft cabin mood lighting, emergency hallway lighting, auditorium walkway lighting, stairway accent lighting, concealed lighting, backlighting for signage letters, channel letter lighting, emergency exit path lighting and cove lighting.
|
Model |
LED Type |
LED Qty |
Color |
LED/Lumen |
Power |
Current |
Warranty |
|
SZ-FS5050RGB-30-A |
5050 |
30pcs/m |
RGB |
High brightness |
7.2w/m |
0.6A/M |
2years |
|
SZ-FS5050RGB-60-A |
5050 |
60pcs/m |
RGB |
High brightness |
14.4w/m |
1.2A/M |
2years |
|
SZ-FS5050RGB-30-B |
5050 |
30pcs/m |
RGB |
Ordinary brightness |
7.2w/m |
0.6A/M |
1years |
|
SZ-FS5050RGB-60-B |
5050 |
60pcs/m |
RGB |
Ordinary brightness |
14.4w/m |
1.2A/M |
1years |
Shenzhen Tengmei Technology Co., Ltd. Was founded in 2008, Our business activities include R&D, manufacturing, marketing and after service support.
Tengmei has 5 years of experience and uses the latest technology in its manufacturing. We specialize in LED Tubes, LED Bulbs, LED Panel light, LED Ceiling light, LED Track light, LED Spot light, LED Strip Lights, LED Down lights. Most of our products are exported globally including Europe and North America.
Tengmei has expanded rapidly in recent years. We have passed ISO 9001: 2000 quality management system and quality certifications including RoHS, CE etc.
Want to know more contact us today.
