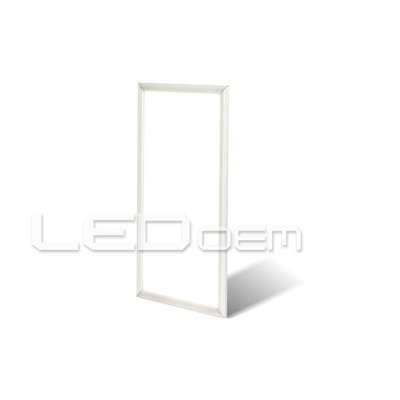

3030 27W LED panel light
Feature:
Energy saving, save up to 70-80% power than fluorescent tubes.
Ultra-slim, only 11mm thickness.
Refined workmanship with good corner seam joint.
Excellent thermal management and refined aluminum, lengthen the life span of LED light.
Long life span, more than 5 years.
Good lighting consistency, no dark spot.
Installation:
This product should be installed by trained electricians.
Check integrality of the products when unpack the packing.
The distance between the light and any flammable materials must not be less than 0.2m.
The distance between the upper part of the installed light and the ceiling must not be less than 2cm.
Please read and follow up the installation drawing carefully before the installation.
Application:
Hotels.
Conference / Meeting rooms.
Factories & Offices.
Commercial Purposes.
Residential / Institution Buildings.
Schools, Colleges & Universities.
Supermarket Lighting.
|
Specifications: |
|
Housing |
Aluminum + acrylic plates |
|
Work Environment |
Indoor use (applicable for dry environment) |
|
Part Number |
SZ-P306027W-A |
|
Input Voltage |
90-265V AC |
|
Power Consumption |
27± 0.5W |
|
Lighting Source |
SMD3014 |
|
LED Quantity |
240 pcs |
|
Operation Temperature |
-10~50 degree |
|
Color Temperature |
2700K-3000K(WW) |
4000K-5000K(NW) |
6000K-6500K(PW) |
7000K-8000K(CW) |
|
Lumens |
1800-2000lm |
|
Luminous Efficacy |
10-11lm/W |
|
CRI |
> 72 |
|
Beam Angle |
120 |
Shenzhen Tengmei Technology Co., Ltd. Was founded in 2008, Our business activities include R&D, manufacturing, marketing and after service support.
Tengmei has 5 years of experience and uses the latest technology in its manufacturing. We specialize in LED Tubes, LED Bulbs, LED Panel light, LED Ceiling light, LED Track light, LED Spot light, LED Strip Lights, LED Down lights. Most of our products are exported globally including Europe and North America.
Tengmei has expanded rapidly in recent years. We have passed ISO 9001: 2000 quality management system and quality certifications including RoHS, CE etc.
