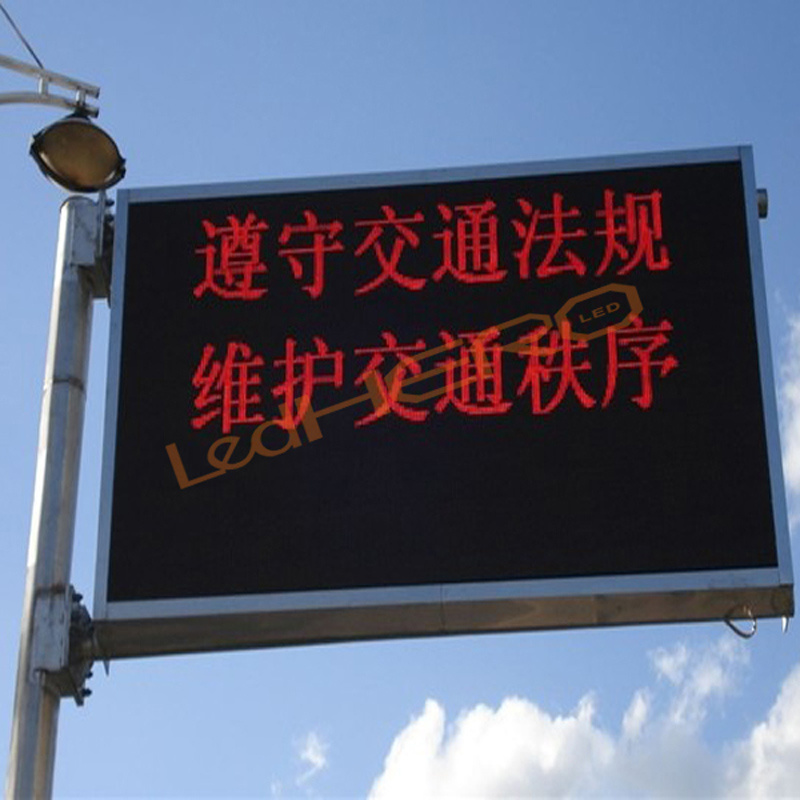

Waterproof Outdoor P25 Large LED Display for Traffic Guidance

Waterproof outdoor P25 Large LED Display for Traffic Guidance


specification:

Part Number	HERO-ODS4F
Resolution	8(H)×8/(V)
Pixel Pitch	25mm
LED Configuration	1R1PG1PB DIP
Pixel Density	1600 pixels/ m2
Module Size	200*200mm
Driving IC	MBI5024
Driving Method	Static Scan
Cabinet Weight	50kg/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	0.1mm
Optical Ratings
Brightness	10500cd/ m2
View Angle	30°/30°
Gray Scale	16 bits
Display COLOR	281 Trillion
Brightness Adjustment	0~100%
Power Supply
Operation Power	110V /60Hz ,220V/50Hz
Max. Power Consumption	480W/ m2
Average Power Consumption	190W/ m2
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60~85fps
Screen Refresh Frequency	>600Hz
Gamma Correction	-5.0~+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°~+60°
Operating Humidity	10~95% RH
Operating Life	100,000hours
MTBF	10000hours
Protection Level	~
Out of Control Rate	<0.02%


Description:

1. The screen's design with full consideration of outdoor usage, which adopts industrial standard, super high brightness (>5500nit) design, and able to provide precious information for drivers under blurry rainy weather.
2. The utilization of built-in wireless data transmission module helps achieve GPRS/3G long-distance real-time traffic information.
3. Equipping with intelligent control system, which enables automatic road information process and release, brightness control, temperature and humidity adjustment, supervision and warning for circulating condition. This realizes unmanned operation.
4. The built-in lighting protection device prevent our product from being burned due to lighting.
5. The sensitive control system automatically regulates the brightness of the display in accordance with the changes of light, greatly economizing electricity and reducing running cost costs.
6. Our product possesses IP65 protection level, which enables display working for you under rainy days.
7. High stability and long span.
8. Angle is small, to avoid light pollution.

Applications:

Widely used in Roads, highways, parking lots, pedestrian streets, intersections, electric power dispatch center, traffic command center, the military command center, space monitoring center, the city center and other high-definition display security monitoring sites.

Packing and transportation

Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.



About Hero

8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.

After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
