Home LED Light Products Transparency P10 Indoor Glass LED Display

Transparency P10 Indoor Glass LED Display

Transparency P10 Indoor Glass LED Display
Price: US $ 1600-2100/Square Meter
Trade Terms: FOB,CFR,FCA
Min Order: 1/Square Meter
Pay Type: T/T

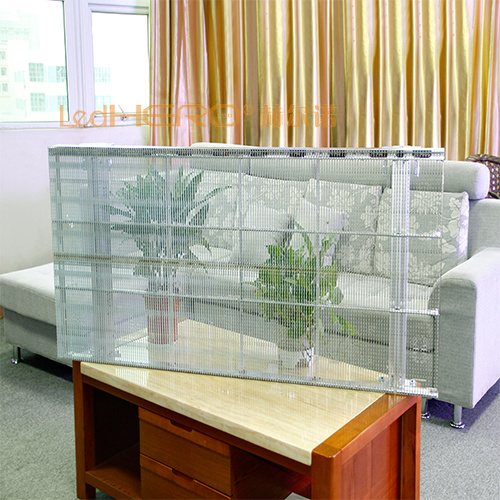

transparency P10 indoor glass led display
specification:

Part Number

HERO-ID

Resolution

32(H)×32(V)

Pixel Pitch
10mm

LED Configuration

1R1G1B SMD3528

Pixel Density
10000pixels/ m2

Module Size
320*320mm

Driving IC

MBI5024

Driving Method

Static Scan, Constant Current

Cabinet Weight

15kg/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

±0.25

Optical Ratings

Brightness

4000~4500cd/ m2

View Angle

140°/140°

Gray Scale

16bits

Display COLOR

281 trillion

Brightness Adjustment

0~100%

Power Supply

Operation Power

AC220V/50HZ or AC110V/60Hz

Max. Power Consumption

1500W/ m2

Average Power Consumption

390W/ m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60-85HZ

Screen Refresh Frequency
300-1000HZ

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024x768,1280x1024,1600x1200,1920x1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

10000hours

Protection Level

~

Out of Control Rate

<0.02%


Description:
1.High transparency above 80%,can see through from the inside to the outside clearly.
2.Light weight,about 12kg/m2,few load to the glass wall,10mm thickness,occupies little space.
3.Easy installation and convenient maintenance,safe and stable.
4.Comparing to LED lighting product,it has better advertising benefit and will save much cost,wont change the building appearance.
5.Energy saving,no need cooling system and air-condetioner.good heat dissipation andanti-oxidation protection.
6.Easy operation by synchronous control,program can be changed anytime.

Wide use range:

Can be widely used for shop Window advertising and building video wall and anywhere behind the glass wall.

Packing and transportation:

Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.



About Hero:

7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.

After-sale service:

1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.


Officer website: Http://www.led-hero.com
Prod Model: P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifespan: 100,000 Hours
Warranty: 2 Years
Factory Price: Available
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 10mm
Pixel Configuration: 1R,1G,1B
Pixel Density: 10,000 dots / m²
Scanning Mode: 1/16 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Advertising
IP Rating: IP43
Certification: CCC
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.

"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.

"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.

Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.

To select Hero, you will win the promise of a hero!
