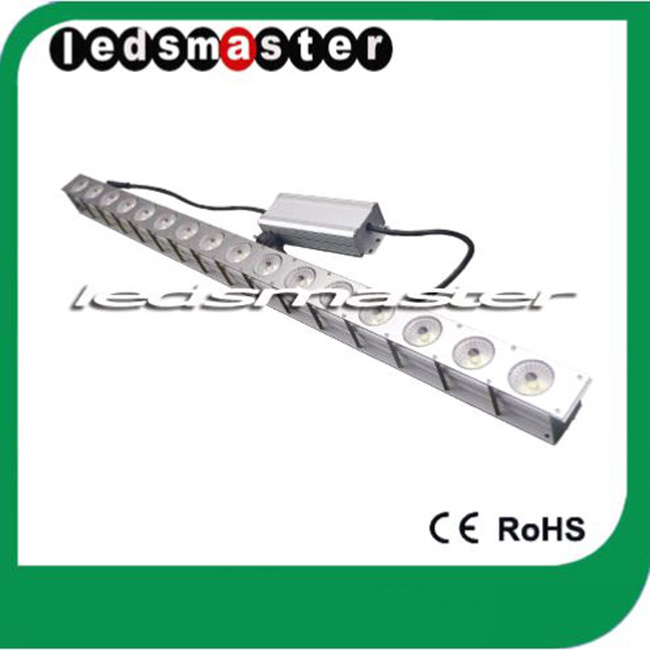

Feature:
* Brightest Strip Light with high efficiency in the world!
* Premium Precise Optical Lens System, 2-10 times brighter than conventional
light
* Modular Design, Easier Maintenance
* Meanwell 5 year warranty power supply
* Direct Heat Path Technology, 2-5 times better stability
* Anti-Glare System, suitable for any occasions
* IP66, underwater use support
* 3 Years Warranty!
TECHNICAL
ITEM | IP66 f Waterproof LED L L L L |
ITEM NO | LS-FL S110 |
Power | 110W |
Light Source | Epistar /B x rigelux Power Chip |
Input Voltage | 90 -2 65 VAC 50-60HZ |
Power Factor (PF) | ≥0.95 |
Power Efficiency | ≥ 90% |
Color Index(CRI) | Ra >65 |
Light Angle | 10° ,40°,60°,90° |
Color Temp: | 2800-3500K 5000-6000K 6500-7500K |
LED Luminous Efficiency | 100lm / / / / Watt |
Luminous Flux (Typ.) | 4000lm |
Equal Flux (Typ.) * | 8000 lm |
Life Span | ≥ 80000 hours |
Work Temperature: | - 25 ° C ~ 55 ° C |
Storage Temperature: | - 40° C ~ 80° C |
Working Humidity | 10 % ~ 90 % RH |
IP Rating | IP66 |
Light Attenuation(80000h) | 30% |
Light Body Size (LxWxH) | 465x50x77mm |
Lamp Net Weight | 1.9 |
Package Size: | 565x100x100mm |
Total Weight | 2.5 |
40W LED p Strip t Light t Test Report
t Test : Item: 40 t Watt p Strip Light
t Test : Company: t Independent y Laboratory Testing
t Test : Date: From t Feb.1st 1 2011 o to t Oct t 11st 2011
. 1. e Life Span t Test Project
t Test Method:
Light Fixture maintains bright in constant temperature and humidity environment,
temperature range should be within 45+/-2 degree, relative humidity is no more than
60% ,wind speed is less than 0.05m/s. Light Fixture is driven of the constant temperature
and humidity environment, adjust the ambient temperature to 25+/-2 degree. The
measure it with power
Test
Hour(H) | Light Flux(LM) | DC Voltage | DC Current(A) | Preservation e Rate of light |
1 | 110000lm | 31.33 | 35 | 100% |
1000 | 107800lm | 31.35 | 35 | 98% |
2000 | 107360lm | 31.30 | 35 | 97.6% |
3000 | 106150lm | 31.35 | 35 | 96.5% |
4000 | 104500lm | 31.28 | 35 | 95% |
5000 | 103730lm | 31.37 | 35 | 94.3% |
6000 | 102850lm | 31.37 | 35 | 93.5% |
Estimated e life Span:
According To energy star requirements for LED life Spain, light saving rate is 93.50%
for 6500hours and life span is greater than 80000 hours
e Failure Determined:
When retention rate is less than 70%, we regard it as led failure. The Visible
brightness is observed obviously down, central color temperature shifts seriously, the
basic lighting requirements for customers or Users can not be satisfied, or it has bad effect
to the eyes of users. Failure time: generally 100000hours.
. 2. c Opto-electric t test project:
p Lamp Parameters:
Input Power AC(W) Rated 1050
Measured 1049
Power Factor Rated 0.95
Measured 0.95
Input Frequency (HZ) Rated 50~60
Measured 50
Color Temperature (K) Rated 2800-7500
Measured 6750
Luminous Flux (lm) Rated 1 10000
Measured 115400
Input V oltage (V) Rated 30-34
Measured 31.3
Input Current (A) Rated 35
Measured 35
Luminary Efficiency (lm/W) Rated 110
Measured 115
Color Index (RA) Rated 65
Measured 70.5
Test Instruction
1. The Luminous surface of fixture is horizontal
2. LED Driver is inbuilt type.
3. Light Source: LS-HPEPY100M50CW-A11 10pcs
4. Keep the light on for 2 hours when measured; write down the numbers after the light
source is stable
5. Test Environment temperature: 25+/-1C, Humidity: 61+/-10% RH
6. Photometric Test Condition: Use The Sphere- Radiometer to test optical and color
Parameters: Integrating sphere diameter-1.5, inner ball coating is barium sulfate,reflection
rate 90-95% . Measuring method-4%,the spectrum range is 380-790nm
7. Uncertainty explanation: under impact from test environment and temperature, the
system inaccuracy of testing instruments will further impact the test results
d Referred t test standard: IES LM-78:2008, IES LM-79:2008, IES LM-80: 2008,
US Energy star, LED TEST(Version 2),CIE 127:2007,ISBN 978 3 901 906 589
