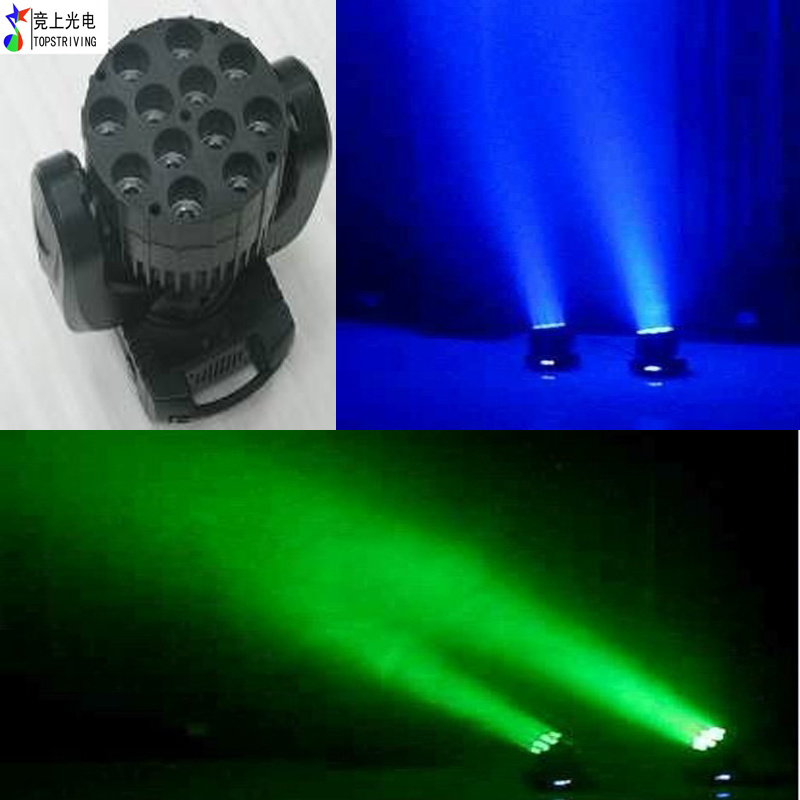

LED BEAM 12
TECHICAL SPECIFICATIONS:
Power supply: 90-240 AC 50/60 Hz
Power consumption: 200W
100, 000 hours of LED life
12 PCS* 12W USA CREE MCE 4 in1 12W RGBW high MCD LEDs
DMX-control-channels: 13/28
DMX-512-connection: 3-pin XLR
Operational modes: DMX, Master/Slave, Stand Alone & Sound Active
16 bit smooth and precise resolution for pan/tilt movement
X/Y auto repositioning, 0-100% linear dimmer,
Tilt: 270-degree, LCD DMX menu system
Fan cooled, Shutter: Pulse effect; Random strobe slow to fast
Pan: 540-degree
Stepper motors with micro stepping
Dimensions: 310*260*150mm
Weight: 5.10kgs
Maximum ambient temperature ta: 45° C
OUR SERVICE:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design
And put into product without any charges
3. Shipping method: DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
4. Promised After-sales Service
5. Definitely high brightness with good material inside
6. Customised LED Quantity Design
|
Function of the control channels |
|
13-channel mode |
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
Vertical movement (Tilt) |
|
Channel 3 |
strobe from slow to fast |
|
Channel 4 |
master dimmer from slow to fast |
|
Channel 5 |
red dimmer from 0-100% |
|
Channel 6 |
green dimmer from 0-100% |
|
Channel 7 |
blue dimmer from 0-100% |
|
Channel 8 |
white dimmer from 0-100% |
|
Channel 9 |
color macros |
|
Channel 10 |
preset shows |
|
Channel 11 |
blackout when PAN/TILT moving, reset, sound active |
|
Channel 12 |
increasing brightness, then decreasing brightness, color changing |
|
Channel 13 |
running speed adjustments of channel 12 preset shows |
|
|
|
28-channel mode |
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
pan fine 16 bit |
|
Channel 3 |
Vertical movement (Tilt) |
|
Channel 4 |
tilt fine 16 bit |
|
Channel 5 |
pan/ tilt running speed adjustments |
|
Channel 6 |
strobe from slow to fast |
|
Channel 7 |
master dimmer from slow to fast |
|
Channel 8 |
red 1 dimmer from 0-100% |
|
Channel 9 |
green 1 dimmer from 0-100% |
|
Channel 10 |
blue 1 dimmer from 0-100% |
|
Channel 11 |
white 1 dimmer from 0-100% |
|
Channel 12 |
red 2 dimmer from 0-100% |
|
Channel 13 |
green 2 dimmer from 0-100% |
|
Channel 14 |
blue 2 dimmer from 0-100% |
|
Channel 15 |
white 2 dimmer from 0-100% |
|
Channel 16 |
red 3 dimmer from 0-100% |
|
Channel 17 |
green 3 dimmer from 0-100% |
|
Channel 18 |
blue 3 dimmer from 0-100% |
|
Channel 19 |
white 3 dimmer from 0-100% |
|
Channel 20 |
red 4 dimmer from 0-100% |
|
Channel 21 |
green 4 dimmer from 0-100% |
|
Channel 22 |
blue 4 dimmer from 0-100% |
|
Channel 23 |
white 4 dimmer from 0-100% |
|
Channel 24 |
color macros |
|
Channel 25 |
preset shows |
|
Channel 26 |
blackout when PAN/TILT moving, reset, sound active |
|
Channel 27 |
increasing brightness, then decreasing brightness, color changing |
|
Channel 28 |
running speed adjustments of channel 12 preset shows |
