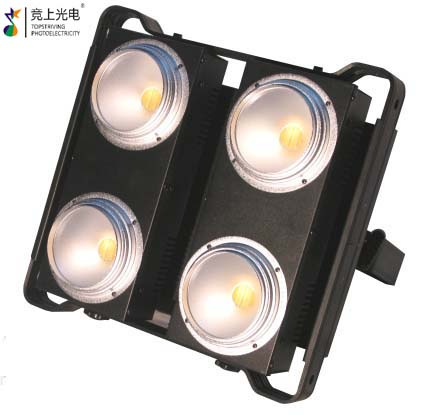

COB LED BLINDER 4 CW/WW is one of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.
*CRI(Color Rendition Index):Ra:95
*projection can be adjusted from 0-70° as desired manually;
**safety wires included;
*Power in powerCON/blue, Power out powerCON/grey equipped;
*blue LCD display;
*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free;
*four dimming modes: linear, S-curve, Square law, Inverse square law;
*molded aluminium plus silent fans for excellent ventilations;
*PFC electronic power supply;
*beam angle 53°,field angle 68°;
*Equipped with 4*LED COLD WHITE/WARM WHITE TWO IN ONE 100W , total 400W, 50,000 hours
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*molded reflector for very even projections;
*molded decoration covering looking professional;
AC 100-240V 50/60Hz
Power consumption: 430W
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity
12/14 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20ºC to 40ºC
Hanging brackets included: floor stand
Net weight: 8.25kgs
Dimensions: 395*370.5*200mm(L*W*D)(hanging bracket placed vertically)
INNER PACKING CARTON DIMENSIONS:46*44*27cm
GROSS WEIGHT:9.45kgs
DMX FUNCTIONS
12-CHANNEL MODE
Channel 1 - cold white I from darkness to full brightness
Channel 2 - warm white I from darkness to full brightness
Channel 3 - cold white II from darkness to full brightness
Channel 4 - warm white II from darkness to full brightness
Channel 5 - cold white III from darkness to full brightness
Channel 6 - warm white III from darkness to full brightness
Channel 7 - cold white IV from darkness to full brightness
Channel 8 - warm white IV from darkness to full brightness
Channel 9 - master dimmer from darkness to full brightness
Channel 10 -strobe
Channel 11 -dimmer mode selections
Channel 12 -dimmer duration
14-CHANNEL MODE
Channel 1 - cold white I from darkness to full brightness
Channel 2 - warm white I from darkness to full brightness
Channel 3 - cold white II from darkness to full brightness
Channel 4 - warm white II from darkness to full brightness
Channel 5 - cold white III from darkness to full brightness
Channel 6 - warm white III from darkness to full brightness
Channel 7 - cold white IV from darkness to full brightness
Channel 8 - warm white IV from darkness to full brightness
Channel 9 - master dimmer from darkness to full brightness
Channel 10 -strobe
Channel 11 -dimmer mode selections
Channel 12 -dimmer duration
Channel 13 -color changing
Channel 14 -color fades
