Features:

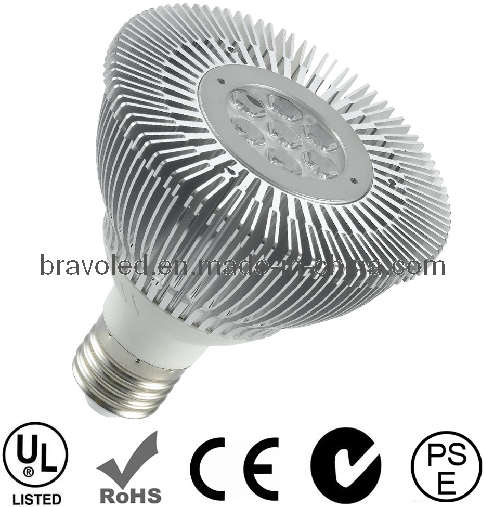

* item number: Bl-PAR38-7XPE
* LED chip q'ty: 12PCS LED
* base type: E27/E26
* LED type: CREE XPE
* available input voltage: 85~145V AC and 190~265V AC
* applicable dimmers: Triac dimmer for lutron, teviton, legrand, CE, orsam etc.
* input power: 13.0W
* output power: 12.8W
* total length: 120(dia. ) x 125mm
* output current: 350ma
* lumen output: CREE XPE: WW: 630lm, CW: 840lm
* color range: 2, 700~6, 500K
* beam angle: 15, 25, 45 degrees
* reflector efficiency: 90%
* life span: >50, 000 hours
* body temperature: <65° C
* LED working temperature: <72° C
* CRI: Ra> 80
* net weight: 350g
* housing material: Aluminium extrustion
* no UV or IR radiation
* certification: CE, RoHS, c-tick, UL listed ( e346471)
* application
Applicable for PWM control dimmer, recommendation voltage of 85~285V and wattage of 30~350W, working with 90% of dimmers being sold in market. Plug-in replacement of current traditional lamps, no change required for dimmers and(or) circuits
* outstanding performance
Effiecent > 80%, pf > 0.9, life span > 50, 000 hours.
These series are for spotlights with CREE XP LED which is replacing currently common used xre, XP has better performance than xr by 7~10%, and with lower price trend.
Item Number |
BL-PAR38-7XPE |
UL File # |
E346471 |
Voltage |
85~145V AC/190~265V AC |
Lumens |
WW: 630lm/CW: 8400lm |
Dimmable |
YES |
Dimmension |
¢ 120 x 125mm |
Available Base |
E26/ E27 |
Weight |
350g |
LED Type/ QTY |
CREE XPE / 7pcs |
Power Consumption |
13.0W |
