Home LED Light Products UL Dlc 120W LED Light High Bay

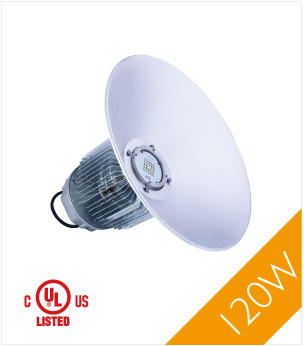

UL Dlc 120W LED Light High Bay

UL Dlc 120W LED Light High Bay
Price: US $ 130/Piece
Trade Terms: FOB,EXW,others
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
UL DLC 120W LED Light High Bay with Samsung Chips, Meanwell Driver Features 1) Heat sink is designed to be integrated with housing, which improves heat dissipation condition and reduces junction temperature. 2) Anodized heat sink, housing surface is coated with anti-static powder, and anti-rusted treated, the entire unit is with IP65 rated. 3) Imported high lumen LED chip, the SMD LED source is assembled by patented packing knowledge, single SMD LED is with 10~100W, the lumen output is up to 100lm/W. 4) LED driver with efficient as high as 91%, high accuracy and long lifespan. 5) Wide AC input 85V~265Vac/47~63Hz, universally available. 6) International EMC Passed Application Workshop, toll gate, exhibition centre, gymnasium, ware house, gas station, parking area etc. Our Best- selling Lines: Dimmable high power LED Spotlight (AR111, MR11, MR16, GU10, PAR20, PAR30, PAR38), LED bulb, LED tube (T5/T8/T10), LED down light, LED panel lighting LED flood light and high bay light.
Input  Voltage  Range 85-285Vac 249~525v ac
Frequency  Range 47Hz~63Hz
Inrush  Current 40A@  220Vac  Input  ; Cold  start
Power  Factor 0.95
LED  Type Samsung 3535
The  Q' ty  of  led 44  pcs
Led  Consumption 120W
Lamp  Consumption 125W
Led  Luminous  Efficiency 100Lm/W
Led  Initial  Flux 13600  Lm
Color  Temperature 5000~7000k
Color  Rendering  Index Ra> 75
Beam  angle 45° /90° /120°
LED  Junction  Temperature  @35 75
Working  Temperature -20~+55
Working  Life-span  70% 50000H
C able VDE  H05RNF  3G0.75mn
Prod Model: BL-HB03-120W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor: >0.8
Outdoor Application: IP65 Qualified
Light Source: Samsung 3535
LED Life Span: 50, 000 Hours
Product Warranty: 5 Years
CRI: Ra>80
LED Color: Warm White, Neutral White, Cool White
Body Material: Aluminum
Lighting Bulbs & Tube: Energy Saving
IP Rating: IP65
Projection Distance: >35m
Operating Voltage: 90-277V
Application: Warehourse, Underground Parking Lot, etc.
Certification: Dlc, UL, cUL, CE, PSE, RoHS
Company Profile

Bravoled Lighting Manufacturing Co., Limited was founded in 2006 and specializes in development, design, manufacturing and sales of indoor and outdoor LED lighting fixtures, is located in Shenzhen with workshop of 25, 000 square feet and 100 employees, products are mainly ship to Europe, USA, Canada, Australia, and Japan, ect, and all product to Japan with PSE certification. Monthly capacity is approx. 30, 000 units, As one of professional LED lighting products manufacturers, Bravoled owns advanced production facilities and strong product development capabilities, always pursuits high product quality and best service level, constant improvement and innovation, Bravoled Indoor lines mainly cover LED tube light, LED spotlight, LED global bulb, LED Ceiling light etc. Outdoor lines mainly cover: LED floodlight, LED streetlight, LED high bay light, Lighting source are always imported brand name such as, CREE, SemiLED, Bridgelux and Lumenmax etc., all of products are IEC and EMC standard qualified and CE, Rhos, C-tick FCC, UL, cUL, DLC, Energy star, PSE certified.
