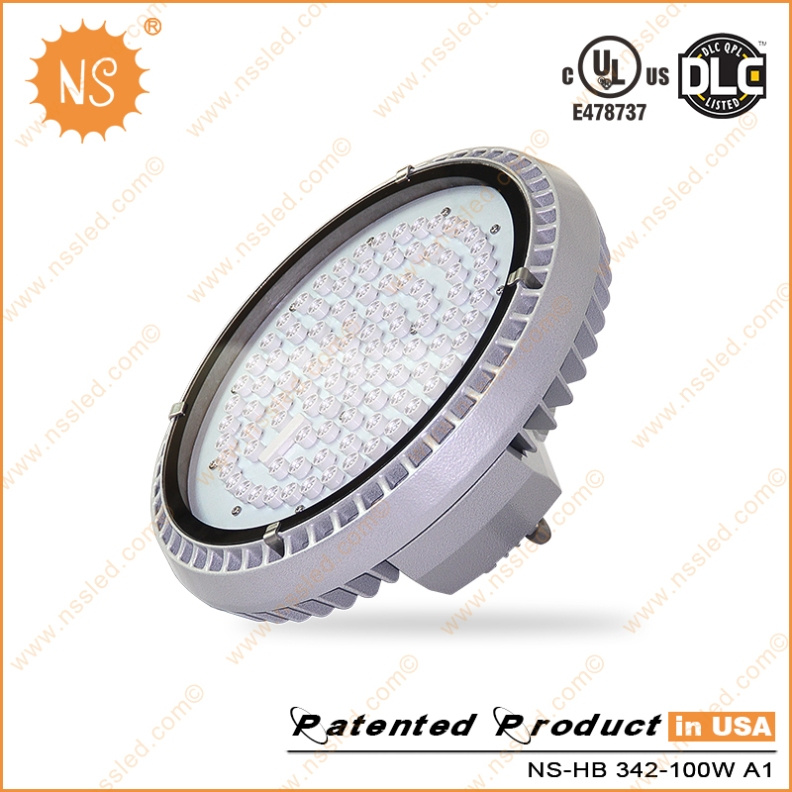

UL(478737) DLC listed 12000lm 100W New led high bay
Product Information
Part Number: NS-HB342-100W-B1
Item Weight: N\W: 6KG, G\W: 7KG
Product Dimensions:Dia 13.5*7.63 inch
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Die-Cast housing
Wattage: 100watts
Item Package: Quantity 1
Luminous Flux: 12000lm
Certification: UL cUL DLC
Patent Design: United States and European Union
|
30W | 60W | 100W | 150W | 200W |
| Item | NS-HB252-30W | NS-HB252-60W | NS-HB342-100W | NS-HB342-150W | NS-HB342-200W |
| Led source | Osram | Osram | Osram | Osram | Osram |
| IP grate | IP65 | IP65 | IP65 | IP65 | IP65 |
| Valtage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| CCT(K) | 2600~7000 | 2600~7000 | 2600~7000 | 2600~7000 | 2600~7000 |
| Lumen(LM) | 3000~3600 | 6000~7200 | 10000~12000 | 15000~18000 | 20000~24000 |
| CRI | >70 | >70 | >70 | >70 | >70 |
| Net Weight | 4kg | 4kg | 6kg | 6kg | 6kg |
| Size(L*W*H) | dia 9.92*7inch | dia 9.92*7inch | dia 13.5*7.63 inch | dia 13.5*7.63 inch | dia 13.5*7.63 inch |
| Equivalent | 100W MHL/HPS | 175W MHL/HPS | 300W MHL/HPS | 400W MHL/HPS | 600W MHL/HPS |
| Certificate | UL,DLC | UL,DLC | UL,DLC | UL,DLC | UL,DLC |
| Lifespan | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours |
| Warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty |
| Operating Tep | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) |
Technical Details
Eco-Friendly and energy saving
ul led high bay Metal halide 300W Replacement
Products be free of charge within 6 month of replacement service,5 years warranty for repair parts.
Product Information
Part Number: NS-HB342-100W-B1
Item Weight: N\W: 6KG, G\W: 7KG
Product Dimensions: 13.5*13.5*17 inch
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Die-Cast housing
Wattage: 100watts
Item Package: Quantity 1
Luminous Flux: 12000lm
Certification: UL cUL DLC
Patent Design: United States and European Union
ul led high bay Technical Details
Product Specifications:
1. Lamp Type: ul led high bay
2. Install: Mounted
3. Rating Power(W): 100W
4. Luminous Flux(lm): 12000LM
5. Input Voltage: 100~300VAC, 50/60Hz
6. LED chip: 150PCS, Osram
7. Color Temperature(K): 2700-6500K
8. Beam Angle: 30 60 90 120 degree
9. Operation temperature: -20C~50C
10. Storage temperature: Normal temperature
11. Storage humidity: Normal humidity
12. Life Time (Hrs): 50000H
13.Waterproof Rating: IP65
100W New LED high bay lamp Advantage:
1, Die-Cast housing with UV resistant powder coating
2, UL/CUL DLC listed,suitable for wet location,IP65
3, High impact polycarbonate diffuser
4, Operating temperature: -20°C to 50°C
5, THD<15%,Power Factor >0.9
6, 5 years warranty
6. Instant start, No flickering, No humming
7. Easy to install and operate
Package details:
ul led high bay inner box size:22.9*15.8*7.1inch
Carton size :22.9*15.8*7.1inch,1PCS/CTN, G.W.: 7KG
Notice:
1. Make Sure To Cut Off The Power Before Install 100W New LED high bay lamp
2. Not suitable for dimmers or electronic switches or remote controls
