A LED Filament light bulb is an electric light bulb which produces light with a LED that is shaped as a filament.,It just like their traditional incandescent bulbs
Unique new LED technology that allows for very small LED emitters to be arranged in a linear filament style package.
These emitters are then powered using a traditional glass insulated circuit similar to that found in a traditional incandescent bulb.
The end result is a bulb that functions and looks virtually identical to an incandescent.

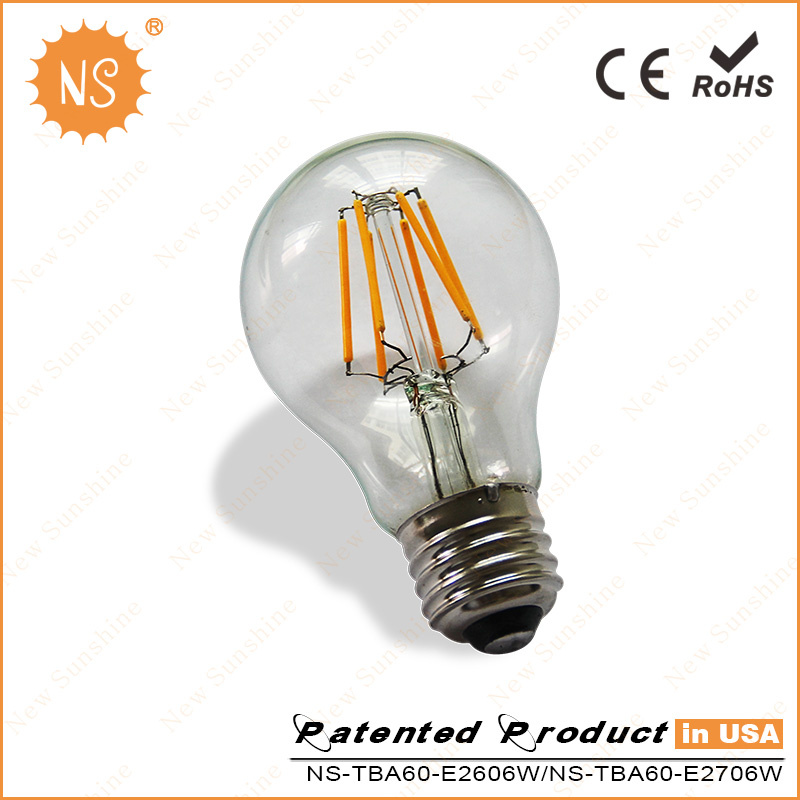

A60 6W LED filament bulb light
Product Information
Part Number: NS-TBA60
Product Dimensions: Dia2.36*H4.33
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Glass
Shape: Tradition A60
Wattage: 6 watts
Item Package: Quantity 1
Luminous Flux: 600lm
Certification:CE
More choice for LED filament bulbs
Item | NS-TBC32 | NS-TBC35 | NS-TBG45 | NS-TBA60 | NS-TBST64 | NS-TBT30185 |
| Mode Number | C32 | C35 | G45 | A60 | ST64 | T30 |
| Lamp Pwer(W) | 2W/4W | 2W/4W/6W | 2W/4W | 4W/6W/8W | 4W/6W/8W | 4W/6W/8W |
| Lumen(LM) | 183-215 | 183-215 | 183-215 | 387-452 | 387-452 | 387-452 |
| 387-452 | 387-452 | 387-452 | 500-552 | 500-552 | 500-552 |
| 500-552 |
| 765-893 | 765-893 | 765-893 |
| Base | E12/E14 | E12/E14 | E12/E14 | E26/E27 | E26/E27 | E26/E27 |
| E26/E27 |
| Size | D1.26*H3.67in | D1.38*H3.86in | D1.77*H3.15in | D2.36*H4.33in | D2.52*H5.61in | D1.18*H7.28in |
| CCT(K) | 2600~6500 | 2600~6500 | 2600~6500 | 2600~6500 | 2600~6500 | 2600~6500 |
| Valtage(V) | AC100-120 | AC100-120 | AC100-120 | AC100-120 | AC100-120 | AC100-120 |
| AC200-240 | AC200-240 | AC200-240 | AC200-240 | AC200-240 | AC200-240 |
| CRI | >80/90 | >80/90 | >80/90 | >80/90 | >80/90 | >80/90 |
| Lifespan | 30,000hours | 30,000hours | 30,000hours | 30,000hours | 30,000hours | 30,000hours |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
| CCT(K) | 2600~6500 | 2600~6500 | 2600~6500 | 2600~6500 | 2600~6500 | 2600~6500 |
Product features
1, 360 degree beam angle.
2, Energy-saving and environment-friendly.
3, Instant start hot LED filament bulb, no decay and flickers.
4, IC Driver, constant current, safety guaranteed.
5, More than 30,000hrs lifespan .
6, No UV and IR radiation, No mercury.
7, Brighter than traditional incandescent bulbs.
The light bulb is supplied with electric current by feed-through terminals or wires embedded in the glass.
Most bulbs are used in a socket which provides mechanical support and electrical connections.
The LED filament is composed of a series of LEDs on a transparent substrate, referred to as Chip-On-Glass (COG).
These transparent substrates are made of glass or sapphire materials. This transparency allows the emitted light to disperse evenly and uniformly without any interference.
The COG material is then coated with an even coating of Phosphor material.
Compared to other LED lights, LED Filament lights are omni-directional.
The filament comprises a strip of LEDs that are set in a fluorescent compound.
Notice:
1. Make sure To Remove Or Bypass The Electronic Ballast In The Fixture Before Install LED Filament bulbs
2. Make Sure To Cut Off The Power Before Install
3. LED Filament bulbscould use in the unventilated fixture in enough space
4. Suitable for dimmers or electronic switches or remote controls
