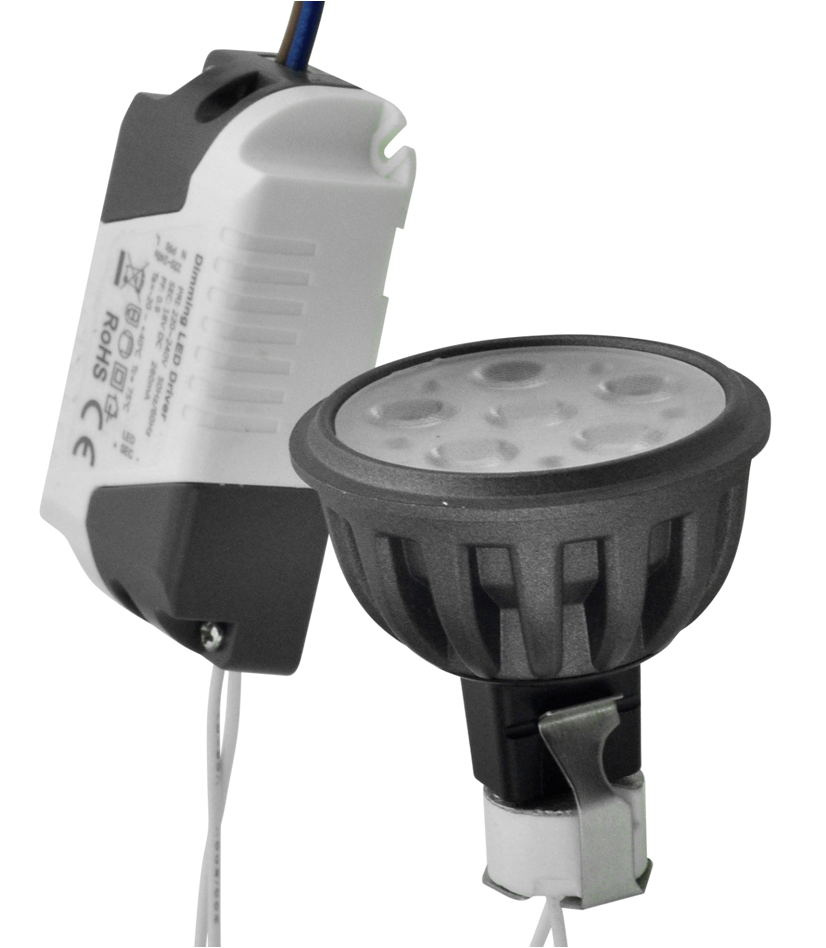

TUV LED Spotlight MR16 6W with External Dimmable Driver

Name: TUV LED Spotlight MR16 6W with External Dimmable Driver
Brand: yourledlight.com
SKU: 776345165
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	US $ 4-8/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Leiso Lighting (Dongguan) Tech. Limited

Showroom Product Company Profile

1. Specification details
Model No.: LS-S505-MR16-ED-EWW/EW
Input Voltage : 100~240V AC
Power : 6W
LED Type : LG Chip
Luminous efficiency : 450Lm(2700K), 470Lm(3000K), 500Lm(4000K), 530Lm(5500K)
Color temperature : 2700K, 3000K, 4000K, 5500K for option or customization according to your requirements.
Color rendering index : Ra ≥ 80 or customization according to your requirements.
Beam angle : 24 ° / 36°
Dimmable : NOT
Products size : Φ50×48mm
Material : aluminum alloy
N.W : 8.2Kg
G.W : 8.7Kg
Color case : 52×52×62mm
Carton size : 540×270×160mm
Package QT'Y: 100 Pcs
Warranty : 3 years

2. The advantages and characters
2.1 Adopt LG chip or Nichia Chip with high luminous effeciency;
2.2 The die-casting aluminum housing have good thermal conductivity for heat dissipation;
2.3 Directly replace 50W halogen lamp, energy conservation at least 85% or more;
2.4 Long lifetime for 35,000 hours, if calculating as 4 hours everyday, its average lifespan can reach more than 23 years;
2.5 No infrared and ultroviolet radiation;
2.6 With CE, CB, TUV, GS, EMC, SAA, ERP and RoHS certificate.

3. Technica Parameters of S505 series MR16 & GU10 SMD type

Item No.	Specification	Power	Lumens(CCT)	Product Dimension	Voltage	Dimmable	Packing Data
							CTN Qty	CTN Dimension	Volume weight	Gross weight
LS-S505-MR16-EWW/EW	* 5.5W MR16 Spotlight * LG SMD 3030 * Beam angle:24/36° * Lifespan≥35,000Hrs	5.5W	CRI >80, 450 lm (2700K) CRI >80, 470 lm (3000K) CRI >80, 500 lm (4000K) CRI >80, 530 lm (5500K)	Φ50*H48mm	12V DC / AC	NOT	100	54x27x16cm	4.7kg	7.7kg
LS-S505-GU10-EWW/EW	* 6W GU10 Spotlight * LG SMD 3030 * Beam angle:24/36° * Lifespan≥35,000Hrs	6W	CRI >80, 450 lm (2700K) CRI >80, 470 lm (3000K) CRI >80, 500 lm (4000K) CRI >80, 530 lm (5500K)	Φ50*H55mm	100~240V AC	NOT	100	54x27x16cm	4.7kg	8.6kg
LS-S505-GU10-EWWD/EWD					220~240V AC	YES
LS-S505-MR16-ED-EWW/EW	6W MR16 Spotlight LG SMD 3030 * Beam angle:24/36° * With external driver * Lifespan≥35,000Hrs	6W	CRI >80, 450 lm (2700K) CRI >80, 470 lm (3000K) CRI >80, 500 lm (4000K) CRI >80, 530 lm (5500K)	Φ50*H48mm	100~240V AC	NOT	100	54x27x16cm	4.7kg	8.6kg
LS-S505-MR16-ED-EWWD/EWD					220~240V AC	YES
LS-S505-MR16-A-NWW/NW	* 6W MR16 Spotlight * Japan Nichina LED * Beam angle:24/36° * Lifespan≥35,000Hrs	6W	CRI >80, 480 lm (2700K) CRI >80, 500 lm (3000K) CRI >80, 550 lm (4000K) CRI >80, 580 lm (5500K)	Φ50*H548mm	12V AC / DC	NOT	100	54x27x16cm	4.7kg	7.7kg
LS-S505-MR16-ED-NWW/NW	* 6.5W MR16 Spotlight * Japan Nichina LED * Beam angle:24/36° * With external driver * Lifespan≥35,000Hrs	6.5W	CRI >80, 480 lm (2700K) CRI >80, 500 lm (3000K) CRI >80, 550 lm (4000K) CRI >80, 580 lm (5500K)	Φ50*H48mm	100~240V AC	NOT	100	54x27x16cm	4.7kg	8.6kg
LS-S505-MR16-ED-NWWD/NWD					220~240V AC	YES
LS-S505-GU10-A-NWW/NW	* 6.5W GU10 Spotlight * Japan Nichina LED * Beam angle:24/36° * With external driver * Lifespan≥35,000Hrs	6.5W	CRI >80, 480 lm (2700K) CRI >80, 500 lm (3000K) CRI >80, 550 lm (4000K) CRI >80, 580 lm (5500K)	Φ50*H55mm	100~240V AC	NOT	100	54x27x16cm	4.7kg	8.6kg
LS-S505-GU10-A-NWWD/NWD					220~240V AC	YES

Prod Model:	LS-S505-MR16-ED-EWW/EW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Diameter 50 mm * Hight 49mm
Dimmable:	Not
Lumens:	450~580lm
Cct:	2700k, 3000k,4000k,5500k or Customized
CRI:	Ra80 or Customized
Lamp Base:	MR16
LED Brand:	LG or Nichina Chip
Beam Angle:	24 / 36degree
Light Source:	SMD
Certificate:	TUV,GS, CE, RoHS, CB, SAA, ERP
Emitting Color:	White
Base Material:	Aluminum
Usage:	Indoor Using
Certification:	ERP / SAA / CB /TUV-GS/TUV-EMC
Power Source:	AC
Electric Current Type:	AC
Input Voltage:	100-240V
Diffuser:	Aluminum
Power:	5.5W
Life:	45000 Hrs
IP Rating:	IP20
LED Chips:	LG

Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.

Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.

The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.

"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
