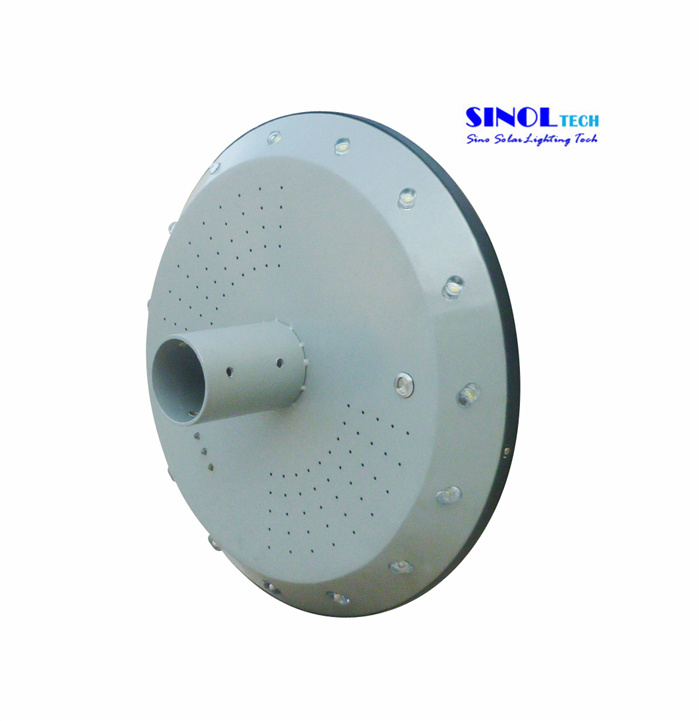

Timer control 15W LED integrated solar light for garden
1. Material: Galvanized Iron(Time control)
2. Solar panel:18V25W
3. Led: 12V15W 1500-1650LM
4. Battery: Lithium battery 3.2V 36AH
5. Mount height: 3-4m
6. Charge time: 6-10hours (with enough strong shine), backup 3-5 raining days
7. With battery capacity display
Packing detail:
Product Size:403*403*148mm
Carton size:460*460*190mm
Net weight:4.55kg
Gross weight:5.5kg
Quantity/Carton:1set/carton
Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance.
And the same time, it's convenient in the shipment and installation.
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or
Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary
Advantage of All-in-one Solar Garden/Street Light:
1. Main feature:
1)Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2)Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3)Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years,
Excellent high temperature performance, long life time can ensure the service life of whole product.
4)Waterproof structure, safe and reliable.
5)Adopting aluminum alloy or galvanized iron as main body material, with excellent rust-proof and corrosion-proof function.
6)With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.
2. Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.
| Solar Panel | Max Power | 18V25W(High efficiency monocrystalline silicon) |
| Life time | 25 years |
| Battery | Type | Lithium battery |
| Life time | 5 years |
| LED Lamp | Max power | 12V 15W |
| Motion sensor | Led chip brand | Epistar from Taiwan with high brightness |
| Lumen(LM) | 1500-1650LM |
| Life time | 50000hours |
| Viewing angle | 120 degree |
| Charge time | By sun | 7hours |
| Discharge time | Saving power | more than 20 hours |
|
|
|
| Working temp. | range(C) | -20C~+60C |
| Color temp. | range(k) | 6000k |
| Mounting height | range(m) | 3-4m |
| Space between light | range(m) | 10-15m |
| Main lamp materials |
| Galvanized Iron |
| Certificate |
| CE/ROHS/IP65 |
| Warranty period |
| 2 years |
"SINOLTECH" is the solar energy brand name of Jinan Oufu Technology Co., Ltd, focusing on overseas marketing of high quality and advanced solar energy products.
Our company was firstly established in year 2005, in order to respond and conform to the trend of global environmental protection "low carbon" and "green energy", Oufu starts an independent department "SINOLTECH HOLDING GROUP Ltd" in year 2008, specializing in research, development, innovation, production and export for solar lighting and other solar application products.
Our main products include integrated solar street light, thin film flexible solar panel, solar garden light, solar lawn light, solar landscape light, solar fan, portable solar system, solar chargers etc.
SINOLTECH obtains 5 products patents, with more than 2 production and assembly base, total area more than 4600 square meters, employees over 200. Until now, SINOLTECH already passed system certification of ISO9001: 2000, TS16949, SGS ISO14001, OHSAS 18001.
All products have passed CE, RoHS and IP65 certificates. Production capacity for all in one solar street light is 5000 units
Per month, for flexible solar panel is 100KW per month, SINOLTECH have established close cooperation with a number of domestic and foreign universities and national research institutions.
Our main exporting markets include: USA, Germany, Russia, Italy, France, Spain, Australia, New Zealand, Isreal, UAE, Jamaica, Chile, Japan, Thailand, Philippines, Singapore, Malaysia, Pakistan etc more than 60 countries.
SINOLTELCH always put the needs of clients in the first place, solving all problems in the first time.
Integrity, professional, efficient, friendly and mutual benefit is always our company tenet, SINOLTECH expects to cooperate and serve clients worldwide.
