Home LED Light Products Camera Supported 50W All in One Integrated Solar LED Street Lights

Camera Supported 50W All in One Integrated Solar LED Street Lights

Camera Supported 50W All in One Integrated Solar LED Street Lights
Price: US $ 610-650/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union

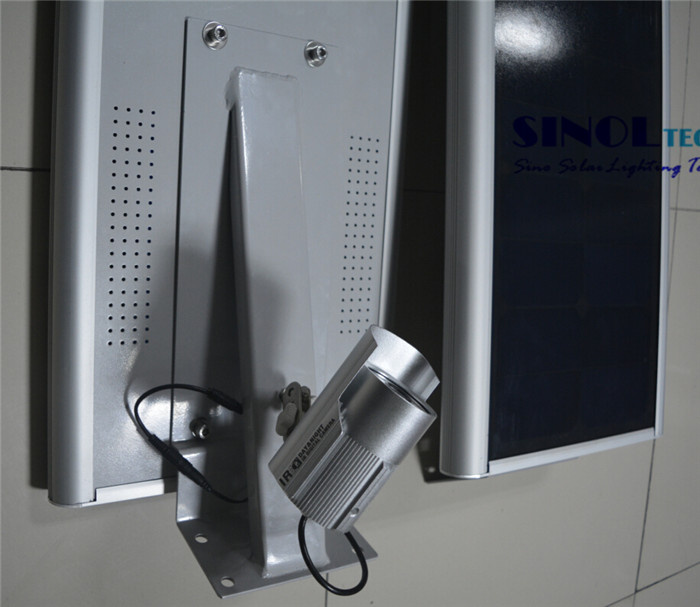

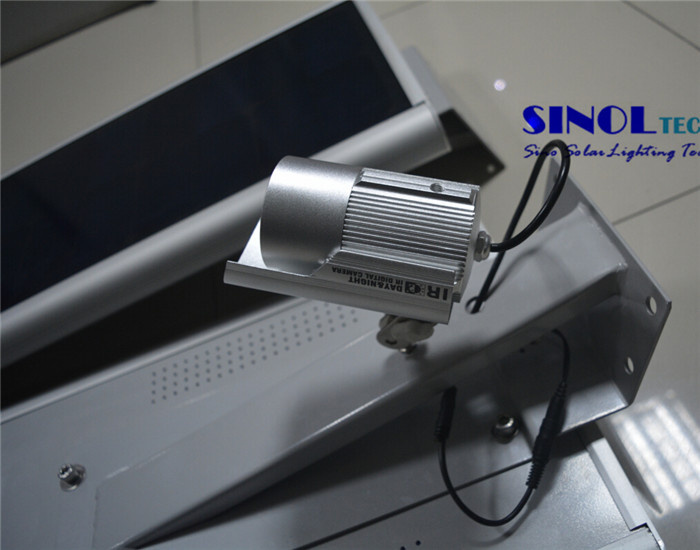

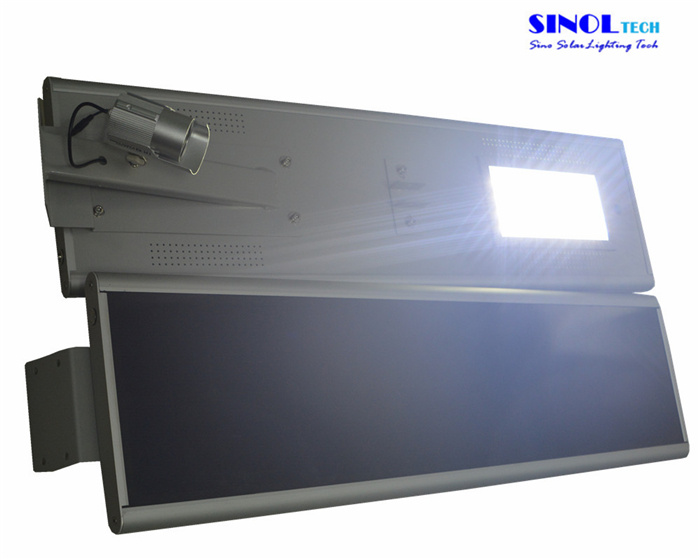

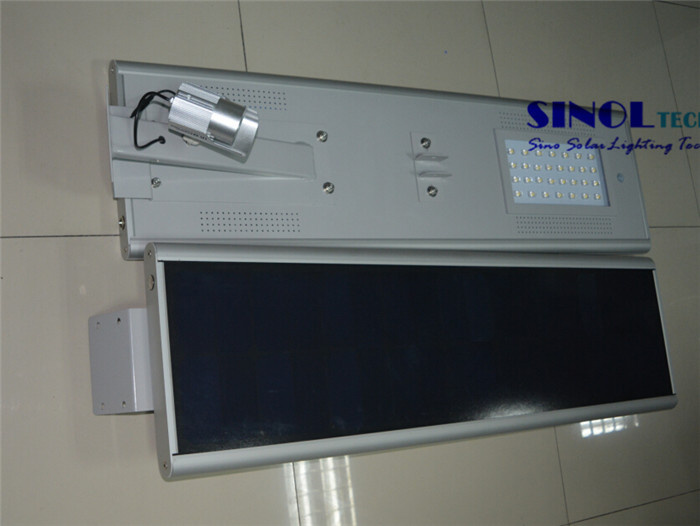

Camera supported  50w All in one integrated solar LED street lights

Specs for integrated solar light-

Item No. SN-250
Size 1280*460*50mm
Solar panel 85W, 1200*400mm(SUNPOWER)
LED brand 50W Bridgelux
Color temperature 6000-6500K
Lumen(LM) 5100-5200lm
Lithium Battery 50AH
Packing size/weight 1300*500*220mm/23KG
Visual angle 120°
Install height 7-9m
Working temperature: -30~+60C
LED service life: 50000 hrs
Lithium battery and controller service life: Over 5 years
Warranty: 2 years

Specs for camera-
Pixel: 300000 SONY
Memory: 32G (Storage 5 days' monitoring recording)
Working time: 24 hours
Range: 30 meters

Working method:
Intelligent timer control, LED adjust working power automatically upon remaining battery capacity to ensure continuous lighting for 5-7 rainy days.

Customize and OEM service:
1. Customized shell material:
High quality Aluminum alloy frame, light weight, anti-corrosion and visual good looking;
Galvanized iron frame, lower cost to reduce total budget, 3 -years corrosion resistance guarantee.  Accept customized shell color.
2. Customized working method:
Intelligent timer control; montion sensor; timer control or customized.
3. Customized brand of components:
Solar panel: USA SUNPOWER brand solar panel(19-23% efficiency) or Germany Bosch or normal
LED lamp: High quality USA bridgelux LED chip or TAIWAN EPISTAR LED chip; Customzied color temperature (2700-6500K) upon request.
4. Accept OEM logo printing(Qty above 50 units free of charge).
5. Mounting method: Screw and bracket fixing or Mounting tube.

Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service
Life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.

Detail description about battery advantage
1) The most advantage of all in one solar street light is saving construction cost and maintenance cost, as well as shipping cost, generally only 1/10 of the cost for conventional solar street light.

2) Another obvious feature of all in one solar street light is extra long service life 5 years, adopting global initiative lithium battery management control technology, the total cost for after-sale service and component replacement is significantly reduced comparing with conventional solar light with normal lead-acid battery which requires to be replaced each 2 years.

For all in one solar light with lithium battery, no need to replace or maintain in 5 years, even after 5 years, battery requires to be replaced, due to the unique product structure design, the battery could be replaced within several minutes without the help of any technical support of engineer.
Normal users could finish the replacement independently.
Long service life lead acid battery is with cycling life 300 times, maximum 500 times.
While Lithium iron phosphate power battery, cycling life reaches over 2500 times, under the use of standard charging(5 hours charging), the cycling life could reach 2000 times.
For lead acid battery, the service life is only 1~1.5 years, while for lithium iron phosphate battery using under same condition, theory life could reach 7~8 years.

Overall consideration, the cost performance price of lithium battery is 4 times over lead-acid battery.
Lithium battery comes with feature of high current charging and discharging, with special charger, 1.5 current charging 40 seconds could fully charge battery, starting current could reach 2 current, while lead-acid battery doesn't obtain this function.

Lithium iron phosphate power battery comes with higher charging and discharging efficiency, over 90%, while lead acid battery is only 80%.
The failure of battery starts from second year at rate 6%, while failure of light at rate 2% at rate in 1000 Hours.
Solar Panel Max Power 18V85W(Sunpower solar panel)

 Life time 25 years
 Battery Type Lithium battery 50AH

 Life time 5 years
 LED Lamp Max power 12V50W
 (With sensor) Led chip brand Bridgelux

 Lumen(LM)5100-5200LM

 Life time 50000hours

 Viewing angle 120 degree
 Charge time By sun 8-9 hours
 Discharge time Full power9 hours

 Half power18 hours
 Working temp. range(C) -20C~+60C
 Color temp. range(k) 6000-6500k
 Mounting height range(m) 7-9m
 Space between light range(m) 20-25m
 Main lamp materials
 Aluminum alloy
 Certificate
 CE/ROHS/IP65
 Warranty period
 2 years
Prod Model: SN-250
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Size: 1280*460*50mm
Gross Weight: 23kg
Carton Size: 1300*500*220mm
Install Height: 7-9m
Lumen(Lm): 5100-5200lm
Model No.: Sn-150
Product Name: Camera Supported 50W All in One Integrated Solar
LED Power: 50W
Solar Panel: 85W
Lithium Battery Capacity: 50ah
Power: ≥30W
Light Type: Solar
Voltage: 12/24V
Charging Time (',H): 10
Usage: Street
Lamp Body Material: Aluminum Alloy
Color Temperature: Pure Wihte
IP Rating: IP65
Illumination Time: 10h
Certification: RoHS
Light Source: LED Lamp
With Light Source: With Light Source
Cell Type: Lithium Battery
"SINOLTECH" is the solar energy brand name of Jinan Oufu Technology Co., Ltd, focusing on overseas marketing of high quality and advanced solar energy products.

Our company was firstly established in year 2005, in order to respond and conform to the trend of global environmental protection "low carbon" and "green energy", Oufu starts an independent department "SINOLTECH HOLDING GROUP Ltd" in year 2008, specializing in research, development, innovation, production and export for solar lighting and other solar application products.

Our main products include integrated solar street light, thin film flexible solar panel, solar garden light, solar lawn light, solar landscape light, solar fan, portable solar system, solar chargers etc.

SINOLTECH obtains 5 products patents, with more than 2 production and assembly base, total area more than 4600 square meters, employees over 200. Until now, SINOLTECH already passed system certification of ISO9001: 2000, TS16949, SGS ISO14001, OHSAS 18001.

All products have passed CE, RoHS and IP65 certificates. Production capacity for all in one solar street light is 5000 units

Per month, for flexible solar panel is 100KW per month, SINOLTECH have established close cooperation with a number of domestic and foreign universities and national research institutions.

Our main exporting markets include: USA, Germany, Russia, Italy, France, Spain, Australia, New Zealand, Isreal, UAE, Jamaica, Chile, Japan, Thailand, Philippines, Singapore, Malaysia, Pakistan etc more than 60 countries.

SINOLTELCH always put the needs of clients in the first place, solving all problems in the first time.

Integrity, professional, efficient, friendly and mutual benefit is always our company tenet, SINOLTECH expects to cooperate and serve clients worldwide.
