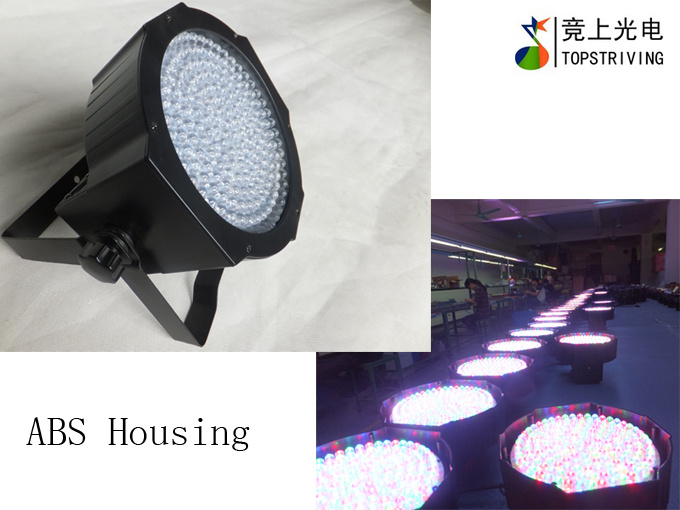

Stage Performance LED Lighting/ LED PAR can with 100mm high MCD LEDs(MEGA PAR RGB)
Technical Specifications:
1)Power supply: 90-240V AC 50/60Hz
2)Power consumption: MAX. 40W
3)Fuse: 250V 1.0A
4)DMX-control-channels: 8
5)DMX-512-connection: 3-pin XLR
6)Number of LED: 168 high output 10 LED:
7)R/G/B 56 PCS FOR EACH
8)Flash-rate: Max. 10 Hz
9)ITEM DIMENSION: 270*230*100MM
10)ITEM WEIGHT: 2.5KGS
AUTO: Run the preset shows;
CF00: Increasing brightness, then decreasing brightness, the speed of increasing
Brightness, then decreasing brightness can be adjusted by the buttons of UP
And DOWN from 00 slowest to 99 fastest.
CCO8: Color changes, the speed of color changes can be adjusted by the buttons
Of UP and DOWN from 00 slowest to 99 fastest.
CS99: Color selections, the color selections can be done by the buttons of UP and
DOWN from 00 to 99.
R000: Press the button FUN five seconds, till R000 shows in the led display, the red color
Brightness can be adjusted by the buttons UP or DOWN;
G000: Press the button FUN five seconds, till G000 shows in the led display, the green color
Brightness can be adjusted by the buttons UP or DOWN;
B000: Press the button FUN five seconds, till B000 shows in the led display, the blue color
Brightness can be adjusted by the buttons UP or DOWN;
|
9 channels |
|
|
Channel 1 |
Red from small to big brightness(dimming) |
|
Channel 2 |
Green from small to big brightness(dimming) |
|
Channel 3 |
Blue from small to big brightness(dimming) |
|
Channel 4 |
White from small to big brightness(dimming) |
|
Channel 5 |
Master dimmer from small to full brightness |
|
Channel 6 |
Strobe from slow to fast |
|
Channel 7 |
Dimmer, color macro |
|
Channel 8 |
Dimmer, increasing brightness, then decreasing brightness, colors following one by one |
|
Channel 9 |
Running speed adjustments |
|
DELIEVER TERMS |
|
|
Packing |
Flight case/ carton package optional |
|
Trade |
FOB/ EXW |
|
Port |
GuangZhou China |
|
Certification |
CE ROHS |
|
Payment Terms |
T/T, Westerm Union, Paypal |
|
Shipping method |
DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc |
|
Delivery time |
40 HQ container within 4 weeks |
|
Brand Name |
Topstriving |
|
Origin |
GuangZhou China |
|
Producting Time |
15-20 days |
|
OEM OR ODM Service |
Accept |
|
MOQ: |
50 PCS |
|
Warranty Time |
Fully 3 year |
GUANGZHOU TOPSTRIVING PHOTOELECTRICITY TECHNOLOGY Co., Limited, founded in 2010, is a supplier and manufacturer of professional entertainment effect lightings with a roster of products including, but not limited to, DMX lighting controller, LED applications, effect lightings, yoke lights, lasers, stage lights, foggers, a variety of other accessories.The dedication and commitment to the customers is the foundation of TOPSTRIVING.Our experienced and devoted workers allow us to make finished products that share both the competitive pricing of mass production as well as the quality and individuality of the items.We have a big showroom which offers you the general idea of the products;A well-equipped R&D lab, covering the structuring, electronics, program-writing and optics to instruct and control the whole procedure of developing, testing and mass production of organization.In addition to our standard products we welcome the opportunity to make products to our customers' specifications and demands.We can assist you from design and engineering through production and final packaging and conclude business based on ODM.We are also pleased to offer private labeling and silk-screening prints of our standard product designs for your individual market needs and conduct business based on OEM/ODM/OBM.
