DMX 3D Tube,led pixel tube
Thank you visit here, Here I will guide you to better understand our products and services.I hope can help you ! If your require to get more information, please email to me directly:
Packaging & Delivery
Packaging Details:One driving bar with 5 pixel tube strip in one carry bag , one unit in one box
Delivery Detail:Small order within 7 days , large quantity around 1 month
Product Specifications:DMX 3D Tube,led pixel tube
| Parameter | PT-321 | PT-322 | PT-323 |
| Length | 1meter | 1.5meter | 2meter |
| Tube diameter | 28mm | 28mm | 28mm |
| Working voltage | DC12V |
| Light source | SMD5050 LED RGB Tri-color 32*2=64pcs |
| Viewing angle/beam angle | 360degrees/120degrees |
| Pixel point/pitch | 32/ 30mm | 32/ 45mm | 32/ 59mm |
| Installation way | Hang with driver bar KB-200 or place on floor with KL-5,KL-1 stand control via KB-400 | Hang with driver bar KB-200 |
| Tube material | PC |
| DMX channel | 96 DMX channels |
| Tube color | Clear,bellows,milky |
| Power consumption | 15W |
| Weight | 250g | 320g | 430g |
| Life | >50000H |
| Operating temperature | -40°~50°C |
2.Control system DMX 3D Tube,led pixel tube
| Model | Driver bar KB-200 |
| Dimensions | 1000*82*65mm(W/H/D) |
| Voltage input | AC100V~200V,50HZ/60HZ |
| Power consumption | 120W |
| Display device | LCD display control panel |
| Connector | Tube/ball both available |
| Function mode | Automatic(30 pre-programs),Master slave synchronous,DMX 512 |
| DMX channels | 8CH/480CH(connect with pixel tube)
8CH/-150CH/225CH/300CH/375CH/450CH(connect with pixel ball) |
| Weight | 2.28g |
Advantage compare with other led pixel ball/tube control system.
(1)Both DMX and Art-net, Kling control protocol supported.
(2)Madrix,artnet,arkaos pixel control software is available.You can control all the system synchronous.
(3)Safe and easy to install and operate.
3. Another control system DMX 3D Tube,led pixel tube
| Model | KB-400 |
| Dimensions | 300*62*250(W/H/D) |
| Power supply | AC100V~240V,50HZ/60HZ |
| Display parts | LCD display control panel |
| Connector | Tube/ball selected |
| Operation mode | Automatic(30programs circulation) DMX
Both DMX and Art net control protocol supported |
| DMX channels | 8CH/450CH(pixel tube)
150CH/225CH/300CH/375/450CH(pixel ball) |
| Driver bar material | Aluminum/black |
| Weight | 1.5g |
Please scan the quickmark to watch the video of the pixel tube.
4.How to install.DMX 3D Tube,led pixel tube
When we want to install them,we need the following parts.
A.Tube
Length:1meter,1.5m,2m.
Lens color:milky,clear,bellows.
B.KB-200 controller or KB-400 controller
KB-200 use to hang on the truss,KB-400 use to control when the tube place on floor with KL-1 or KL-5.
C.Power cable,DMX signal cable,net cable,controller light hook,Madrix software or Arkaos software.
Necessary cable
DMX-512
Software
Applications :DMX 3D Tube,led pixel tube

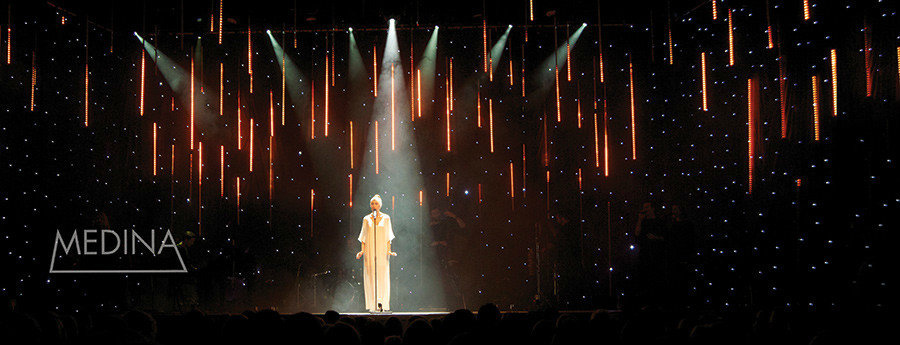

Mobile DJ ,stage backdrop decoration , wedding ,holiday ,all kinds of events and show ,TV station
Advantages :
1.High quality SMD led lamp , long life and high brightness not easy to damage.
2.Waterproofing ball can be used out door
3.60 fantasy animation effects makes your show unforgetful
4.Easy to install and dismantle .
5.Light weight and small volume ,easy for package and transportion
6.Customer size is aviable
Welcome to inquiry DMX 3D Tube,led pixel tube
for more details.Thank you.
