Specifications

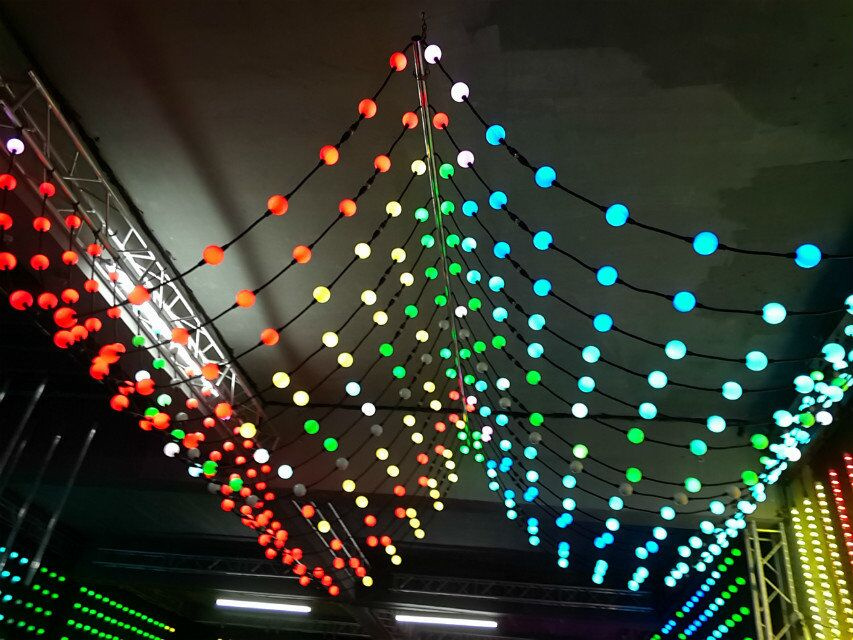

Stage Background Decoration Fantasy LED Ball Curtain
1.high quality SMD led lamp;
2. Original design & long life.
Product Description:
Fantasy LED Ball Curtain is made of high quality plastic ball, with extremely high brightness SMD5050 LED covered . The curtain has 7 different colors which are mixed by three primary colors RGB LED. We can do any combinations for you in your order.
Advantages :
1. high quality SMD led lamp , long life and high brightness not easy to damage;
2. waterproofing ball can be used out door;
3. 30 fantasy animation effects makes your show unforgetful;
4. Easy to install and dismantle;
5. Light weight and small volume ,easy for package and transportion;
6. Customer size is aviable.
Function mode:
1.auto run ( 50 pre-set amazing preset program );
2.Sound control(Sound sensitivity can be adjusted);
3.DMX control 8 channels (control dimer ,R,G,B and 30 program ,speed control);
4.165channels(pixel control ,each ball can be controlled by DMX ).
Type : KS-100
Length : 1000mm
Ball diameter : 50mm
Working Voltage :DC12V
Power : 3w
Light source : SMD5050 LED RGB Tri-Color 5*2=10pcs
Beam angle : 360 degrees
Pixel point and pitch : 5 / 200mm
Material : PC
Material color : Milky
Net Weight : 225 g
Driver Bar Type : KB-200
Power supply : AC100v~240V,50HZ/60HZ
Power : 120w
LCD Display Control panel
Connector : Tube / Ball selected
Operation Mode : automatic,M-S, DMX
DMX channels : 8CH/450CH(Pixel tube)
150CH/225CH/300CH/375CH/450CH(Pixel Ball)
2m 3m 4m 5m 6m
Both DMX and Art-Net control protocol supported
Both Artnet and Kling Net Protocol
Auto Mode : built-in 30 programs with execution speed adjustment
Master/slave mode : for synchronized operation of more units linked in a chain
Driver Bar material : aluminium/Black
Dimensions : 1000*82*65mm (W/H/D)
Net Weight : 2.28kg
Guangzhou Kone LED CURTAIN manufacturer is specialty engaged in different series of LED curtain design, development, production, sale and serves a body enterprise. with more than 30 stuff and 2000 square meter workshop. It is located in tang ge industry park of Baiyun district which is 30 mins drive from Guangzhou baiyun international airport and railway station.
Since 2008, Kone light has established its own brand KONE and stepped into international market. We bring in advanced management concepts from abroad, employ high-quality specialists in stage light field, who works in new product design and development.
Our main product is LED star curtain, vision curtain, RGB star curtain, which have been widely applied in all kinds of party, live show, concert, wedding, TV station, mobile DJ, night club and special events etc. All our products have passed the international authority of SGS and CE certificate, also fire proof certificate.
Nowadays, 80% of the products export to different countries all over the world. We already have built longterm business relationship with our agents in European and America.
Thanks to our valued customers support, and our continues efforts. KONE light gain good reputation in stage light field and grows up day after day. We moved to new industry park in August 2010, the new company is far bigger and beautiful than before.
Facing Increasingly competitive market, we will focus on establishing a sound mechanism of selection, appointment, management and supervision, improving the system of training and educating employees, providing a clear path for succession. Meanwhile, we will take the quality control seriously, training the quality control stuff constantly.
Our motto is cooperation, personaly, goals, details, innovation, share. Our Aim is to be NO. 1 in LED curtain field of the whole world, and we will try our best to realized this goal within a few years.
From concept to reality is our watchword in 2011, more and more new amazing LED curtains will be churned out soon in the new year.
Kone light is looking forward to working together with all the old and new valued customers and steeping into a new happy paradise.
