We can supply LED Display, LED display module.

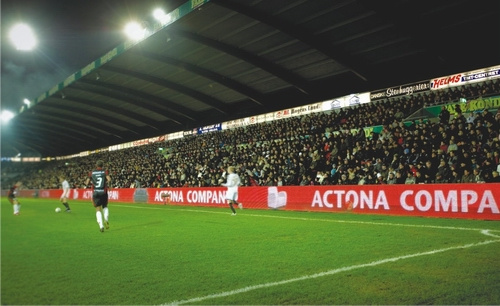

LED Banner systems have become more widespread over the past several years being used by more and more sports stadiums. Many people are looking to use LED technology to improve image quality during broadcast and to offer high-quality advertising and branding packages.
All our perimeter LED displays come with a special control system with refresh rates of 3000Hz and soft mask for protection of player safety. One of the designs of cabinets for perimeter LED display with soft mask and detachable stand, so it can also use as a normal cabinet when no sports are played and assemble into and LED regular screen. The connectors of the signal and power between cabinets, which are easy to plug in and out and durable. We have the base at the bottom of cabinet for waterproof and we make it about 6cm height, so that in case of heavy rain, the water can pass from below the cabinets. The brightness of the screen can be up to 7500CD/sqm.
|
Specification |
Parameter |
|
Pixel Pitch |
16 mm |
|
Pixel composing |
2R1G1B |
|
Density per sqm |
3906 pixel |
|
LED package |
DIP 546 |
|
Wavelength(R) |
625~630nm |
|
Wavelength(G) |
525~530nm |
|
Wavelength(B) |
470~475nm |
|
Led Lamp type |
Nichia/Cotco-Cree/Silan |
|
Module size |
256 mm*128mm |
|
Display resolution/module |
16 dots*8 dots |
|
Standard cabinet size |
1024*768 mm/1024*1024mm |
|
Weight per sqm |
70.5Kg/sqm |
|
Protection classification |
IP65 |
|
Wave Angle (H) |
140° (H)/ 60° |
|
Display color |
256*256*256 |
|
Whiteness brightness |
≥ 7500 |
|
Changing frame frequency |
60 Hz |
|
Refresh |
400 Hz |
|
Driving method |
Constant Static |
|
Control way |
Real or Virtual Pixel |
|
Max power/sqm |
1000W/sqm |
|
Average power/sqm |
450W/sqm |
|
Short circuit protection |
Yes |
|
Working temperature |
-20~50 centigrade |
|
Working Humidity |
10~90% |
|
Out of control |
1/10, 000 ( scattered) |
|
Lifetime |
100, 000 hours |
|
Environment |
Outdoor |
|
Install mode |
Self-Standing |
|
Control mode |
Synchronous |
|
Display port |
DVI |
|
Display mode |
1024*768 /1024*1024 |
Shenzhen Tricolor Technology co., Ltd. is an integrated service supplier, which is specializing in the R&D, production and market of LED display screen. We specialize in one-stop service on solution offer, design, product manufacture, installation and after sale service that satisfy customer on various demands. Now Tricolor covers the solutions with LED Curtain Solution, Rental LED Screen Solution, Permanent Installation LED Screen Solution, Perimeter LED Screen Solution. We do our best to serve quality market customer all the time.
Tricolor is founded by a team with skilled and experienced technicians, who will dedicate themselves to research and provide complete LED display system solution; Tricolor promotes the environment protection and energy saving with technology. We would like to offer the most reasonable solution for the users by all-dimensional technology integration of electronics, optics, structure, system performance, and easy operation and product reliability.
Tricolor consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance; IP rating and so on, we will adopt the most strict quality control system to guarantee products with best quality.
