We can supply LED Display, LED display module.

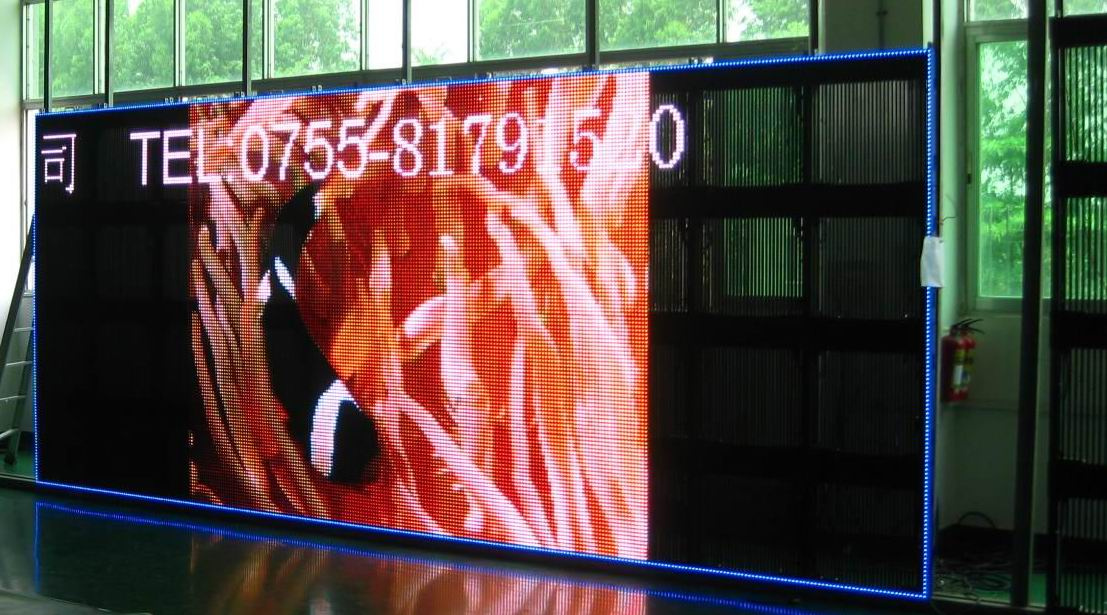

LED strip curtain screen is suitable for stage scene setting, which is easy and simple to install and control. For its unique features of thinness, semi-transparency, waterproofing and light-weight, this system has shown its unparallel artistic charm. It is perfect for large area application and can be assembled at will. It is excellent to be used as indoor & outdoor stage display of grand performance, scene-making in car exhibitions, deluxe disco hall, grand musical evening, fashion dress release meeting and video wall in entertainment places, etc. The scenes and image revealed are true and abstract, creating a dream effect. It opens up a new set of possibilities for lighting and stage designers.
|
Specification |
Parameter |
|
Pixel Pitch |
25 mm |
|
Pixel composing |
SMD 3 in 1 |
|
Density per sqm |
2500 pixel |
|
LED package |
SMD 5050 |
|
Display resolution/module |
24 dots*24 dots |
|
Standard cabinet size |
600*600mm |
|
Weight per sqm |
14Kg/sqm |
|
Wave Angle (H) |
140° (H)/ 140° |
|
Display color |
256*256*256 |
|
Whiteness brightness |
≥ 2500 |
|
Changing frame frequency |
60 Hz |
|
Refresh |
400 Hz |
|
Driving method |
Constant Static |
|
Control way |
Real Pixel |
|
Max power/sqm |
175W/sqm |
|
Average power/sqm |
75W/sqm |
|
Working voltage |
AC 220± 10%50Hz or AC 110± 10%60Hz |
|
Short circuit protection |
Yes |
|
Working temperature |
-20~50' ' centigrade |
|
Working Humidity |
10~90% |
|
Out of control |
1/10, 000 ( scattered) |
|
Lifetime |
100, 000 hours |
|
Environment |
Outdoor |
|
Install mode |
Hung |
|
Control mode |
Synchronous |
|
Display port |
DVI |
|
Display mode |
1024*768 /1024*1024 |
Shenzhen Tricolor Technology co., Ltd. is an integrated service supplier, which is specializing in the R&D, production and market of LED display screen. We specialize in one-stop service on solution offer, design, product manufacture, installation and after sale service that satisfy customer on various demands. Now Tricolor covers the solutions with LED Curtain Solution, Rental LED Screen Solution, Permanent Installation LED Screen Solution, Perimeter LED Screen Solution. We do our best to serve quality market customer all the time.
Tricolor is founded by a team with skilled and experienced technicians, who will dedicate themselves to research and provide complete LED display system solution; Tricolor promotes the environment protection and energy saving with technology. We would like to offer the most reasonable solution for the users by all-dimensional technology integration of electronics, optics, structure, system performance, and easy operation and product reliability.
Tricolor consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance; IP rating and so on, we will adopt the most strict quality control system to guarantee products with best quality.
