1, premium acrylic cover, to have even spread of light and magnificent lighting effect;
2, emitting light from just front to be higher in luminous efficacy; With PCB placed directly to back cover(not the 2 or 4 sides), to have better heat dissipation performance;
3, universal input of voltage, from AC 85V to 305V, to be used in all countries on earth;
4, with IR remote controlled dimming function for choice; With no UV, nor flickering, to add comfort index.
To replace grille lamp, or be used in office, hotel, hall, lobby, home, etc; To be built-in or suspended.
Spark LED, sparkle your green and quality life.
|

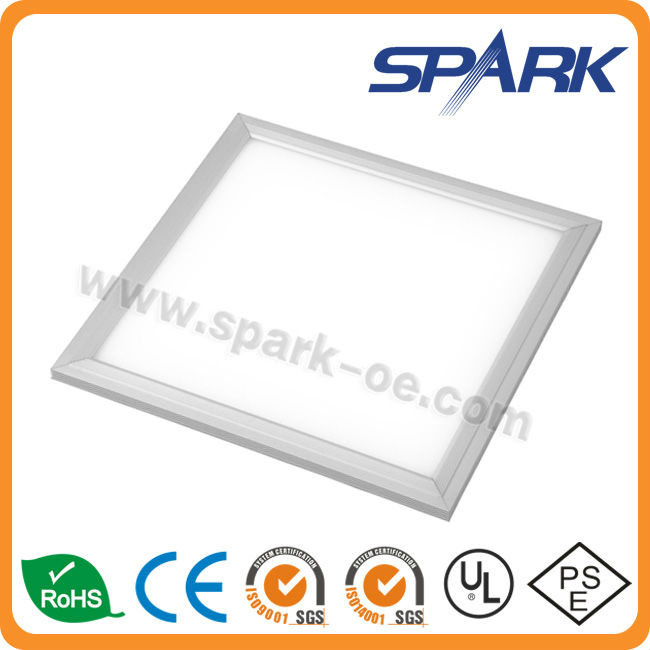

Product Name |
300x300mm LED Panel Light |
|
Model No. |
SPP-B30W-0303 |
|
LED Quantity |
308 PCS SMD3014 |
|
LED Luminous Efficiency |
≥70 lm/W |
|
Lamp Rated Total Power |
30W |
|
Power Efficiency |
≥0.88 |
|
Power Supply |
UL Compliant |
|
Total Luminous Flux |
1800-2300lm |
|
lllumination and Effective Area |
lllumination |
Effective Area |
|
Height 3M |
71.6 lux |
6.86X6.86M |
|
Height 4M |
43.1 lux |
11.54X11.54M |
|
Height 5M |
24.6 lux |
14.43X14.43M |
|
Height 6M |
19.2 lux |
17.31X17.31M |
|
Color Rendering Index(CRI) |
75-80 |
|
Color Temperature(CCT) |
Cool white: 6000K
Pure white: 4000K
Warm white: 3000K |
|
Beam Angle |
120 degree |
|
Input Voltage |
90-264V/250-305Vac |
|
Frequency |
50-60Hz |
|
Power Factor(PF) |
≥0.95 |
|
Total Harmonic Distortion(THD) |
≤ 15% |
|
Storage Temperature |
Normal room temperature,moistureproof |
|
Working Environment |
-20°C--+60°C |
|
Working Lifetime |
≥ 50,000 hours |
|
IP Rating |
IP53 |
|
Lamp Body Material |
PMMA & Aluminum |
|
Net Weight |
1.2 kg |
|
Gross Weight |
1.5 kg |
|
Product Dimension(mm) |
300X300X11mm |
|
Package Size(mm) |
405X405X55mm |
Shenzhen Spark Optoelectronics S&T Co., Ltd. founded in March 2000, specializes in R&D, manufacturing and marketing in the field of LED lighting products and honored as National Hi-tech Enterprise, Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations. We independently design and manufacture LED products ranging from High Power LED Street Light, High Power LED Tunnel Light, LED Traffic Light, LED High Bay, LED Down Light, LED Tube Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.
We took the lead in being certified by ISO9001 Quality Management System and ISO14001 Environmental Management System in semiconductor lighting industry of China and we not only formulate the industry standards for LED Street Light, LED Tunnel Light, LED Tube Light and LED Down Light and so on but also participate in drafting the standards for other industries. Our whole range lighting products have been awarded with certification from national, provincial, municipal authoritative organizations and some series including LED Street Light, LED Tunnel Light, LED Tube Light and LED Down Light have been certified with CCC, CQC, CE, RoHs, UL, SABS, ETL and PSE.
Adhering to our business philosophy of 'quality, innovation, integrity and service' and driven by market and customers' demand, we are always targeting at providing customers with the safest, environment-friendly, energy-saving, high quality products and best services. Driven by continuous innovation and improvement, we are committed to endeavoring to realize our corporate goal of "illuminate the world and people's life".
