| Model No. | SPL-48 |
| Equivalent | 150W High Pressure Sodium Lamp |
| Lamp Rated Total Power | 55W |
| Power Efficiency | 90% |
| Lamp Rated Luminous Flux | 6050-7150lm |
| Lamp Rated Luminous Efficiency | 110-130lm/W |
| Color Rendering Index(CRI) | Ra>70 |
| Color Temperature | 4000-4500k
5000-5500k
6000-6500k |
| Beam Angle | 120° x 60°; 135° x 65°; 140° x 75° |
| Light Distribution Curve(Beam Pattern) | Asymmetric (Bat Wing) / Rectangular Beam |
| Input Voltage | 100-277VAC |
| Frequency Range | 47-63Hz |
| Power Factor(PF) | 0.95 |
| Storage Temperature | -40ºC--+80ºC |
| Working Environment | -40ºC--+50ºC ; 10%-95%RH |
| Light Body and Lampshade Material | Aluminum Alloy and PC |
| IP Rating | IP66 |
| Net Weight | 5.27kg |
| Gross Weight | 6.47kg |
| Package Size(mm) | 565×380×160(1PC) |
| Products must be connected to the earth wire |

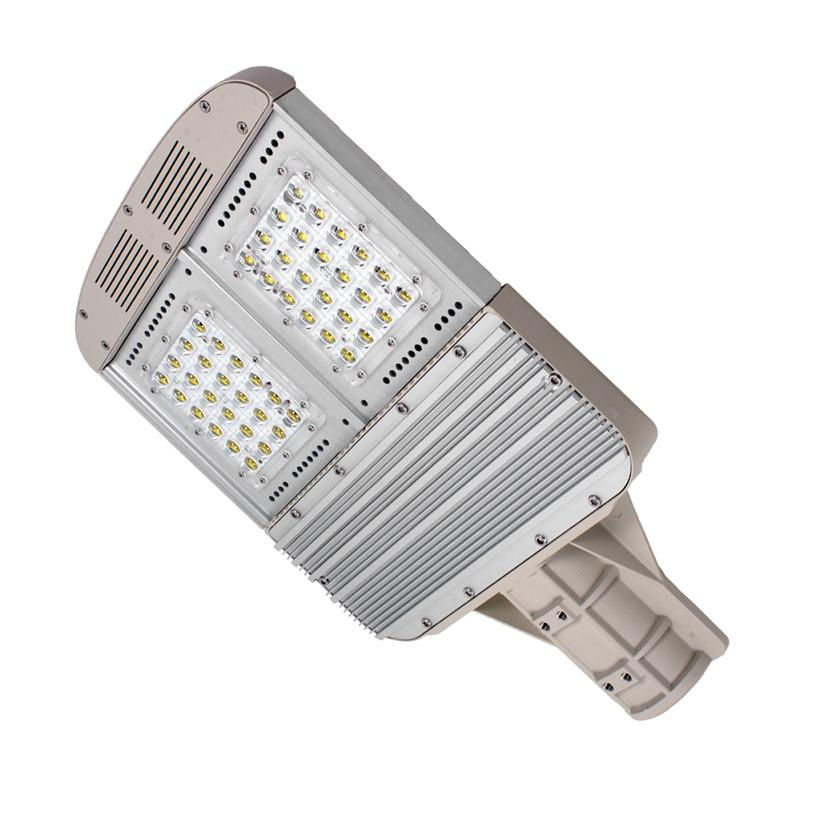

Spark is proud of its High Power LED Street Light Series. High Power LED street lights are new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination.
Based on the classic modular design-our first generation LED street light, our upgraded generation improves the module design as 4 × 6 arrays. Although LEDs were deducted, but the light efficiency is much higher and much more effective based on the dual lens design, this kind of design has really achieved a high luminous efficiency, low power consumption and excellent heat dissipation characteristics. By scientific calculating, the whole lamp lighting efficiency can raise by 20%, temperature rising can be decreased by 20% and the energy saving rate can be increased by 20%.
Shenzhen Spark Optoelectronics S&T Co., Ltd. founded in March 2000, specializes in R&D, manufacturing and marketing in the field of LED lighting products and honored as National Hi-tech Enterprise, Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations. We independently design and manufacture LED products ranging from High Power LED Street Light, High Power LED Tunnel Light, LED Traffic Light, LED High Bay, LED Down Light, LED Tube Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.
We took the lead in being certified by ISO9001 Quality Management System and ISO14001 Environmental Management System in semiconductor lighting industry of China and we not only formulate the industry standards for LED Street Light, LED Tunnel Light, LED Tube Light and LED Down Light and so on but also participate in drafting the standards for other industries. Our whole range lighting products have been awarded with certification from national, provincial, municipal authoritative organizations and some series including LED Street Light, LED Tunnel Light, LED Tube Light and LED Down Light have been certified with CCC, CQC, CE, RoHs, UL, SABS, ETL and PSE.
Adhering to our business philosophy of 'quality, innovation, integrity and service' and driven by market and customers' demand, we are always targeting at providing customers with the safest, environment-friendly, energy-saving, high quality products and best services. Driven by continuous innovation and improvement, we are committed to endeavoring to realize our corporate goal of "illuminate the world and people's life".
