MAIN IDEA OF OUR PRODUCT:
COST
1. Product cost
We have developed long standing relationships with these components and raw materials suppliers such as PHOCOS, RITAR, Philips and so on.
2. Transportation cost
All of the accessories were designed into detachable type to save space during the transferring, simple structure is easy to install and detach.
3. Installation cost
The electrical part was designed can be installed within 6 minutes by using the non-screw connector, which can significantly shorten your installation period and create significantly savings on the labor cost.
4. Maintainance cost
Our high quality product can reduce your maintainance cost.
EFFICIENCY
We use 3M glass to raise the efficency of solar panels.
The solar panel, controller, battery and the light were connected together by a new develped wrie harness to raise the efficiency of installation.
QUALITY
1. GOOD PRODUCT QUATITY
1) The LED lamp is IP65 rated with a lifespan over 50000hours.
2) The lifetime of our solar panel is over 25 years, the tempering glass can bear strong attack and atrocious weather.
3) Our key parts PHOCOS controller is IP68, completely waterproof.
4) We adopt durable deep cycle GEL battery, which have long lifespan and maintainance free.
5) The battery is protected by a special battery box with excellent heat dissipation and protechtion.
2. QUALITY CONTROL SYSTEM
1)Quality tracking system
Strict purchasing management ensuring- 100% good quality of raw material
2) Production management
3month compulsory pre-job traing Precise datarecording during production.
3) Supply chain management
Professional quality tracking system Applied in transporting and after-sale sevice.
3. Rich and Professional experience
We have finished more than 15000sets solar street light in the world, installed in Africa market, middle east, asia, Eropean etc.
We have enough design and install experience in every market in the world.
Please let me know your detailed requirements or your installation city for solar street lights, I will give you the only cost-effective quotation for solar street lights.
SUMMARY:
Please let me know your detailed requirements or your installation city for solar street lights, I will give you the only cost-effective quotation for solar street lights.

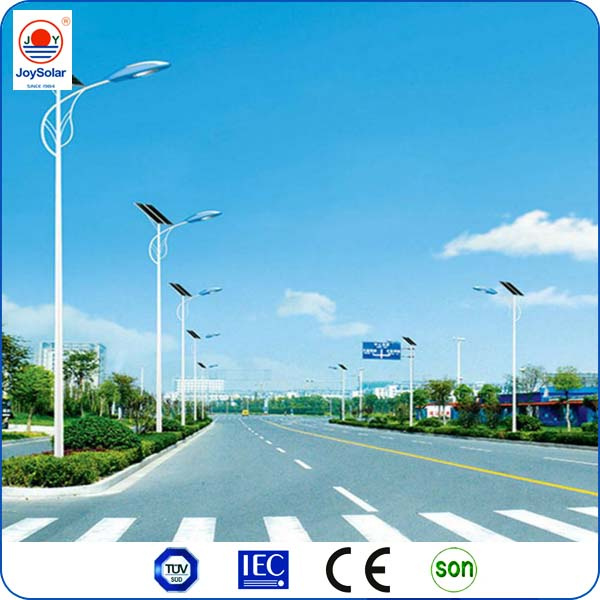

Solar operated street light system
**********************************************************************************************
Certificate of our product:
Company Picture:
Our company is estalbish in 1984 year.
Name |
Specification |
Quantity |
Parameter |
Solar panel |
280W/24V |
1 piece |
Polycrystalline solar cell, 156x156mm, 72 piece.
Vm: 36.145V,Im: 7.775A,Voc: 44.949V, Isc: 8.218A
Size: 1956x992x50mm with 90cm wires, MC4 Connector. and Weight:27KG
Warranty: More than 90% output power in 10 years .and more than 80% output power in 25 years.
The product have passed TUV, IEC, MCS etc certificate. |
Light source |
LED80W/24V |
1 piece |
Single Integrated Power LED(80W),Working Voltage DC24V,General luminous:8000lm,LED Luminous Efficiency:100lm/W,Center illuminance:25lx,Ra>80,Color temperature:2700-7000,Protection Grade :IP65,Working life≥50000hours.
Lamp shade is Die-casting molded with aluminum alloy,and its face is UV-resistant and corrosion resistant .
No bad glare; No Strobe; Start without delay .Low maintenance cost.
Production Size :720x320x172mm ,Weight :9.56KG
Packing Size:775x345x258mm,Weight :12.2KG |
Controller |
20A |
1 piece |
PHOCOS CIS Series,12V/24VAutomatic identification , light control and time control, Protection Grade IP68 |
Battery |
12V/150AH |
2 piece |
Gel Battery that dedicated to solar energy. For the solar energy street lamp that in simple circulatory system. And its advantage is that :the small self-discharge rate ,the better deep discharge, Top charge acceptance, large capacity, strong start in low ,the good shock resistant and Anti-temperature charge Production
Size: 483x170x240mm,Weight :44.5KG
Packing Size :506x193x290mm,Weight :46.4KG
The two Battery is used in series in this collocation |
Pole and other steel fitting |
10M |
Set |
Best steel Q235 or Q345; hot dip galvanized and powder coated.
Iron plate is rolled into type for one time.
Flange plate: 400x400x20mm
Square tube is assembled by bolt; any section is made with mold. With high efficiency and precision, standardized parts can replace each other and the same time increase the packing quantity and reduce transport cost.
Battery body are welded after 2mm plate stamping molding
Lamp arm 60x3mm Welded tube and iron plate welding |
Wires harness |
-- |
1 piece |
With the special connector, standardization, substitutability, high installing efficiency, saving cost.
Wire harness can be designed according to different lamp type . |
others |
Baseplate 20 steel rod ,standard component and so on |
Conditions |
Voltage of system: 24V,working time: 10 hours per day , Work temperature -20degree to 50degree |
Packing Quantity |
70set/40HQ |
